Summary of Contents for Motobility Solax Mobie Plus

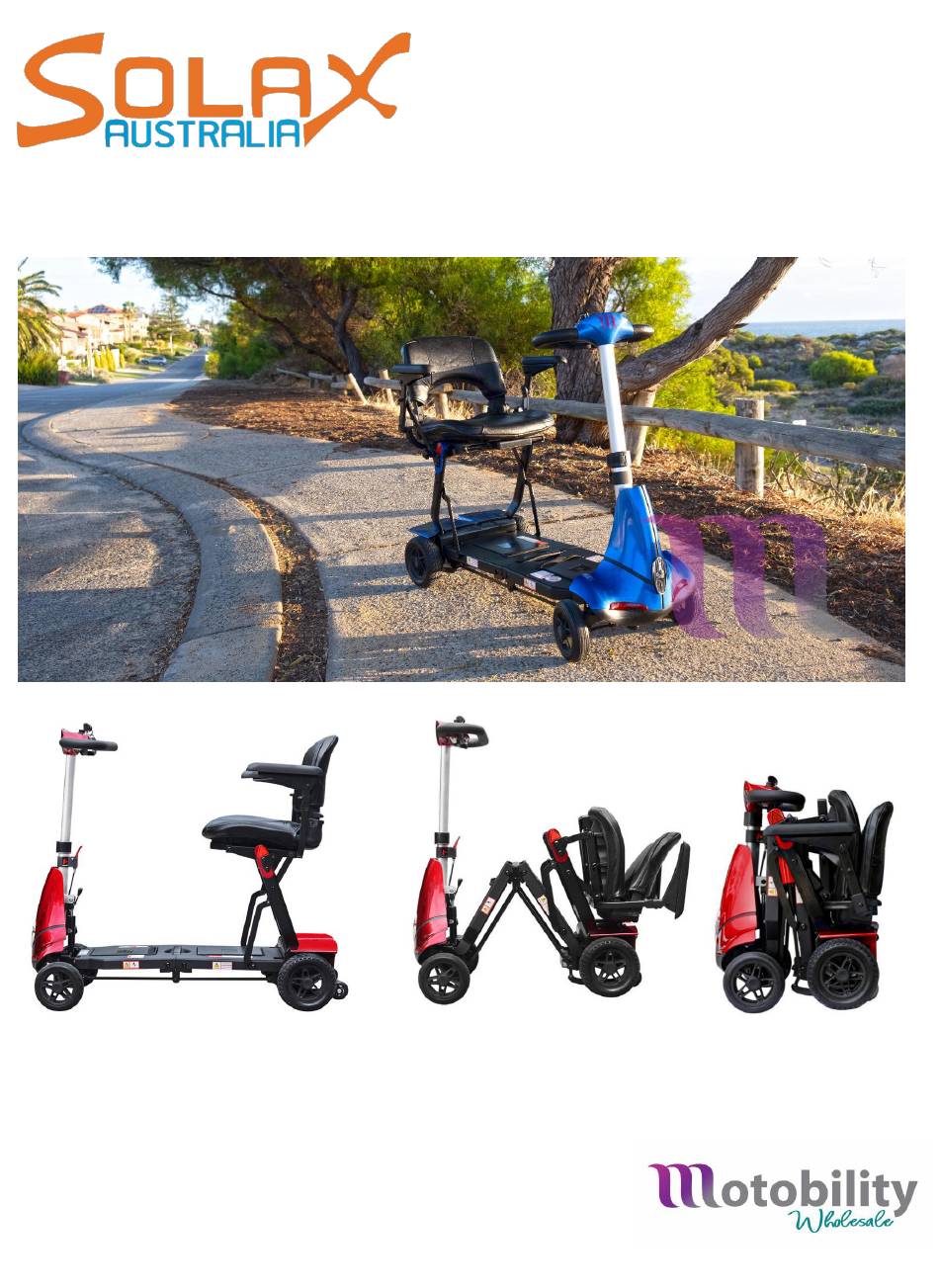

- Page 1 Solax Mobie Plus User Manual Proudly brought to you by...
- Page 2 Finally, we hope that your new Solax Mobie Plus will help you enjoy a more comfortable, convenient, and wonderful life. All the information and pictures contained in this manual are subject to the factory's products and are to be used only for...
-
Page 3: Table Of Contents
Table of Content Table of content......................................2 Features ......................................3 1.1 Main characteristics..................................4 Product specifications and relevant parameters..........................5 Main parts and relevant function..............................6 ...................................6 Control panel/dash 3.2 Key ignition .......................................6 3.3 Speed adjustment dial ..................................6 3.4 Power indicator....................................7 3.5 Direction control lever..................................7 3.6 Horn button ......................................7 3.7 Telescopic tiller.................................... -
Page 4: Features
1. Features Please refer to the diagram below to identify the different components of your scooter. Familiarise yourself with the terminology to better understand part references throughout the Owner’s Manual. Product images in the manual may vary slightly from the product received. -
Page 5: Main Characteristics
In conclusion, The Solax Mobie Plus is a unique scooter, that suits a large range of different users and will provide the user with the ability to access many places and enjoy more freedom in everyday life. -
Page 6: Product Specifications And Relevant Parameters
Product Specifications and Relevant Parameters Model Solax Mobie Plus (S3031) Maximum Product Size 930mm (L) x 450mm (W) x 865mm (H) 450mm (L) x 450mm (W) x 570mm (H) Product Minimum Size Seat Above Ground 560mm Seat Width 430mm 26.6kg... -
Page 7: Main Parts And Relevant Function
Main Parts and Relevant Function 3.1 Control Panel/Dash Fig.01 USB mobile phone charging port The Dash is the “control-center” of your Solax Mobie. It offers access to all the features and controls. It features Horn Key Ignition Speed adjustment dial ... -
Page 8: Power Indicator
3.4 Power Indicator (Fig.04) When the scooter is turned to the “on” position, your battery charge will show on the LCD display. As you use your scooter and your battery, the lights will snuff out, starting with the green bars on the right hand side. -
Page 9: Brake
3.9 Brake The Solax Mobie Plus has an electromagnetic break. This means that it engages automatically as soon as you let go of the tiller. Please see 3.10 to see how to disengage the brake. 3.10 Freewheel Lever When you need to move the scooter manually, you can flip the lever back to engage “free-wheel”... -
Page 10: Manual Folding & Unfolding
4 Manual Folding & Unfolding 4.1 Manual folding 4.2 Manual Unfolding... -
Page 11: Safety Requirements
5 Safety Requirements 5.1 Driving Surface and Tips The Solax Travel scooter range has been designed to be used on paved surfaces, such as carpet, well maintained footpath, shopping centers etc. However, it may also be used on other surfaces, such as grass or walkways in parks etc. -
Page 12: Battery And Battery Charging
6 Battery and Battery Charging This scooter is designed with a maintenance free, high quality Li-polymer (Lithium) battery. Please follow the below instructions to ensure a long lasting battery life. Charge the battery before the first operation. Avoid your battery to go flat/fully use it’s charge as this will damage the battery ... -
Page 13: Guide To A Safe And Long-Lasting Battery
6.2 Guide to a safe and long-lasting battery 6.2.1 How does the charger work? When the battery voltage is low, the battery charger outputs a large current to charge the battery. When battery voltage is close to full, the battery charger outputs a small current, this is known as a trickle feed. -
Page 14: How To Ensure The Battery Life
Please follow these steps to improve the battery performance 1. Fully charge the battery before first use 2. Use a low speed setting for the first use and don’t travel too far until you are familiar with the operation of your scooter. -
Page 15: Guidance And Manufacturer's Declaration - Electromagnetic Immunity
7. 2 Guidance and manufacturer's declaration - electromagnetic immunity The 4-Wheel Folding Scooter is intended for use in the electromagnetic environment specified below. The customer or the user of the 4-Wheel Folding Scooter should assure that it is used in such an environment. Immunity test IEC 60601 Compliance level... -
Page 16: Guidance And Manufacturer's Declaration - Electromagnetic Immunity
7.3 Guidance and manufacturer's declaration - electromagnetic immunity The 4-Wheel Folding Scooter is intended for use in the electromagnetic environment specified below. The customer or the user of the 4-Wheel Folding Scooter should assure that it is used in such an environment. Immunity test IEC 60601 Electromagnetic environment - guidance... -
Page 17: Portable And Mobile Rf Communications Equipment And The 4-Wheel Folding Scooter
7.4 portable and mobile RF communications equipment and the 4-Wheel Folding Scooter Recommended separation distances between portable and mobile RF communications equipment and the 4-Wheel Folding Scooter The 4-Wheel Folding Scooter is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. -
Page 18: Basic Troubleshooting
8. Basic Troubleshooting 8.1 Scooter not turning on Please check the key is inserted into the switch and turned to the on position Check it if the battery is fully charged, if not charge the battery until the charger light turns green ... - Page 19 Warranty Registration Card Purchase by Contact No. Email Address Shipping Address Solax Mobie Plus Model Serial No. Purchasing Date Warranty Period 12 months warranty from purchasing date Manufacturer Solax Technology Limited Importer wholesale@motobility.com.au Name of re- seller / Purchasing Store Please complete your Warranty registration card and email through a copy to wholesale@motobility.com.au...
- Page 20 The following symbols are found on the Scooter: Warning of Microwave Radiation Manufacturer Do not drive in rain or snowy weather Date of Manufacture keep loose clothing clear of the scooter Refer to The Instruction Manual Do not operate cell phones while the [:r;::ill] scooter is powered on.
