Delfield Shelleyspeed SPH-40 Specifications

SPH
Heated Module, 34" height, 30" depth
MODELS
❑ SPH-40 40" length, heated module, 34" height, 30" depth
❑ SPH-50 50" length, heated module, 34" height, 30" depth
❑ SPH-64
64" length, heated module, 34" height, 30" depth

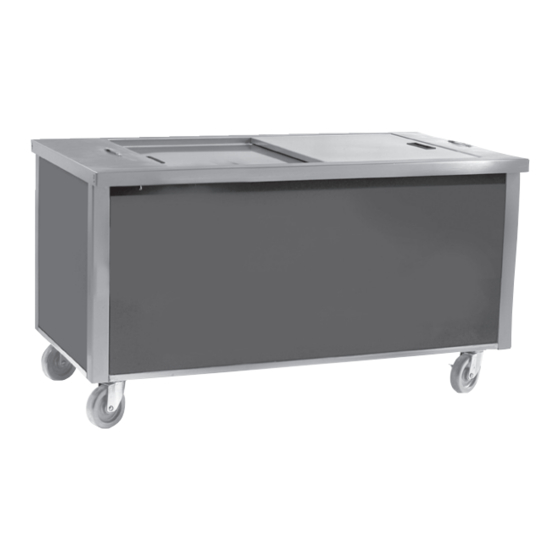

SPH-50
Unit shown without standard lid locking device
SPECIFICATIONS
Exterior: Exterior body is constructed of 18-gauge
stainless steel side panels or 18-gauge galvanized
reinforced laminate panels. 14-gauge galvanized
bottom. All exterior side panels are reinforced with
overlapping corners and are welded in place. All
insert cutouts are reinforced with 14-gauge galvanized
channel supports.
Exterior top is constructed of 14-gauge stainless steel,
welded, ground and polished into one integral unit.
Top is fabricated with square exterior corners with
fully hemmed nosing on operator and customer sides.
Stainless steel fully retractable interlocks are installed
on opposing corners and locks units into a complete
serving system.
Interior: Heated pan is 14" deep one-piece constructed
stainless steel tank. Louvered front and rear sides
are for re-circulated forced air heating. The tank is
separated from the top by a polycarbonate thermal
break keeping surface temperatures below 90 degrees.
STANDARD FEATURES
• 14-gauge stainless steel top standard
• 34" counter height, 30" depth
• 9' long cord and plug are supplied standard
• 18-gauge stainless steel exterior standard
• Electrical: 120 volt, 60 cycle, single phase
• Removable sliding lids (two per unit) standard
• Standard on 5" diameter polyurethane swivel casters
• Stainless steel fully retractable interlock provided as standard
• Basket rack system is standard
• A wide selection of laminate colors available at no additional
charge
• Laminate selection has 18-gauge galvanized base, 16-gauge
coved corner supports to protect laminate
• Stay cool surface: Top is designed to stay below 90˚,
making it safe to touch
• Fin style element maintains even heating temperatures
throughout the interior of the cabinet
• Meets NSF2, NSF4, UL and CEC standards
• One-year parts and 90 day labor standard warranty.
Additional warranties available
• Holds baskets size, 13.25" x 20.5" x 2.5" or
13.25" x 20.5" 4.75"
Entire tank is fully insulated with foamed in place high-
density polyurethane foam.
Heating System: Convected air type heating
system with squirrel cage blower and on/off switch.
Components include hi-limit protection circuit, (2) 900-
watt fin style heating elements and a night switch.
A stainless steel access panel is located in the bottom
of the unit allowing complete access to the heating
elements. The fan is accessible through the operator
side of the control panel. Units meet NSF 4 temperature
requirements.
Night switch is located on the operator side in the upper
right corner behind a spring-hinged cover. On/off
switch and adjustable range thermostat is located on the
operator side in a recessed panel with a hinged cover
plate.
Lids: Lids are constructed of stainless steel and are
insulated with polyurethane foam insulation. The lid
thickness is 3/4". Lid handle shall be black, recessed
980 S. Isabella Road Phone: 800-733-8948
Mt. Pleasant, MI 48858 Fax: 800-669-0619
www.delfield.com Email: info@delfield.com
Project __________________________
Item ____________________________
Quantity _________________________
CSI Section 11400
OPTIONS AND ACCESSORIES
❑ Single tier merchandiser (Unheated)
❑ Double tier merchandiser (Unheated)
❑ 16"x30" stainless steel drop tray shelf
Cash shelf
❑
Tray slides
❑
• V-style
• Tubular bar
❑ 2" Wire basket (13.25"x20.5"x2.5")
4" Wire basket (13.25"x20.5"x4.75")
❑
Decal package
❑
Canopy
❑
208 Volt electrical
❑
ABS. Lids are removable without the use of tools.
Stainless steel lid locking bar is standard. Bar has
locking handle at one end and mounts to clips, which
are bolted to the top of the cabinet. The locking bar
extends the length of the unit. Entire assembly can be
removed during the serving period.
Electrical: Electrical connections shall be 120 volt, 60
hertz, single phase. Unit shall have a 9' long electrical
cord and NEMA 5-30 plug. Cord is standard on the
operator right side of the equipment. Double cord hook
is located on the bottom of the unit.
Casters: Unit is mounted on 5" (12.7cm) diameter
swivel polyurethane casters with non-marking tires
and plate brakes. Casters are bolted directly to the
14-gauge bottom of the base. Overall height of caster
assembly is 6.00" (15.2cm).
Styling: Units are standard with 18-gauge stainless
steel exterior sides. Laminate is an option available at
no additional charge. Decal packages and canopies are
also available.
Approval _________________
Date____________________
