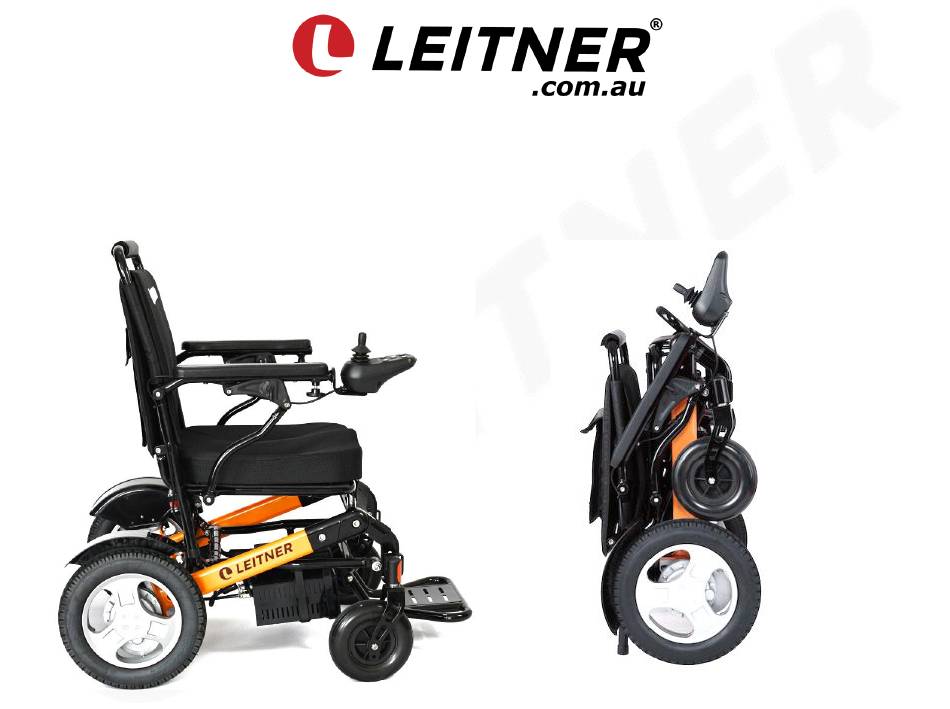

- Page 1 Leitner BILLI Electric Folding Wheelchair Manual © Leitner 2020...
- Page 2 • Before you start • Brakes • Using the joystick • Folding the chair • Strap • Seat cusion • Armrests • Backrest • Specifications • Installing the joystick • Moving the joystick to the left armrest © Leitner 2020...
- Page 3 Push handle. Remove to locate serial number Backrest with storage bag Joystick console Armrest Joystick release knob Cushion Shock absorption springs & Folding safety clamp Fender Foot rest Motor Rear wheel Front wheels Battery tray & Controller © Leitner 2020...
- Page 4 Read manual, Instructions and Terms carefully before use. It is the buyer’s responsibility to make sure the product is safe to use. If necessary ask for help at any good local mobility store. Please keep the invoice. By purchasing and using a product from Leitner, the customer accepts the terms and conditions and warranty published at www.leitner.com.au including www.leitner.com.au/terms-and-...
- Page 5 -riding an electric wheelchair can be a hazardous activity and therefore the product needs to be maintained properly and a safety check needs to be done before each ride. Using the wheelchair may result in injury or death in the case of accidents. Leitner does not assume any liability, including injury or property damage to the extent permitted by the law.
- Page 6 Back-rest and seat cushion need to be attached safely to the wheelchair. Foot-rest and small bag under wheelchair need to be installed correctly. Contact 1300 856 725 or sales@leitner.com.au for any questions © Leitner 2020...
- Page 7 Battery capacity naturally declines over time and is warranted to be at least 80% capacity within 1 year of purchase. Always handle carefully with 2 hands. If errors occur, stop using battery, consult manual or contact customer service. Discard batteries according to your local battery disposal guidelines. © Leitner 2020...
- Page 8 Images for illustration only, actual product may vary. Assembly instructions Please refer to the assembly instructions below. When unpacking the wheelchair take care not damage any parts. If removing the packaging with scissors or a paper knife, make sure not to scratch the wheelchair. © Leitner 2020...
- Page 9 We will then work with you on a solution. If there are any missing parts please also let us know immediately and we will send a replacement part as soon as possible. Call 1300 856 725 or email sales@leitner.com.au © Leitner 2020...
- Page 10 Large image of the left brake lever. Push the lever down in the direction of Push the lever up in the direction of the red arrow above to release the the red arrow above to activate the brake. brake. © Leitner 2020...
- Page 11 Only release brakes on flat and even surfaces. Do not release brakes on inclines or declines. Pushing the wheelchair manually may be harder as compared to pushing a non motorized wheelchair due to drag of the motors in the rear wheels. © Leitner 2020...
- Page 12 Velcro and can be removed by simply lifting it up (direction of arrow). Fold the chair slowly and carefully. Make sure the batteries will not fall out accidentally during folding. Caution! Pinching hazard. Take care not to injure yourself while folding the chair. © Leitner 2020...
- Page 13 Check that locked if the wheelchair Warning: Do not occupy the wheelchair is occupied. The lock wheelchair if the clamp is locked, stable and safe holds the wheelchair released! before occupying. together and prevents it from folding . © Leitner 2020...
- Page 14 (Please note this illustration reduce the size further (refer to shows the wheelchair with the seat cushion. instructions elsewhere in this manual). Please remove the seat cushion before folding as it may be in the way). © Leitner 2020...
- Page 15 The COVER of the cushion is (arrows). Make sure the lower removable and washable ( up to 80 part of the back-rest is attached degrees). to the Velcro at the back of the seat (red rectangle) © Leitner 2020...
- Page 16 (V). View from the front: First make sure that the lower part of the back-rest is attached to the back of the seat (red rectangle). Then, attach front part of backrest padding to the Velcro (arrows). © Leitner 2020...
- Page 17 Correctly installed backrest (rear view). Correctly installed backrest (front view). Make sure the backrest is installed safely before use. © Leitner 2020...
- Page 18 Align the joystick console with the opening on the right hand side armrest as shown in the picture above and insert it into the armrest tube (direction of red arrow). Turn the knob (K) anti-clockwise until the joystick console is installed safely and won’t move. © Leitner 2020...
- Page 19 After connecting the wires, move the barrel (arrow) to the centre and turn it in the direction of the arrow. This will lock the two cables in place and prevent them from disconnecting by accident. Adjust the wire slack so that the wire is not in the way while operating the wheelchair. © Leitner 2020...
- Page 20 Unscrew the knob (K) by hand from the right armrest and screw it into the same socket on the left armrest. Use a screwdriver to remove the screw (arrow) witch holds the black cable latch (L) on the right armrest. © Leitner 2020...
- Page 21 It shouldn't be too tight as it may damage the cable when folding. The cable should also not touch any wheels or the ground. If you need help please contact us or ask your local mobility shop for assistance. © Leitner 2020...
- Page 22 When folding the wheelchair for the first time, do so slowly and carefully, to make sure the cable is not stretched too much. If it’s stretched, adjust cable tension until the wheelchair can be folded safely. © Leitner 2020...
- Page 23 (red arrows). Grab battery at inserted into the battery tray if won’t fall out. Do not use handle (red arrows) and gently pull they are in the right orientation. force. battery towards the front of the chair. © Leitner 2020...
- Page 24 It is recommend to store the batteries fully charged and then charge it every two months. It is not necessary to leave the charger connected to the battery if stored for long periods. Just top the charge up every two months. © Leitner 2020...
- Page 25 Warning: the charger may get very hot. Always keep charger away from any materials which can catch fire. The charger is intelligent and will stop charging once the battery is full. Red light on charger: charging. Green light on charger: fully charged (or not connected). © Leitner 2020...
- Page 26 Display of top speed is not much space and increase top speed level. The more bars on where precise (maximum speed is the display, the higher navigation is needed. about km/h, the top speed. walking speed). © Leitner 2020...
- Page 27 Start using the joystick at low speed levels and only push it gently. © Leitner 2020...
- Page 28 Do not use unless you have consulted a professional first how to use straps on wheelchairs. Use the latch (circle) to adjust length (approximately from 82cm to 144cm length). Push both ends together in the directions of the arrows to close the strap. © Leitner 2020...
- Page 29 (red circle). Left armrest shown in picture. Only move the the When flipping the armrest which has thejoystick wheelchair with locked armrests. installed, make sure the wires are not damaged. © Leitner 2020...
- Page 30 Flip armrest up by pushing it in the The left armrest is flipped up. The right direction of the red arrow. armrest has the same flipping mechanism. To flip it down, follow steps in reverse and make sure the armrests are locked safely. © Leitner 2020...
- Page 31 - flip-up footrest. clearance from ground 6cm, slightly angled upwards -footrest dimensions: 17cm deep, 18cm wide (back), 33cm wide (front), trapeze shape -1 year warranty for motor, batteries, and controller for manufacturer's fault -2 year warranty for frame for manufacturer's fault © Leitner 2020...
- Page 32 Trouble-shooting If the wheelchair does not operate as intended, the lights on the joystick console may flash pointing to the cause of the fault as described below: First red light flashing: indicates the battery is not fully inserted. Second red light flashing: indicates the joystick is not connected properly. Third red light flashing: indicates the wheelchair is charging.
- Page 33 If you need any assistance, please contact us on sales@leitner.com.au or 1300 856 Enjoy your lightweight folding electric wheelchair ☺ © Leitner 2020...
