Summary of Contents for Eddyfi Technologies INUKTUN Spectrum 45
- Page 1 Eddyfi Robotics Inc. 2569 Kenworth Road, Suite C Nanaimo, BC, V9T 3M4 CANADA +1.250.729.8080 info@eddyfitechnologies.com www.eddyfitechnologies.com...
-
Page 2: Table Of Contents
Spectrum 45™ Camera Table of Contents About this Manual ............................4 Description ..............................4 Specifications ............................5 Certification ............................... 6 Connector Pin-Out ............................ 6 Safety ................................ 7 System Setup ..............................8 Unpacking Components ........................... 8 Mounting the Camera ..........................8 Galvanic Corrosion Control ........................ - Page 3 Spectrum 45™ Camera Warranty Repairs ............................ 15 Factory Returns to Canada ........................15 Product/System Drawing Package Availability ..................15 Limited Warranty Policy ..........................16 Document: UMAA007219.docm Revision: A14 Created by: PV Date: 08 Dec 2019 IPN: 3041015-A14 Source Location: C:\ePDM\ISLEng\products\aa-spectrum45\manuals\UMAA007219.docm Page 3 of 16...
-
Page 4: About This Manual

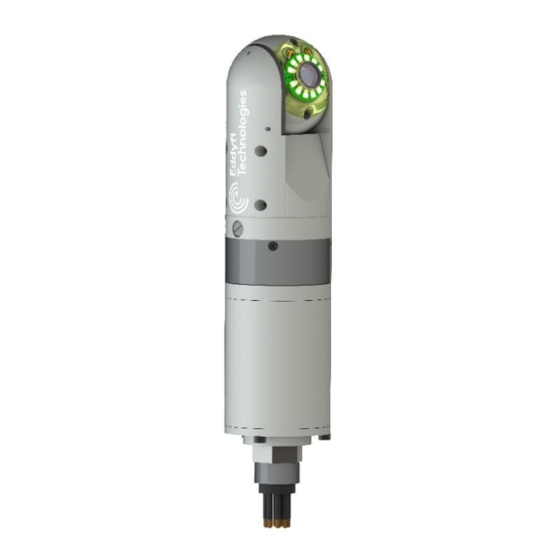

This manual copyright © 2019 by Eddyfi Robotics Inc. All rights reserved. Description The Inuktun Spectrum 45™ (SP45) camera is an industrial video camera system for use in pipe inspection systems, harsh industrial environments and underwater. Standard features include focus, pan, tilt and a 150 m (500 ft) depth rating. -
Page 5: Specifications
Spectrum 45™ Camera Specifications 36 – 70 VDC Operating Voltage Operating Power 10 W Peak Operating Current 280 mA Peak Depth Rating 150 m (500 ft) 0 – 18 °/s Speed 0 – 35 °/s Tilt 360 ° Continuous Range Tilt 280 °... -
Page 6: Certification
Spectrum 45™ Camera Certification The product is built in accordance with: Machinery Directive 2006/42/EC, and Electromagnetic Compatibility Directive 2004/108/EC and Directive 2014/30/EU Connector Pin-Out The Spectrum 45™ connects to power and communications through a Subconn MCBH8M connector on the back of the camera. Some versions have an Impulse connector – contact the factory if a pin-out is required. -
Page 7: Safety
• Eddyfi Technologies equipment is used in many varied environments from hot/dry to confined spaces to deep underwater. Such diverse environment risks must be addressed by the operators who are trained to work in such surroundings. As such, the operator is responsible to determine safe site setup and appropriate procedures for operation and maintenance of the equipment. -
Page 8: System Setup
Mounting the Camera The Spectrum 45 camera may come installed on an Eddyfi Technologies robotic vehicle using 3x SS M3 SHCS. The camera may be mounted in any orientation. For custom mounting, the rear end cap has three clearance holes for M3 screws and the tube has three M3 tapped holes to be used for a custom-made mounting bracket –... -
Page 9: Galvanic Corrosion Control
Spectrum 45™ Camera Galvanic Corrosion Control Eddyfi Technologies strongly recommends stainless steel cameras for salt water environments or other corrosive environments. The camera warranty is conditional when aluminum body cameras are deployed in these kinds of applications. Cathodic protection is required whenever the camera is being deployed in a salt water environment –... -
Page 10: Connector Handling
Spectrum 45™ Camera Connector Handling Connectors are an essential part of system reliability. They should be properly maintained and cared for to ensure long life and reliability. It is recommended to follow these steps to help prevent damage and increase the life of connectors. •... -
Page 11: Operation
Spectrum 45™ Camera Operation Pre-Operations Check A Pre-Operations check should to be carried out prior to every camera mission. 1. Visually inspect the camera to ensure that there is nothing jamming the movement. 2. Check the camera cable for cuts, tears, etc. 3. -
Page 12: Troubleshooting
Spectrum 45™ Camera Troubleshooting Camera Control Problems 1. Not all the auxiliary lights are on. • The ICON™ software allows the lights to be controlled independently. Ensure all lights are enabled. Refer to the ICON interface manual. • Inspect for blown LEDs. CAUTION: High Intensity. -
Page 13: Maintenance
When seals are removed or replaced the sealing surfaces and seals must be clean and sufficiently lubricated before installation. To re-certify a camera’s depth rating we recommend the camera be serviced at Eddyfi Technologies in- house service centre. -
Page 14: Parts And Repairs
2569 Kenworth Road, Suite C Nanaimo, BC, V9T 3M4 CANADA TF 1.877.468.5886 T +1.250.729.8080 info@eddyfi.com www.eddyfitechnologies.com Eddyfi Technologies – US (American Authorized Distributor and Service Centre) 812 W 13th Street Deer Park, TX, 77536 T +1.281.542.3292 info@eddyfi.com www.eddyfitechnologies.com Document: UMAA007219.docm... - Page 15 Warranty claims must return to the factory for evaluation. To return an item for evaluation or repair, first contact Eddyfi Technologies at our toll-free number or e- mail address. Eddyfi Technologies will supply a Return Merchandise Authorization (RMA) number with detailed shipping and customs instructions.
- Page 16 The foregoing constitutes the sole and exclusive remedy of the purchaser and the exclusive liability of Eddyfi Technologies and is in lieu of any and all other warranties, express, implied or statutory as to merchantability, fitness for purpose sold, description, quality productiveness, or any other matter. Under no circumstances shall Eddyfi Technologies be liable for special, incidental or consequential damages, or for delay in performance of this warranty.
