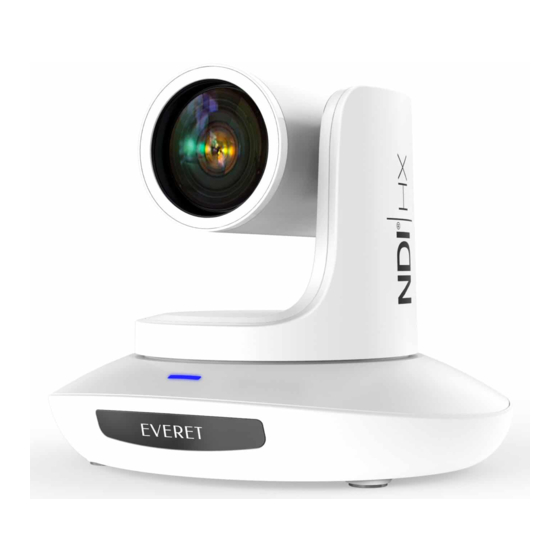

Everet EVP212N User Manual

12x ndi fhd ptz video camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

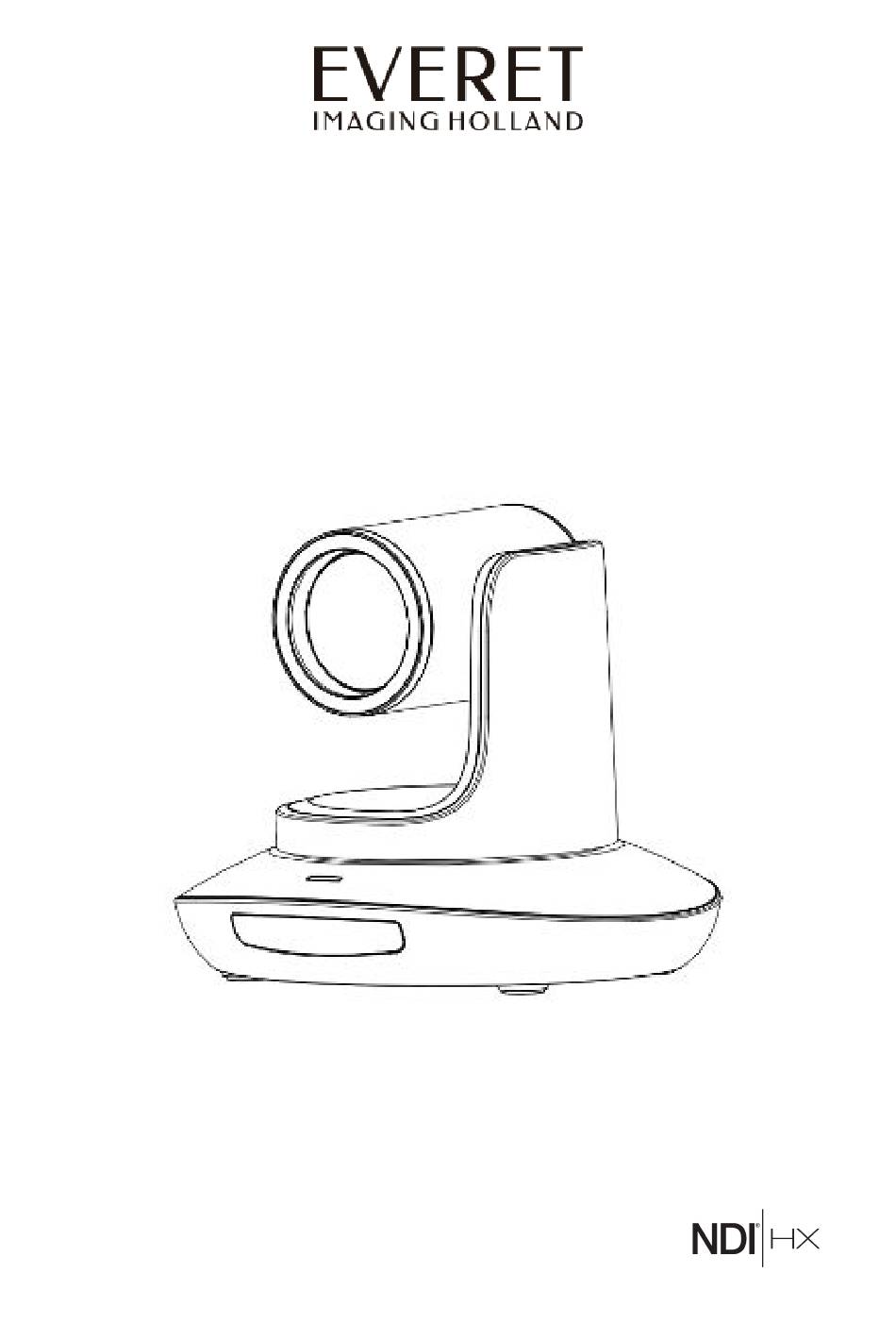

EVERET EVP212N
12x NDI FHD PTZ Video Camera
User Manual


Version V1.0
（English)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EVP212N and is the answer not in the manual?

Questions and answers

Related Manuals for Everet EVP212N

Summary of Contents for Everet EVP212N

  • Page 1 EVERET EVP212N 12x NDI FHD PTZ Video Camera  User Manual      Version V1.0  （English) ...

  • Page 2: Table Of Contents

    CONTENT    SAFETY GUIDES 2  PACKING LIST 3  QUICK START 3  1. Check all cable connections before power on. 3  2. Dial Switch Settings (at the bottom of the camera) 4  PRODUCT HIGHLIGHTS 5  TECHNICAL SPECIFICATIONS 6  CAMERA INTERFACE 8  CAMERA DIMENSIONS 8 ...

  • Page 3: Safety Guides

    Avoid stress, vibration and damp during transportation, storage and installation.    Do not detatch the camera housing and cover. For any service, please contact authorized    Everet technicians.  Video cable and control cable should be individually shielded, and cannot be substituted    with other cables. ...

  • Page 4: Packing List

    PACKING LIST  Check all bellow items when open the package:    Camera  1  Power Adapter  1  Power Cable  1  RS232 Control Cable  1  USB 3.0 Cable  1  Remote Controller  1    QUICK START   Check all cable connections before power on.    ...

  • Page 5: Dial Switch Settings (At The Bottom Of The Camera)

    2.  Dial Switch Settings (at the bottom of the camera)  Dial Switch（ARM）     SW-1  SW-2  Instruction  1  OFF  OFF  Updating mode  2  ON  OFF  Debugging mode  3  OFF  ON  Undefined  4  ON  ON  Working mode  Dial Switch     SW-3  SW-4  Instruction ...

  • Page 6: Product Highlights

    3  OFF  ON  Updating mode  4  ON  ON  Undefined  PRODUCT HIGHLIGHTS   ● Panasonic 1/2.8 inch 5MP sensor providing 1080P60 full HD video  ● Wide angle optical lens 72.5 degree field of view, 12x optical zoom, 2x digital zoom  ● NDI|HX, HDMI, 3G-SDI, USB video outputs interface  ●...

  • Page 7: Technical Specifications

    TECHNICAL SPECIFICATIONS   Video Format  HDMI  1920*1080P60/50/30/25/59.94/29.97/24  (v1.4)  1920*1080i60/50/59.94  1280*720P60/50/30/25/59.94/29.97  SDI  1920*1080P60/50/30/25/59.94/29.97/24  1920*1080I60/50/59.94  1280*720P60/50/30/25/59.94/29.97  USB  1920*1080P60/50/30/25（USB3.0）  1280*720P60/50/30（USB3.0）  1280*720P25（USB3.0&USB2.0）  1024*576P30（USB3.0&USB2.0）  960*540P30（USB2.0）  640*360P30（USB2.0） 512*288P30（USB2.0）  NDI  1920*1080@3~60,  1280*720@3~60,  1024*576@3~60,  640*360@30 (low bandwidth mode)  IP  Main Stream: 1920*1080@3~60, 1280*720@3~60,  1024*576@3~60;  Sub Stream: 1280*720@3~60, 1024*576@3~60, 640*360@3~60.  Video Interface ...
  • Page 8 Video Bit Rate  1024Kbps~16384Kbps  IP Protocol  TCP/IP, HTTP, RTSP, DHCP ,RTMP, Onvif(2.4), NDI(V4.0)  Visca over IP(TCP&UDP), HTML5, Visca, Pelco P, Pelco D  POE  Supported  Daisy Chain  Support RS232 serial daisy chain  Minimum Lux  0.1 lux  White Balance  Auto/Indoor/Outdoor/Manual/Auto/Sodium Lamp Auto/Sodium Lamp  Exposure ...

  • Page 9: Camera Interface

    CAMERA INTERFACE​     1.Camera Lens    6. Tripod Screw Hole  10. HDMI port  2.Camera Base  7. Installation Hole   11.3G-SDI port  3.IR Receiver Panel  8. RS232 control port (input)  12, USB port  4.Power Indicator Light    9. RS232 control port(output)  13, RJ45 port (IP&NDI) ...

  • Page 10: Ir Remote Controller

    POWER  Under normal working mode, short press  IR REMOTE CONTROLLER   POWER key, to enter standby mode;  Press it again, the camera will do  self-configuration, then go back to HOME  position.  It will go to preset position if power on model  has been set before. ...
  • Page 11 FOCUS KEY ( ON THE LEFT)  Manual focus, only valid under manual focus  model.  ZOOM KEY( ON THE RIGHT SIDE)  Set the zoom rate  NAVIGATE KEY: UP/DOWN/LEFT/RIGHT  Under working mode, use navigate key to set  the pan tilt, and select menu when enter OSD.  OK /HOME KEY ...

  • Page 12: Visca In（Rs232 Port)

      VISCA IN（RS232 PORT) No.  V_IN  V_OUT    1  DTR  DTR  2  DSR  DSR  3  TXD  TXD  4  GND  GND  5  RXD  RXD  6  A    7  IR OUT    8  B    VISCA IN  RS485  6  A (+)  7  IR OUT ...
  • Page 13 VISCA NETWORK SETUP:    SERIAL PORT CONFIGURATION:   Parameter  Value  Parameter  Value  Baud rate  2400/4800/9600/115 Stop Bit  1bit  200  Start Bit  1 bit  Check Bit  None  Date Bit  8 bit        12  WWW.EVERETIMAGING.COM ...

  • Page 14: Visca Protocol

    VISCA PROTOCOL   PART1 CAMERA RETURN COMMAND  Ack / Completion Message     Command  Note  Packet  ACK  z0 41 FF  Returned when the command is accepted.  Completion  z0 51 FF  Returned when the command has been executed.  z = camera address+8   ...
  • Page 15 ~0x4000(tele)) 　 Stop 8x 01 04 08 00 FF CAM_Focus Far(Standard) 8x 01 04 08 02 FF Near(Standard) 8x 01 04 08 03 FF Far (Variable) 81 01 04 08 2p FF p=0 (Low) to 7 (High) Near (Variable) 81 01 04 08 3p FF p=0 (Low) to 7 (High) Direct 8x 01 04 48 0p 0q 0r 0s FF...
  • Page 16 Direct 8x 01 04 44 00 00 0p 0q FF pq: B Gain (0-0xFF) Full Auto 81 01 04 39 00 FF Automatic Exposure mode CAM_AE Manual 81 01 04 39 03 FF Manual Control mode Shutter Priority 81 01 04 39 0A FF Shutter Priority Automatic Exposure mode Iris Priority...
  • Page 17 8x 01 04 33 03 FF BackLight Off CAM_Sharpness Reset 8x 01 04 02 00 FF Aperture Control 8x 01 04 02 02 FF Down 8x 01 04 02 03 FF Direct 8x 01 04 42 00 00 0p 0q FF pq: Aperture Gain (0~0x0F) CAM_Memory(preset) Reset...
  • Page 18 60HZ 81 01 04 23 02 FF 81 01 04 23 00 FF VideoSystem 8x 01 06 35 00 pp FF pp: Video format Set(factory) 1080P60 0x00 1080P50 0x01 1080I60 0x02 1080I50 0x03 1080P30 0x 04 1080P25 0x05 720P60 0x 06 720P50 0x07 720P30...
  • Page 19 Frame Rate 8x 01 04 C2 03 0p 0q FF Frame rate:0xpq (3~60) 8x 01 04 C2 04 0p 0q FF IDR Setting:0xpq (3~120) 8x 01 04 C2 05 0p 0q FF Contor mode:0xpq StreamRateMode 0x00:CBR 0x01:VBR Substream resolution 8x 01 04 C3 00 0p 0q 0r 0s 0m 0n 0x 0y pqrs : Column(x size) mnxy: Line (y size) only support:...

  • Page 20: Part3 Camera Control Command

    Menu Ok 8x 01 7E 01 02 00 01 FF Menu ok IR_Receive 8x 01 06 08 02 FF IR(remote commander)receive ON/OFF 8x 01 06 08 03 FF On/Off 8x 01 06 08 10 FF Pan_tiltDrive 8x 01 06 01 VV WW 03 01 FF VV: Pan speed 0x01 (low speed) to 0x18 (high speed) WW: Tilt speed 0x01 (low speed) to...
  • Page 21 y0 50 03 FF Off(Standby) CAM_ZoomPosInq 8x 09 04 47 FF y0 50 0p 0q 0r 0s FF pqrs: Zoom Position CAM_SpeedByZoomInq 8x 09 06 A0 FF y0 50 0p FF p 2: ON 3: OFF CAM_PTSpeedInq(IR) 8x 09 04 C1 FF y0 50 pp FF pp: 0x05~0x18 CAM_ZoomSpeedInq(IR)
  • Page 22 y0 50 03 FF CAM_WDRPosInq 8x 09 04 D3 FF y0 50 0p FF p: WDR Position CAM_ApertureInq 8x 09 04 42 FF y0 50 00 00 0p 0q FF pq: Aperture Gain CAM_PresetExistInq 8x 09 04 3F pp FF y0 50 0q FF pp: Memory number q: 1=preset exist...

  • Page 23: Visca Pan Tilt Absolute Position Value

    pqrs : Column(x size) MainstreamResolutionInq 8x 09 04 C2 00 FF y0 50 0p 0q 0r 0s 0m 0n 0x 0y FF mnxy: Line (y size) only support: 1920*1080 ​ 、 ​ 1 280*720​ 、 1024*576 MainstreamRateInq 8x 09 04 C2 01 FF y0 50 0p 0q 0r 0s 0m 0n 0x 0y FF pqrsmnxy: bitrate (1024~16384) MainEncodeModeInq...

  • Page 24: Visca Pan Tilt Speed Value

    0x0798 0x0990    VISCA PAN TILT SPEED VALUE  Pan(Degree/Second) Pan(Degree/Second)) PELCO-D PROTOCOL COMMAND LIST     Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 0xFF Address 0x00 0x08 Pan Speed Tilt Speed 23  WWW.EVERETIMAGING.COM ...

  • Page 25: Pelco-P Protocol Command List

    Down 0xFF Address 0x00 0x10 Pan Speed Tilt Speed Left 0xFF Address 0x00 0x04 Pan Speed Tilt Speed Right 0xFF Address 0x00 0x02 Pan Speed Tilt Speed Upleft 0xFF Address 0x00 0x0C Pan Speed Tilt Speed Upright 0xFF Address 0x00 0x0A Pan Speed Tilt Speed...
  • Page 26 Down 0Xa0 Address 0x00 0x10 Pan Speed Tilt Speed 0Xaf Left 0Xa0 Address 0x00 0x04 Pan Speed Tilt Speed 0Xaf Right 0Xa0 Address 0x00 0x02 Pan Speed Tilt Speed 0Xaf UpLeft 0Xa0 Address 0x00 0x0C Pan Speed Tilt Speed 0Xaf UpRight 0Xa0 Address...

  • Page 27: Osd Menu

    O SD MENU   ​ 1. Press the MENU key on the IR remote controller, to enter the OSD menu as bellow:      2. After enter the main menu, use the navigate UP/DOWN key to select the main menu. Once selected,  the main menu will change to blue background, and the right side will show all sub menu options. ...
  • Page 28 Default​ ： ​ 8 BRIGHT Bright setting:0~15, only valid under bright priority mode. Default​ ： ​ O FF ON/OFF Default​ ： ​ 1 WDR Level WDR Level Default​ ： ​ O FF ON/OFF    Default​ ： ​ A TW IMAGE WB MODE AUTO,INDOOR,OUTDOOR,MANUAL,PUSH,SODIUM LAMP AUTO, SODIUM LAMP...
  • Page 29 1080P30 720P60 1080P25 720P50 1080P59.94 720P30 1080P29.97 720P25 1080P24 720P59.94 1080I60 720P29.97 DHCP ON/OFF Using up/down/left/right navigation button to select item to set, and using number button to set parameter. Press menu button to 192.168.001.188 return. MASK 255.255.255.000 GW (Gateway) 192.168.001.001 MAIN Stream 1920*1080 1280*720...

  • Page 30: Uvc Control

      UVC CONTROL   1. Only run the client software after the USB3.0 camera has completed self-configuration (the LED will  light up in blue, no flashing)  2. Make sure the USB3.0 camera is recognized by the PC Device Manager.  3. Make sure the interval of video format switching is more than 3 seconds.  4.
  • Page 31     2. Parameter Setting  Click “Setting” to enter into the settings interface as following:         Video Encode:​ set image encode mode, main stream and sub stream resolution/bit rate/frame rate,  bit rate control way, and I-frame interval etc as above image   ...
  • Page 32     RTMP  Enable RTMP streaming for e.g. YouTube or Facebook or any other RTMP address, if needed combine  with [RTMP adress ]\yourstreamingkey     NDI  Enable NDI video transmission will activate NDI for the camera        Image Adjust​ : to set focus, exposure, white balance, image, image quality, noise-reduction   ...
  • Page 33     Exposure​ includes exposure mode, shutter speed, gain, iris, brightness, and anti-flicker.         White Balance​ includes white balance mode, red gain, blue gain​   Image​ includes mirror, flip, backlight compensation, Gamma, WDR(wide dynamic range).         ...
  • Page 34 Image Setting​ includes brightness, sharpness, contrast, saturation        Noise reduction​ includes 2D/3D reduction. There is an on/off option for 2D, and off/auto/1~4 options.         Ethernet​ includes DHCP mode, IP address, subnet mask, default gateway, http port, web port, main  stream port, sub stream port. ...
  • Page 35     Click “upgrade” to start the upgrade process. Only use upgrade files from everet.eu support website.      DO NOT power off ​ o r other actions during the upgrade process, reboot the camera when the upgrade  is finished.  ...
  • Page 36 Account Setting​ : is used for setting your camera account and password  First Input the accountname, then input password twice, click ok to finish settings.    Please remember account and password, otherwise you are not able to login.       ...

  • Page 37: Getting Started With Ndi

      NDI is registered trademark of NewTek, Inc. Getting started with Everet Pro Grade PTZ cameras with NDI® is equivalent to adding connected  devices to your network. Simplifying setup for live streaming systems Everet supports PoE, high  quality 4K video, tally and control using a standard gigabit enabled network and native integration of ...

  • Page 38: Visca Over Ip

    require setting permissions for what channels are available, what groups can access those channels,  configuring private or public channels, or accessing channels on other networks.    VISCA OVER IP  VISCA over IP means VISCA protocol over IP, to reduce RS232/RS485 cable layout (the controller must  support VISCA over IP) ...
  • Page 39 It means ACK, complete message, reply or error reply, sent from peripheral equipment to controller.  Command format  Enclosed is the message head and message format.        Payload type:  Data definition as specified:   Name  Value (Byte  Value (Byte  Value (Byte 0) ...
  • Page 40   Byte 2 : 0x00  Byte 3 : 0x10  Controller will save sequence number of each command, when one command sent, the sequence  number of the command will add 1, when the sequence number becomes the max value, it will  change to 0 for next time.
  • Page 41 If controller shows it is overtime, resend the commands to check peripheral’s status. The resent  command sequence number is same as last command, the following chart will list the received  message and status after resending the commands.          ...
