- Page 1 CT-53 3000 A Flexible 3-Sensor Current Transducer Instruction Manual Manual de usuario Manuel de l’utilisateur ...
-
Page 3: 3000 A Flexible 3-Sensor Current Transducer
CT-53 3000 A Flexible 3-Sensor Current Transducer Instruction Manual 11/2015, 6006998 A ©2015 Amprobe. All rights reserved. Printed in Japan... - Page 4 Amprobe Service Center (see address below). Non-warranty Repairs and Replacement – United States and Canada Non-warranty repairs in the United States and Canada should be sent to an Amprobe Service Center. Call Amprobe or inquire at your point of purchase for current repair and replacement rates.
-
Page 5: Table Of Contents
CT-53 3000 A Flexible 3-Sensor Current Transducer CONTENTS INTRODUCING THE CT-53 ................. 2 SYMBOL ......................4 SAFETY INFORMATION ..................4 MEASUREMENTS ....................5 MAINTENANCE ....................8 SPECIFICATIONS ....................8... -
Page 6: Introducing The Ct-53

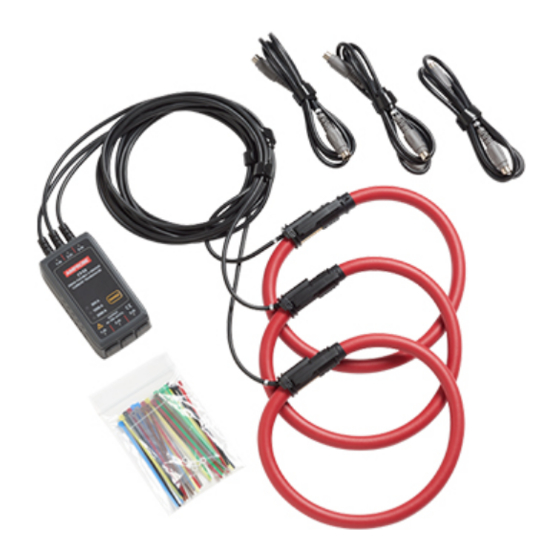

IntroducIng the ct-53 The CT-53 Flexible 3-Sensor Current Transducer is an optional accessory that is used to measure current up to 3000A on the Amprobe DM-5 Power Quality Analyzer. The flexible and light weight measuring head is ideal for current measurement on thick and hard to reach conductors without breaking the circuit. - Page 7 Pins of output terminal Match the mark under CH No. mark on the Output Cable and connect the Cable. Output signal Output Connector ② 2.7~5.5V ① ③ ④ COM(Output(-)) ⑤ Power supply ⑥ Output(+) Output Terminal ① ② 2.7~5.5V ④ ③...
-
Page 8: Symbol
SYMBoLS Do not apply around, or remove from, HAZARDOUS LIVE conductors. Caution! Risk of electric shock. Caution! Refer to the explanation in this manual. Alternating current (AC). The equipment is protected by double insulation or reinforced insulation. Underwriters Laboratories (applies to Canada and U.S.A.) Complies with European directives. -
Page 9: Measurements
• De-energize the installation on which current will be measured or adopt safe operating procedures during application and removal of the current transducer. • Disconnect CT-53 from DM-5 by removing CT-53 output terminal plug. Do not pull CT-53 output cable. - Page 10 Ac current: 1. Connect CT-53 output terminals to DM-5 current input terminals (A1, A2, A3). Observe the arrow marks for correct connection. 2. Power on DM-5 (unit auto-detects the current transducer connected). 3. Unlock the flexible measuring head according to the followings:...
- Page 11 4. Connect the flexible measuring head around the conductor. 5. Make sure the arrow marked on the measuring head coupling points towards the current flowing direction of the conductor, and position the conductor under test as shown below. Note 2 Source Load Note 1...
-
Page 12: Maintenance
The flexible current transducer and its latching system require no special care. Ensure that no foreign object obstructs the latching mechanism. Clean the CT-53 with a damp cloth and a mild detergent. Do not use abrasives, solvents, or alcohol. If ct-53 does not perform properly, use the following steps to help isolate the problem: • Inspect the coupling system for any damage. - Page 13 Working voltage 600 Vac rms Max allowed input 3600 Aac continuous (45 Hz to 65 Hz) Possible measurable Max. Ø150 mm (5.9 in) (accuracy error not conductor size specified) head circumference 550 mm (21.65 in) head cable diameter 14.3 mm (0.56 in) cable length (head Approx.
- Page 14 Visit www.Amprobe.com for • Catalog • Application notes • Product specifications • User manuals Amprobe ® www.Amprobe.com info@amprobe.com Everett, WA 98203 Please Tel: 877-AMPROBE (267-7623) Recycle...
