JOHN BLUE SMPT-OSA 1 / 4 Installation And Operation Manual

Visagage orifice selector
Hide thumbs

Advertisement

Table of Contents

WARNING: USE OF THIS PRODUCT FOR ANY PURPOSES OTHER THAN ITS ORIGINAL INTENT, ABUSE OF THE PRODUCT, AND/OR MODIFICATION
TO THE ORIGINAL PRODUCT IS STRICTLY PROHIBITED BY JOHN BLUE COMPANY. JOHN BLUE COMPANY RESERVES THE RIGHT TO DENY
WARR ANTY OR LIABILITY CLAIMS IN ANY/ALL SITUATIONS INVOLVING MISUSE, ABUSE OR MODIFICATION.
THE ORIGINAL INTENT OF THIS PRODUCT DOES NOT INCLUDE USE WHERE THE MAXIMUM ALLOWED PRESSURE OR TEMPERATURE IS
EXCEEDED, AND IT DOES NOT INCLUDE APPLICATIONS UTILIZING FLUIDS THAT ARE NOT COMPATIBLE WITH THE PRODUCT'S COMPONENT
MATERIALS. DO NOT USE THIS PRODUCT WITH FLAMMABLE OR COMBUSTIBLE FLUIDS SUCH AS GASOLINE, KEROSENE, DIESEL, ETC..., DO NOT
USE IN EXPLOSIVE ATMOSPHERES, AND DO NOT USE WITH ANHYDROUS AMMONIA (NH3). FAILURE TO FOLLOW THIS NOTICE MAY RESULT IN
SERIOUS INJURY AND/OR PROPERTY DAMAGE AND WILL VOID THE PRODUCT WARRANTY. IF IN DOUBT ABOUT YOUR APPLICATION, CONTACT
YOUR STOCKING DEALER OR THE JOHN BLUE TECHNICAL STAFF AT 1-800-253-2583.
WARNING: This product can expose you to certain chemicals, which are known to the State of California to cause cancer or birth defects or
other reproductive harm. For more information go to: www.P65Warnings.ca.gov.

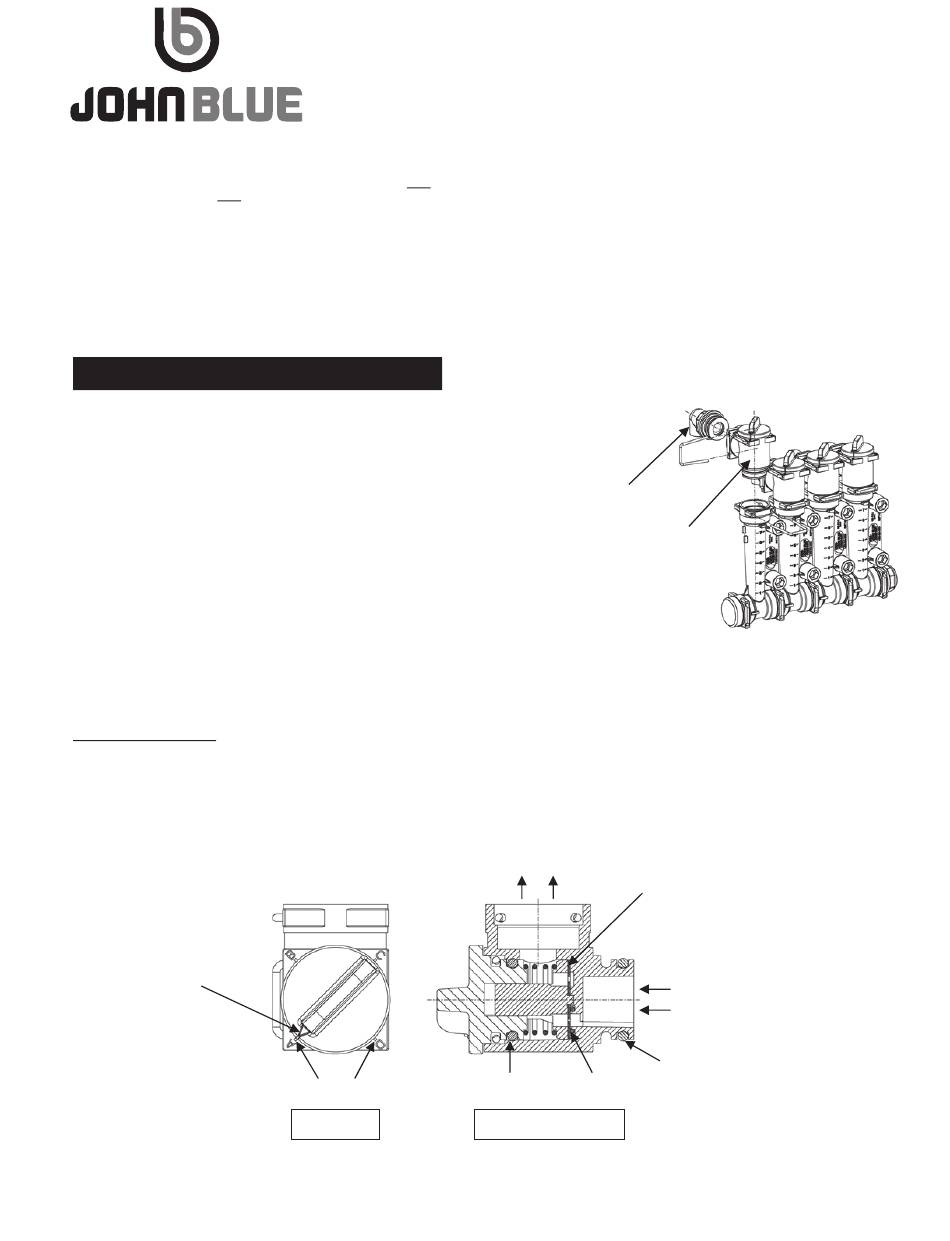

Installation and Operation:

1.
Remove the outlet adapter from each Visagage II column. Install the Orifice
Selectors in each row, and then install the outlet adapters into the side of each Orifice
Selector. The o-rings may be lubed to ease assembly.
2. Maximum allowed pressure is 100 psi, but for more equal flow
distribution it is recommended that you choose an orifice size that
keeps your pressure between 15 and 40 psi. It is also recommended
that you use John Blue 3 psi check valves (#CV1103-xxx) downstream
at the row units for this orifice-type system. See page 3 for application
chart information.
3.
A strainer should be used in the fertilizer feed line with an appropriate screen mesh
to help prevent orifice clogging.
4.
The materials in the assembly are polypropylene, Viton (o-rings), and stainless steel (spring and orifice disc). You must
check for compatibility with the chemicals you are using.
5. Adjustment between the four different orifice sizes is accomplished by turning the dial cap on top of the unit. You may use
small pliers to help turn the cap – it has detents and a snug fit to keep it from turning by accident due to vibration. Make sure
the pointer aligns with the target letter and line at each position. It is recommended that you adjust the orifices when the pump
is not running because flow will be blocked for a moment while you turn the cap.
ADJUSTMENT
POINTER
12-M-64
SMPT-OSA1 / 4
VISAGAGE ORIFICE SELECTOR
Patent #9,433,144
ADJUSTMENT POSITIONS
TOP VIEW
Installation and
Operation Manual
OUTLET ADAPTER
ORIFICE SELECTOR
OUTLET
SMPT-0065A/B/C/D
ORIFICE PLATE
SMPT-0007
SMPT-0067
VITON O-RING
VITON O-RING
SIDE CROSS-SECTION
1
INLET
SMPT-0007
VITON O-RING
Rev. 4/20
