Electric Star PC03T User Manual

electric-star.com - info@electric-star.com
Portable charger for TESLA vehicle
EFFICIENT
- Max 3.7 kW
SMART
- Highly convenient boxless design
TESLA
- Special functionalities
SAFETY
- Premium quality charger

INTRODUCTION

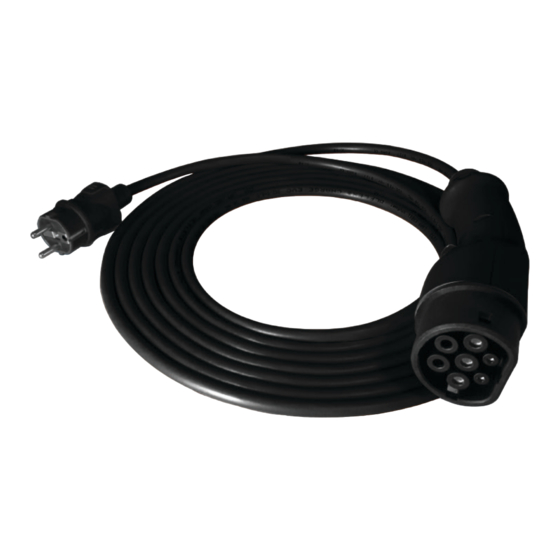

The PC03T portable charger is dedicated to charging
TESLA branded cars having a Type 2 socket (European
standard). It can be plugged into any domestic or indus-
trial electric socket, directly or using an adapter if neces-
sary. PC03T is completely universal. It fits any electric or
hybrid vehicle but includes specific functions for TESLA
cars. Charging power is easily set by the user thanks to
the convenient integrated button. This portable charger

HOW TO USE ?

START CHARGING:
1. Plug the charger into an electric socket.
2. RCD - Press "RESET" on RCD device (see page 3).
3. Charger's LED starts blinking in order to indicate
what charging power is currently set (see page 2).
4. LED remains fixed to show it is waiting to be used.
5. TESLA - Press charger's buttonin order to remotely
open its charging port.
6. Plug charger into vehicle.
7. LED blinks slowly meaning vehicle is charging.
© Electric-Star
PC03T
takes advantage of a unique design since all charging
electronics is directly integrated in the Type 2 plug !
Thanks to that revolutionary design, there is no box at-
tached to the charger, contrary to other solutions avail-
able on the market. In other words, it is more convenient,
lightweight, easy to use and easy to store. PC03T is made
from premium quality materials which is highly essential.
Power and safety are both provided by this unique charger.
END CHARGING:
1. When vehicle is charged, charger's LED remains
fixed (no more blinking).
2. TESLA
pressed for 1 sec. Your TESLA will unlock the char-
ger (only if the vehicle is open or if driver is nearby).
Charger can be unplugged from vehicle without us-
ing the App nor the vehicle's tablet.
3. Have a nice trip :)
ES-PC03T-USER-MANUAL-TESLA-EN-v2
USER MANUAL
- To remove the charger, maintain its button
Page 1
