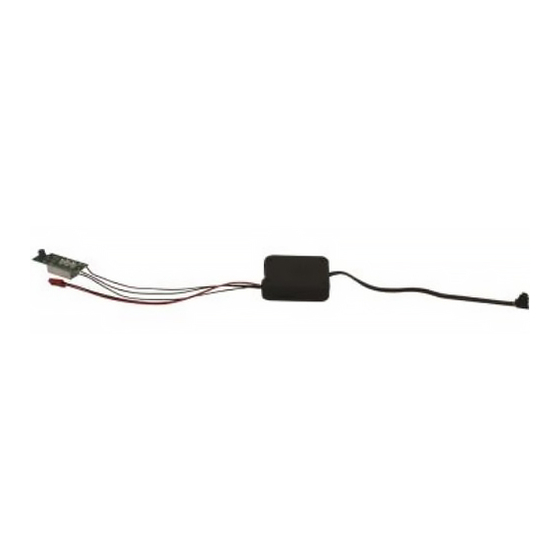

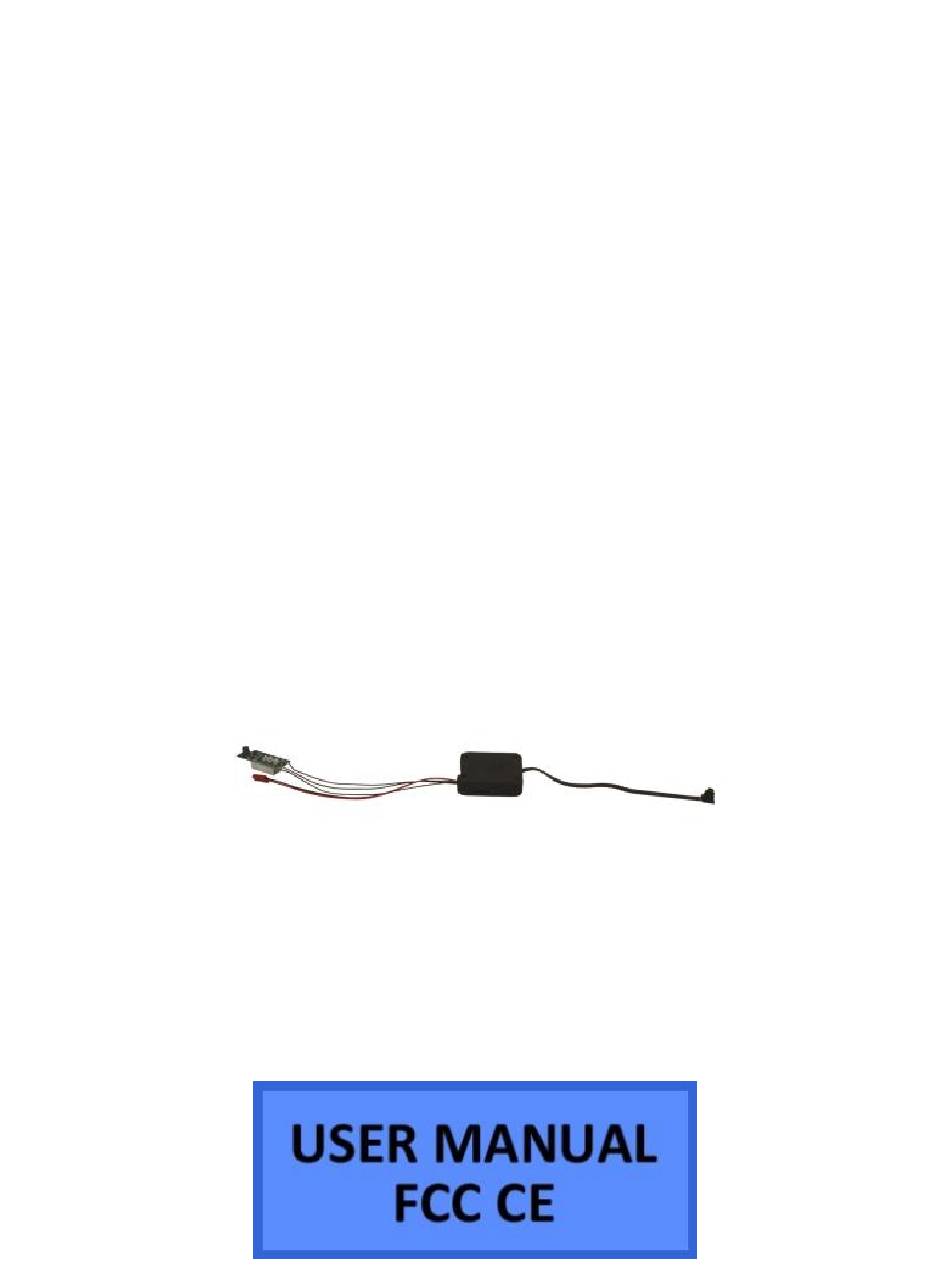

- Page 1 Bush Baby Night Eye Wi-Fi Do-It-Yourself Hidden Camera SKU: BBNEDIY Version 1.0...
- Page 2 THANK YOU FOR PURCHASING THE BBNEDIY Please read this manual before operating the BBNEDIY and keep it handy. Your purchase should include: 1 x BBNEDIY Kit 1 x Manual 1 x 128GB Micro SD Card 1 x Micro SD Card Reader 1 x Micro USB Cable 1 x AC Wall Adapter 1 x Battery...
- Page 3 GET TO KNOW YOUR BBNEDIY KIT Version 1.0...
- Page 4 Version 1.0...
- Page 5 Version 1.0...
- Page 6 Version 1.0...
- Page 7 Version 1.0...
- Page 8 OPERATING THE BBNEDIY BEFORE YOU START 1. First you must download the TinyCam app from the Google Play Store or the iPhone App Store. o Android: https://play.google.com/store/a pps/details?id=com.rtp2p.tinyca o iPhone: https://apps.apple.com/us/app/ tinycam/id1444285114 2. If you ever need to move your device from one network connection to a different one, you will need to reset the device before moving to the new...
- Page 9 hours before first use. Please see page 5 to set up your battery for charging. Note: If you are not located in the US, or if you intend to use this product anywhere other than the US, you will need to purchase a converter in order to use the AC wall plug in and avoid damaging the product.
- Page 10 In order to view your device remotely, you must complete the following two-part sequence of steps. 1. The Wi-Fi will activate once you power your device. Either connect it to plug-in power (see page 7) or the included removable battery (see page 6), then press the On/Off button (see page 4).
- Page 11 3. After connecting to the device’s Wi-Fi signal, it should display as ‘Connected’ or the ‘Current Network’ (see below picture) o Some devices may produce a warning that the network has no internet access. If you see this, choose to connect to the network anyway.
- Page 12 o For iOS devices, you must wait until the Wi-Fi signal appears next to your Phone Carrier Name at the top of your phone screen. 4. Now that we are connected to the unit’s Wi-Fi signal, go ahead and open the TinyCam App on your phone.
- Page 13 5. When you open the app, it will automatically detect that you are connected to the unit’s Wi-Fi signal and ask if you would like to add the device to the TinyCam App. Press “OK”. 6. After pressing “OK”, this will add the device to the TinyCam App and take you to the home screen.
- Page 14 o We still need to add the camera to a Wi-Fi network where it is staying in order to livestream it! 7. You should now see your device listed on the home screen. Let’s continue and add the camera to a nearby Wi-Fi network.
- Page 15 ‘Config’ or ‘Setting’ selections. For now, we want to focus on Wi-Fi Config. Go ahead and select ‘Wi-Fi Config’ and a new menu should open. 9. After selecting Wi-Fi Config, we are taken to a page where you can choose a network for the unit to connect to, and Version 1.0...
- Page 16 then type in the password for that wi-fi network. Press ‘Confirm’ when done to pair the unit with the router. You should see something that says “Set Success”. 10. Close the TinyCam App and proceed to step 11. Version 1.0...
- Page 17 11. If the unit pairs with your router, it will stop broadcasting its own Wi-Fi signal, and your phone should connect back to the normal network for the area. o To verify if the camera added successfully to your router, turn off your phones Wi-Fi, and then open the ‘TinyCam’...
- Page 18 o NOTE: The first time you access the livestream, the unit will request that you change the password. DO NOT FORGET THIS PASSWORD! o The default password is 888888. HOW TO ADJUST THE VIDEO QUALITY OF THE STREAM 1. Open the TinyCam App. 2.
- Page 19 3. After opening the livestream, in the top center of the screen, you should see three different options. a. 1080P – Stream in 1920x1080P b. 720P – Stream in 1280x720 c. 640P – Stream in 1152x640 HOW TO SET UP MOTION DETECTION RECORDING 1.
- Page 20 3. Navigate to ‘Alarm Config’. 4. Turn Motion detection to any option besides ‘Close’. 5. Hit the back button on your phone so you can see all the other Config/Setting options again. 6. Choose ‘Micro SD Card Setting’. Version 1.0...
- Page 21 7. Tap the ‘Alarm recording’ box and ensure that it is checked. 8. Your device is now set up for motion detection recording! a. By turning the ‘Alarms’ motion detection levels on, the unit sends an ‘Alarm’ once motion is detected. This alarm triggers the unit to begin recording.
- Page 22 Micro SD Card Setting – A Further Look Version 1.0...
- Page 23 a) Micro SD Card Capacity – This displays what size MicroSD card you have inside the unit, and the total space left. a. The number on the left is the total space left. b. The number on the right is what size MicroSD card you have inside the unit.
- Page 24 f) Recording Length – These are how long the unit’s videos will last. a. If you have full time recording enabled, and set the ‘recording length’ to 180 seconds, your unit will record video 24/7 and the videos will be in 3 minute segments.
- Page 25 j) Time-Lapse Video Recording – This is how long of an elongated video your unit will record. OTHER CONFIG OPTIONS Version 1.0...
- Page 26 a) Time Set – This allows you to set the time/date for the unit. b) Power Frequency – If you are located in the USA, set this to 60Hz (also known as NTSC). Almost all other countries use 50Hz (also known as PAL). c) Initialization –...
- Page 27 servers or contact your server administrator. e) Email Set – These settings will allow the unit to email you notifications regarding motion. Information regarding the SMTP settings, etc can be found through your email provider. Technical Support is not able to tell you what your SMTP settings are –...
- Page 28 4. Locate “Removable Disk” inside the (My) Computer folder. a. On most Windows PC, AutoPlay will detect the removable storage and ask how you would like to proceed. Choose ‘Open folder to view files’ b. On Mac devices, the removable storage will appear under ‘Removable Storage’...
- Page 29 To save a file, select the file with your mouse, right click your mouse on the file’s name, then choose “Copy” from the menu. Next, go to the location you want to save the file to. Right click your mouse, then choose “Paste”.
-
Page 30: Microsd Card
REMOTELY VIEWING RECORDINGS ON THE MICROSD CARD 1. Open the TinyCam App. 2. Press the folder icon on the bottom left of your device listing. 3. The new screen that opens shows all current recordings on the MicroSD card for the current day. The top right corner (clock icon) allows you to choose which date you wish to view recordings from. -
Page 31: Troubleshooting
TROUBLESHOOTING THE DEVICE WON’T TURN ON Make sure the battery is securely connected to the camera board or that you have powered the device correctly. CANNOT RECORD TO MICROSD CARD Make sure the MicroSD card is inserted into the unit fully. It’s spring loaded so you should feel it click into place. -
Page 32: Specifications
Contact our Technical Support team at 770-694-6921 or support@minigadgets.com SPECIFICATIONS Stream Resolution 1080P Recording Resolution 720P Video Format H.264 Viewing Angle 110° MicroSD Card 128GB Storage Video Consumption 1 Min = 20MB Playback Software Loop Recording Operating Systems Android, iOS Version 1.0... - Page 33 Version 1.0...
- Page 34 Version 1.0...
- Page 35 QUALITY CONTROL CHECKLIST ☐ Instruction Manual ☐ MicroSD Card Reader ☐ BBNEDIY Kit ☐ 128GB MicroSD Card ☐ Micro USB Cable ☐ AC Wall Adapter ☐ Battery ☐ Charging Adapter with LEDs QC Technician: ______________________________ Date: ___________________________________ Version 1.0...
