Summary of Contents for Mobotix MOVE NVR-8

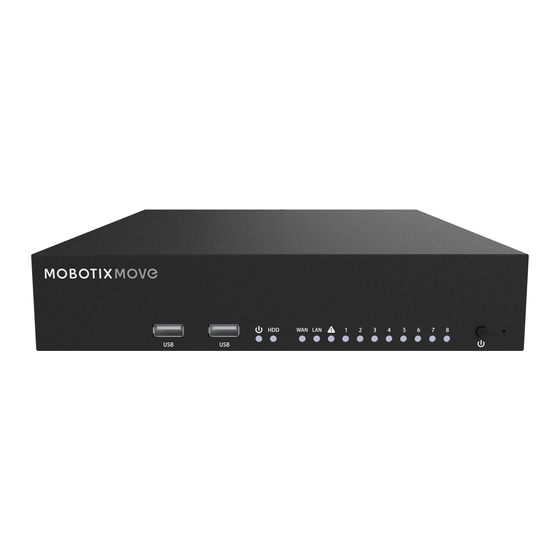

- Page 1 Quick Installation MOBOTIX MOVE NVR-8 Mx-S-NVR1A-8-POE © 2020 MOBOTIX AG V01_7/29/2020...
-
Page 2: Table Of Contents
Table of Contents Table of Contents Table of Contents Support Imprint Safety Warnings Legal Notes Installation Package Contents Documentation Front Panel Rear Panel HDD Installation Configuration Power On the NVR Login/Logout NVR System Power Off the NVR Function Tabs Language and Date / Time Setup Language Setup Date / Time Setup Network Setup... -
Page 3: Table Of Contents
Table of Contents Snapshot Snapshot Export Playback Control Icons Video Export Function Icons Snapshot Function Icons Technical Specifications Power Consumption of MOBOTIX MOVE Cameras List of Tested Hard Disks 3 / 8... -
Page 4: Support
Support Support If you need technical support, please contact your MOBOTIX dealer. If your dealer cannot help you, he will contact the support channel to get an answer for you as quickly as possible. If you have internet access, you can open the MOBOTIX help desk to find additional information and soft- ware updates. -
Page 5: Imprint
Imprint Imprint This document is part of the camera manufactured by MOBOTIX AG (called manufacturer in the following); the document describes how to use and to configure the camera and its components. Subject to change without notice. Copyright Information This document is protected by copyright. Passing on information to others is not premitted without the prior written consent of the manufacturer. -
Page 6: Safety Warnings
Safety Warnings Safety Warnings This product must not be used in locations exposed to the dangers of explosion. Electrical systems and equipment may only be installed, modified and maintained by a qualified elec- trician or under the direction and supervision of a qualified electrician in accordance with the applic- able electrical guidelines. -
Page 7: Legal Notes
MOBOTIX AG is not liable for any illegal use of its products. Declaration of Conformity The products of MOBOTIX AG are certified according to the applicable regulations of the EC and other coun- tries. You can find the declarations of conformity for the products of MOBOTIX AG on www.mobotix.com... -
Page 9: Installation
Installation Package Contents Make sure the delivered box contains the following items: MOBOTIX MOVE NVR-8 Power Power Cord Adapter Documentation Scan the QR code or follow the link to find the MOBOTIX MOVE NVR-8 documentation: 1 / 17... -
Page 10: Front Panel
Installation Front Panel www.mobotix.com > Support > Download Center > Marketing & Documentation > Manuals > Accessories > MOVE NVR-8 Front Panel Item Name Description USB 2.0 Port The USB ports allow users to connect external USB devices, such as a USB mouse, a USB keyboard, a USB storage device, etc. -
Page 11: Rear Panel
Installation Rear Panel Item Name Description Power But- Press this button to power on the NVR system. Reset Button Press this button with a proper tool to restore the factory defaults of the NVR sys- tem. Rear Panel Item Name Description Power Jack Connect the power adaptor and the power cord shipped with the NVR to... - Page 12 Installation Rear Panel Item Name Description WAN (RJ-45) This port is for connecting to the Internet (i.e., DSL router). 10/100/1000 Mbps Green LED: Flashes when data is being transmitted via network. Orange LED: — Lights up in green when network speed is 10/100 Mpbs. —...
-
Page 13: Hdd Installation
Installation HDD Installation HDD Installation Follow the steps below to install an HDD to the NVR: 1. Open top cover. 2. Remove HDD rack by unscrewing the four fixing screws. 3. Fasten the HDD with the fixing screws delivered with the HDD as shown below. 4. - Page 14 Installation HDD Installation matically. 5. Close top cover. List of Tested Hard Disks Note: To ensure long-term reliable operation, make sure that you are using server-grade hard disks from the manufacturers’ series listed below. Brand Series Model Number Firmware Capacity Seagate Skyhawk ST8000VX004...
-
Page 15: Configuration
Configuration Power On the NVR 1. Before powering on the NVR, connect the necessary devices first: — USB Mouse & USB Keyboard — Internet (WAN) — Monitor (HDMI and/or DisplayPort) — IP Cameras via PoE ports 2. Be sure to check the type of power source before plugging the power cord and power adaptor to the NVR. -
Page 16: Login/Logout Nvr System
Configuration Power On the NVR Login/Logout NVR System Two accounts are predefined on the MOBOTIX MOVE NVR-8: “Guest” and “Admin”. The password for both users is “meinsm”. Login Warning Always change the preset password of the “Guest” user to prevent unauthorized access to the unit. -
Page 17: Power Off The Nvr
Configuration Function Tabs Logout To log out, click on the username and select LogOut. Power Off the NVR 1. Click Power icon at the top-right corner of the monitor, and the Power Panel will show up. 2. Click Power Off icon , and the NVR system will start the shutdown procedure. -
Page 18: Language And Date / Time Setup
Configuration Language and Date / Time Setup Language and Date / Time Setup Language Setup 1. Under Setup function tab, select Language to enter the language setting menu. 2. Select the preferred language from the language drop-down list and click Apply to save the setting. 3. -
Page 19: Ip Camera Connection
Configuration IP Camera Connection IP Camera Connection Users can connect the IP cameras to the NVR via the network connection or through the PoE ports on the rear panel. Follow the instructions below to connect IP cameras to the NVR. Add Device 1. -
Page 20: Local Playback By Time
Configuration Playback / Export Local Playback by Time 1. Select any underlined date from the calendar, which indicates the recording data are available from these dates. The yellow stripe(s) in the time bar at the bottom of the function tab indicates available recorded videos for users to playback. -
Page 21: Video Export By Time
Configuration Playback / Export Video Export By Time Before starting the video export, make sure an external USB storage device is installed. 1. Click and drag the Time Interval icon to the time bar to select the desired time interval of the recor- ded video. -
Page 22: Snapshot Export
Configuration Playback / Export Snapshot Export Before starting the snapshot export, make sure an external USB storage device is installed. 1. Select the desired snapshot(s) from the Snapshot List. 2. Click Export icon , and an Export window will be displayed. 3. Click Confirm to start exporting the file(s); otherwise, click Cancel to abort. Playback Control Icons Icon Description... -
Page 23: Technical Specifications
Technical Specifications Type Mx-S-NVR1A-8-POE System Operating System Embedded Linux Intel Apollo Lake E3930 LPDDR4, 2 x 1 GB Boot Drive eMMC Flash, 16 GB Graphics Intel HD Graphics 500 DISPLAY PORT Output 1920x1080@60Hz (Full HD) HDMI Output 1920x1080@60Hz (Full HD) Audio Input MIC-in, 3.5 mm x1 earphone Audio Output Line-out, 3.5 mm x1 earphone... - Page 24 Technical Specifications Type Mx-S-NVR1A-8-POE GPU Hardware Decoding 12 CH real-time display, up to 360 fps@D1 decoding Compression Format H.264 / H.265 Storage Build-in SATA Interface 3.5” SATA3 x2 Max. HDD storage support 20 TB (internal & ext. iSCSI) Onboard Hardware Interface M.2 (M-Key) Network WAN Uplink RJ-45 x1, 10/100/1000 Mbps...
-
Page 25: Power Consumption Of Mobotix Move Cameras
Technical Specifications Power Consumption of MOBOTIX MOVE Cameras Model Order Code Max. Power Consumption BulletCamera 2MP Mx-BC1A-2-IR... 5.6 W BulletCamera 4MP Mx-BC1A-4-IR... 13.68 W SpeedDome Mx-SD1A-330 25.4 W SpeedDome IR Mx-SD1A-340-IR 44 W (external PoE injector required) VandalDome 2MP Mx-VD1A-2-IR... 12.25 W VandalDome 4MP Mx-VD1A-4-IR... 13.68 W...
