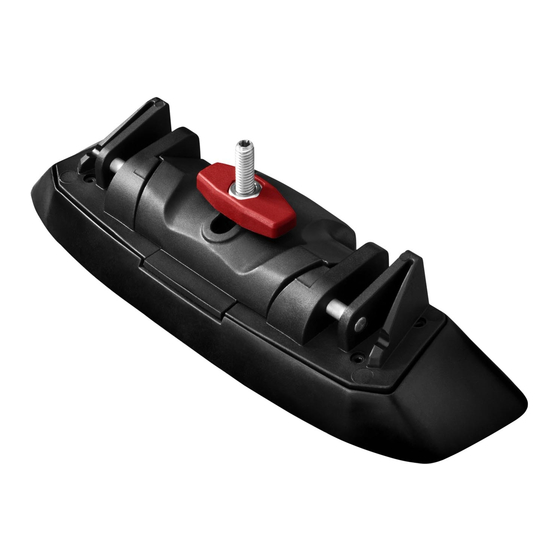

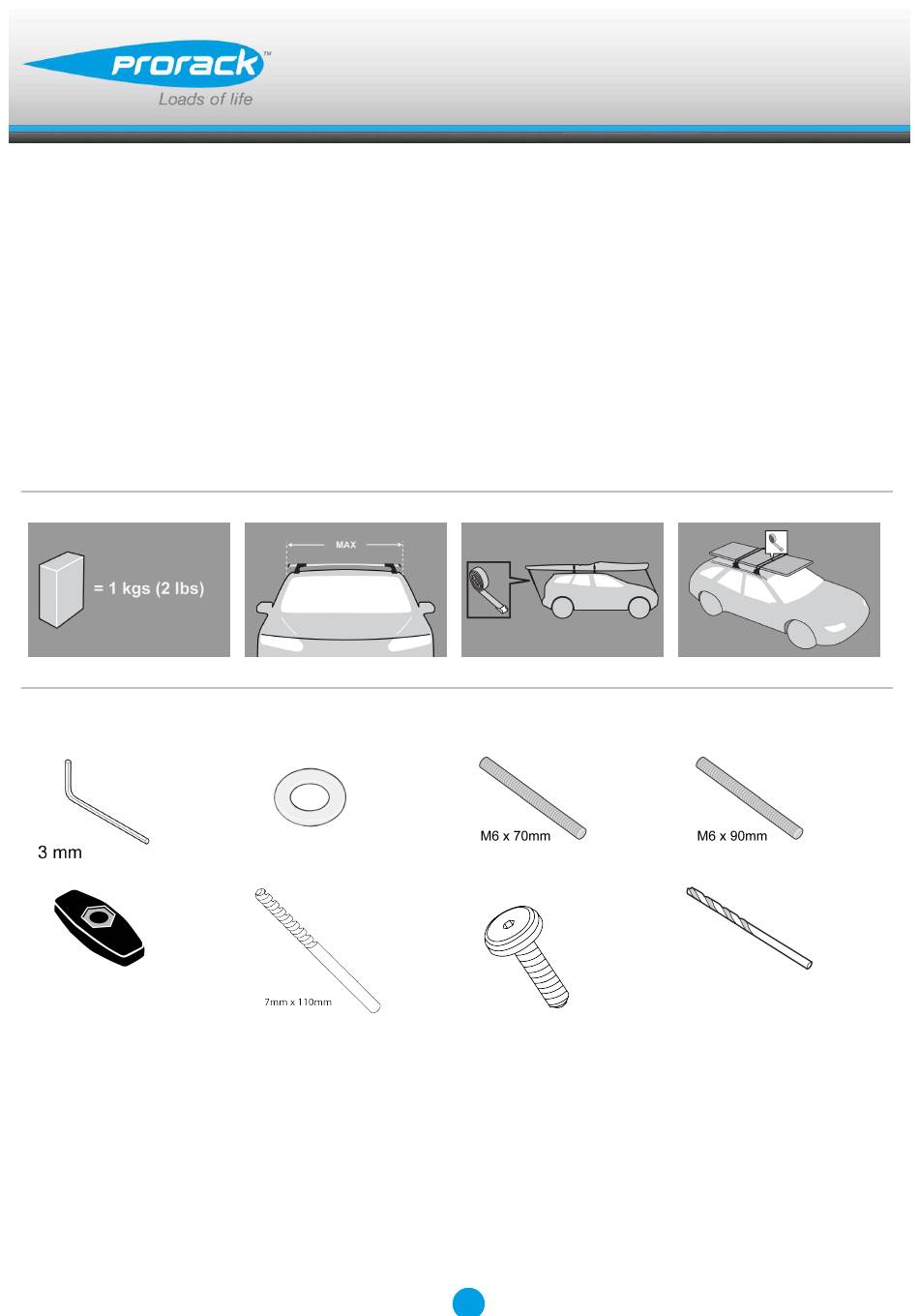

- Page 1 K919 Fitting Kit Fitting Instructions for Basic Carrier Revision No: 3C...
- Page 2 Fitting Kit K919...
- Page 3 Fitting Kit K919 MAX kgs (lbs) Land Rover Range Rover Sport (2 BAR), 5dr SUV 13-+ 75 kgs (165 lbs) 75 kgs (165 lbs) Range Rover Sport (2 BAR), 5dr SUV 13-+ 75 kgs (165 lbs) 75 kgs (165 lbs)
- Page 4 Fitting Kit K919 Range Rover Sport (2 BAR), 5dr SUV 13-+ (NZ) -230mm 450mm 1056mm 1056mm -9 -1/16ths" 17 3/4ths" 41 9/16ths" 41 9/16ths" Range Rover Sport (2 BAR), 5dr SUV 13-+ (AU) -230mm 450mm 1056mm 1056mm -9 -1/16ths" 17 3/4ths"...
-
Page 5: First Time Installation
Fitting Kit K919 First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type A crossbar fitted. They also apply to type B, C and D. - Page 6 Fitting Kit K919 Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment method. Ensure each end of the crossbar is adjusted equally. Attaches to factory-fitted mounting points...
- Page 7 Fitting Kit K919 Tighten adjusting screw to 2 Nm (1.5 ft lb) hand tight. Remove plastic clamp block by gripping bar leg with fingers and push firmly with thumbs until clamp block drops out behind leg. Select plastic internal block (from fitting kit) and insert into foot.
- Page 8 Fitting Kit K919 Fitment Lift and pull ditch moulding back towards you and remove from the vehicle. Remove retaining clips from 2nd and 4th position for 2 bar system. Remove retaining clips from 2nd, 4th and 6th position for 3 bar system.
- Page 9 Fitting Kit K919 Use drill bit supplied, to drill holes in marked positions on ditch mould. Replace retaining clips into ditch mould. Re-install rubber ditch mould back into roof channel and click into place.
- Page 10 Fitting Kit K919 Letters refer to the part numbers stamped on clamps. Grubscrew Part Number: 2 bars only A = 70mm Grubscrew Part Number: 3 bars only A = 70mm B = 90mm Select grubscrews and screw into the vehicle's fixed points.
- Page 11 Fitting Kit K919 Letters refer to the pad part numbers and position. Pad Part Number: 2 bars only A = 223 B = 222 C = 219 Pad Part Number: 3 bars only A = 223 B = 222 C = 219...
- Page 12 Fitting Kit K919 Ensure the plastic knob is in the position shown when fully tightened. Repeat for all legs. Check crossbar is securely attached to the vehicle. Use keys to fit and lock covers If crossbars are removed, please install...
- Page 13 Fitting Kit K919 CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars. Regularly check screws are tight.
-
Page 14: Maintenance
Fitting Kit K919 Maintenance Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order. - Page 15 Fitting Kit K919 Check and replace worn out or defective parts. Keep the product clean and maintained. Never drive into a car wash with the roof rack system fitted. Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use.
-
