- Page 1 VM-X Close Focus Adapter INSTRUCTION MANUAL COSINA CO., LTD. Aug 2019, Ver 1.0...
- Page 2 Voigtländer mount adapters are designed to be used with Voigtländer lenses on various types of camera mounts.
- Page 3 Tips for care and safety These tips are to protect the user from injury or damaging the product. If the user ignores this warning sign and uses the equipment the wrong way serious injuries and even death might be the WARNING result.
- Page 4 Description of Parts ① Release button ② Lens mount index ① ② ③ Focus ring ③ ④ Camera mount index ⑤ Infinity lock lever ④ ▲ ⑤ ▼...

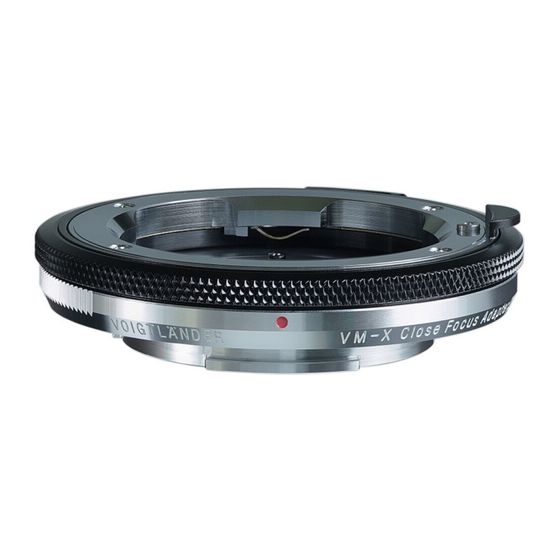

- Page 5 ● About the VM-X Close Focus Adapter The VM-X Close Focus Adapter features a built-in 4 mm helicoid that enables the lens to be focused beyond their original minimum focus distance. *Please note that actual minimum focus distance varies, depending on the lens used.
- Page 6 ● Attaching the Adapter to the camera body Line up the lens index mark on the camera body with the camera mount index ④ on the Adapter and turn the Adapter clockwise until it locks. ● Attaching the lens to the Adapter Line up the index mark on the lens with the lens mount index ②...
- Page 7 ● Using the Adapter Capturing images using the focus range of the attached lens We recommend using the adapter with the focus ring ③ in the locked position. Turn the focus ring ③ clockwise until it stops, and then slide the infinity lock lever ⑤...
- Page 8 ● Specifications Product Name VM-X Close Focus Adapter Covered Image Size APS-C Helicoid Extention Maximum Diameter Approx. Ø62.7mm Weight Approx. Ø75g Other Infinity Lock System * Specification and information is subject to change without prior notice.
