Summary of Contents for SereneLife PSPR190

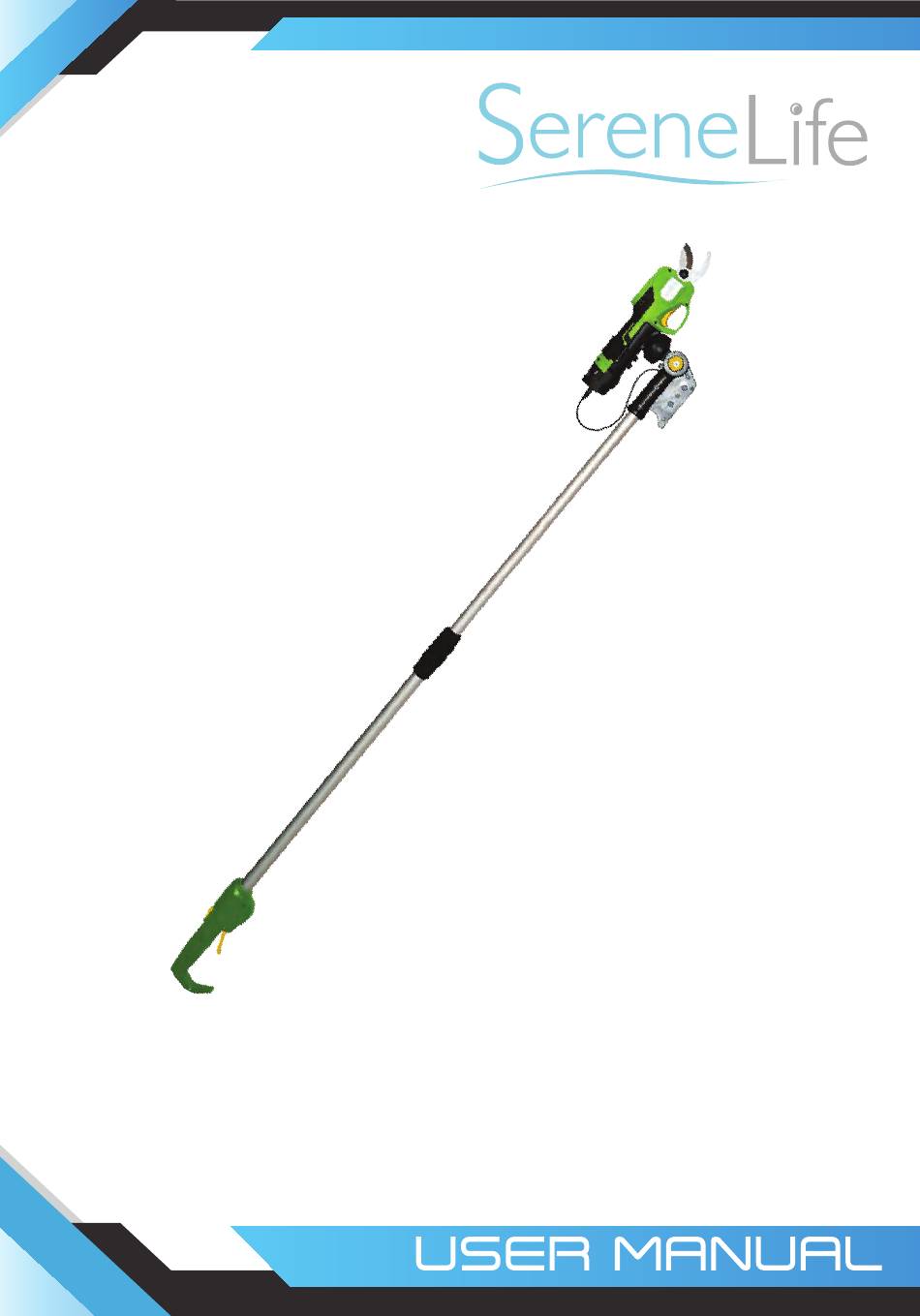

- Page 1 PSPR190 Cordless Lithium Power Pruner with Telescopic Handle Pruning Shear with 7.2V Lithium-ion Battery Powered Garden Electric Pole Pruner...
- Page 2 Fig. 1a www.SereneLifeHome.com...
- Page 3 Fig.1b Fig. 2 Fig.3a Fig.3b www.SereneLifeHome.com...
- Page 4 1 16 17 Fig.4 Fig.5a 45° Fig.5b Fig.5c Fig. 6a Fig. 6b www.SereneLifeHome.com...
- Page 5 Fig. 7a Fig. 7b Fig. 8 Fig. 9 www.SereneLifeHome.com...
-
Page 6: Safety Regulations
1. Safety Regulations General Power Tool Safety Warnings WARNING: Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, re and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refer to your electric (corded) power tool or battery-operated (cordless) power tool. - Page 7 e. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply.
- Page 8 c. Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.
- Page 9 i. Do not open or mutilate the battery. Released electrolyte is corrosive and may cause damage to the eyes or skin. It may be toxic if swallowed. j. Exercise care in handling batteries in order not to short the battery with conducting materials such as rings, bracelets, and keys.
- Page 10 Cordless Garden Pole Pruner Safety Instructions • Keep your free hand away from the cutting area. Never touch the blades. They are very sharp and you may cut yourself. • We recommend that people who are using a chainsaw for the first time should arrange for a well-versed person to instruct them on how to work with a pole pruner and the safety equipment, for example in the form of practical exercises.
- Page 11 • In order to ensure safe work, a maximum working angle of 60° is prescribed. • Never stand below the branch to be cut. • Potential risk of injury from falling branches projectiles! • The machine is not protected against electric shock when coming into contact with high-voltage lines.
- Page 12 12. When handling batteries beware of electrostatic charge: Electrostatic discharges cause damage of the electronic protection system and the battery cells. Avoid electrostatic charging and never touch the battery poles. Rechargeable batteries and cordless electric machines and tools contain materials that are potentially harmful to the environment.
-
Page 13: Layout And Items Supplied
2. Layout and items supplied 2.1 Layout (Fig. 1a/1b/5a/6b) 1. Blade – moving 11. Clamp coupling for telescopic pole 2. Blade – fixed 12. The Rotating button 3. ON/OFF switch 13. Blade guard 4. Safety lock-o 14. Battery 5. The pruner cover 15. -
Page 14: Battery Charger
• Charging time: ................3~5h • Protection class: .................. III PSPR190 • Emission sound pressure level: ............64dB •... -
Page 15: Before Starting The Equipment
5. Before starting the equipment 5.1 Installing the battery (Fig. 3a/3b) Press the both side of the battery pack as shown in Fig. 3a and push the battery pack into the mount provided. When the battery pack is positioned as in Fig. 3b, make sure that the battery pack latch in place! To remove the battery pack, proceed in reverse order. -
Page 16: Operation
6. Operation WARNING: Before any work on the machine (e. g. maintenance, changing the tool, etc.) as well as during its transport and storage, Safety lock-o in the o position. There is danger of injury when the On/Off switch is unintentionally actuated. To close the blade 1 (Fig. -
Page 17: Cleaning, Maintenance And Ordering Of Spare Parts
8. Using the extention and rotation feature on the Connecting pole Extend or shorten the length of the telescopic pole(Fig. 1a/Item 8) by loosening (Fig. 9) the Clamp coupling for telescopic pole (Fig. 1a/Item 11) and pull in or push out the lower section to achieve the correct height as shown below. - Page 18 Important! Never clean the tool under running water- and particularly never with high pressure - because of the potential danger to persons and property. Keep your cordless pruner in a dry and frost proof place. Choose a place that children are unable to enter. 10.2 Maintenance •...
- Page 19 This consignment contains lithium-ion batteries. In accordance with special provision 188 this consignment is not subject to the ADR regulations. Handle with care. Danger of ignition in case of damage to the consignment package. If the consignment package is damaged: Check and if necessary repackage. Features: •...
- Page 20 Questions? Issues? We are here to help! Phone: (1) 718-535-1800 Email: support@pyleusa.com...
