Summary of Contents for Master Chef 085-3259-6

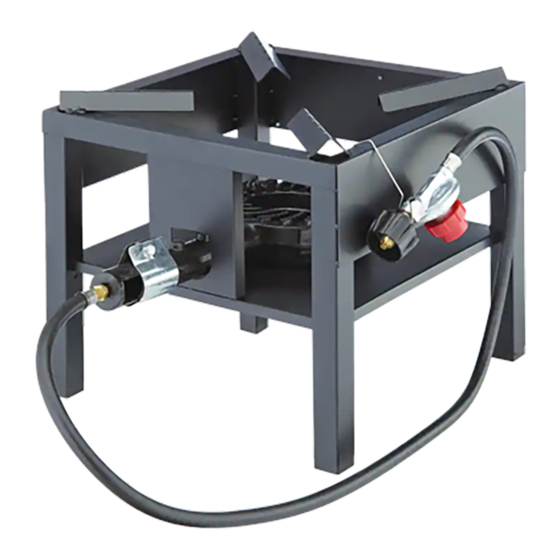

- Page 1 Outdoor Propane Burner Product no. 085-3259-6 (TF2047905-MC-00) SAFETY AND CARE MANUAL Toll-free: 1-855-803-9313 Read this manual thoroughly before using and save it for future reference.
-
Page 2: Table Of Contents
Product no. 085-3259-6 (TF2047905-MC-00) | Contact us: 1-855-803-9313 Warnings LP Tank Leak Testing Lighting Instructions Cleaning and Maintenance Operation Troubleshooting Limited Warranty • To installer or person assembling this appliance: Leave this manual with this appliance for future reference. • This instruction manual contains important information necessary for the proper assembly and safe use of the appliance. -
Page 3: Warnings
DANGER: If you smell gas: 1. Shut o gas to the appliance. 2. Extinguish any open flame. 3. If odour continues, keep away from the appliance and immediately call your gas supplier or fire department. Failure to follow these instructions could result in fire or explosion which could cause property damage, personal injury or death. - Page 4 Product no. 085-3259-6 (TF2047905-MC-00) | Contact us: 1-855-803-9313 WARNING: Installation Safety Precautions. • The installation must conform with local codes or, in the absence of local codes, with either the National Fuel Gas Code, ANSI Z223.1/NFPA 54, Natural Gas and Propane Installation Code, CSA B149.1, or Propane Storage and Handling Code, B149.2.
- Page 5 WARNING: • Do not place an empty cooking vessel on the appliance while in operation. Use caution when placing anything in cooking vessel while the appliance is in operation. • Do not move the appliance when in use. Allow the cooking vessel to cool to 115°F (45°C) before moving or storing.
-
Page 6: Lp Tank
Product no. 085-3259-6 (TF2047905-MC-00) | Contact us: 1-855-803-9313 DANGER: • The safety relief valve on the LP tank could activate releasing gas and cause an intense fire with risk of death or serious injury. Therefore, follow instructions bulleted below exactly. - Page 7 LP tank valve must have: • Type 1 outlet compatible with regulator or appliance. • Safety relief valve. • UL listed Overfill Protection Device (OPD). This OPD safety feature is identified by a unique triangular hand wheel. Use only tanks equipped with this type of valve. •...
- Page 8 Product no. 085-3259-6 (TF2047905-MC-00) | Contact us: 1-855-803-9313 WARNING: If “growing” bubbles appear, do not use or move the LP tank. Contact an LP gas supplier or your fire department. Connecting Regulator to the LP Tank 1. Place LP tank on a secure, level, and stable surface.
-
Page 9: Leak Testing
WARNING: • Do not use appliance until leak checked. • If leak is detected at any time, STOP. • If you cannot stop a gas leak, immediately close LP tank valve, leave area of appliance, and call LP gas supplier or your fire department! Leak Testing Valves, Hoses and Regulator 1. -
Page 10: Lighting Instructions
Product no. 085-3259-6 (TF2047905-MC-00) | Contact us: 1-855-803-9313 Lighting Instructions Note: Do not lean over LP cooker while lighting. Step Procedure Illustration Read all instructions before lighting. Turn regulator control valve to OFF position. Remove the rain cover. Fully open LP bottle valve. - Page 11 WARNING: • When lighting the appliance, ensure that body, head and hands are kept away from the burner top opening to avoid any fire hazard. • A long wooden match should be used for lighting. A match that is too short may burn your hand. CAUTION: If burner does not light OR if burner flame is accidentally extinguished, turn knob to OFF, wait 5 minutes, try again.
- Page 12 Product no. 085-3259-6 (TF2047905-MC-00) | Contact us: 1-855-803-9313 Burner Flame Check Good Light burner then rotate regulator knob from HIGH to LOW. Yellow You should see a smaller flame in LOW position than on HIGH. Yellow Always check flame prior to each use.
-
Page 13: Cleaning And Maintenance
Steps for Cleaning the Burner: 1. Remove orifice/hose from the burner. 2. Look inside the burner tube for nests, webs, or mud. 3. To remove the above obstructions, use an accessory flexible venture brush or bend a small hook on one end of a long flexible wire such as the one in small picture. - Page 14 Product no. 085-3259-6 (TF2047905-MC-00) | Contact us: 1-855-803-9313 CAUTION: All cleaning and maintenance should only be done when the appliance is cool and with the fuel supply turned o at the LP tank. DO NOT clean any part in a self-cleaning oven.
- Page 15 WARNING: • Do not use appliance until leak checked. • If leak is detected at any time, STOP. • If you cannot stop a gas leak, immediately close LP tank valve, leave area of appliance, and call LP gas supplier or your fire department! CAUTION: All cleaning and maintenance should only be done when the appliance is cool and with the fuel supply turned o at the LP tank.
- Page 16 Product no. 085-3259-6 (TF2047905-MC-00) | Contact us: 1-855-803-9313 Problem Possible Cause Corrective Action The connection between the regulator The burner does Check and make sure the regulator coupling nut is tightened to not light up. and LP tank are not in good condition.
-
Page 17: Limited Warranty
1. Limited Warranty This product carries a one (1) year warranty against defects in workmanship and materials. Trileaf Distribution agrees to replace a defective product, within the stated warranty period, when returned to the place of purchase with proof of purchase. This product is not guaranteed against wear or breakage due to misuse and/or abuse. - Page 18 Master Chef Canada Toronto, Canada M4S 2B8...
