SinoCon KonNad C2000-A2-SMX2800-AC1 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Last updated: 2019-12-13

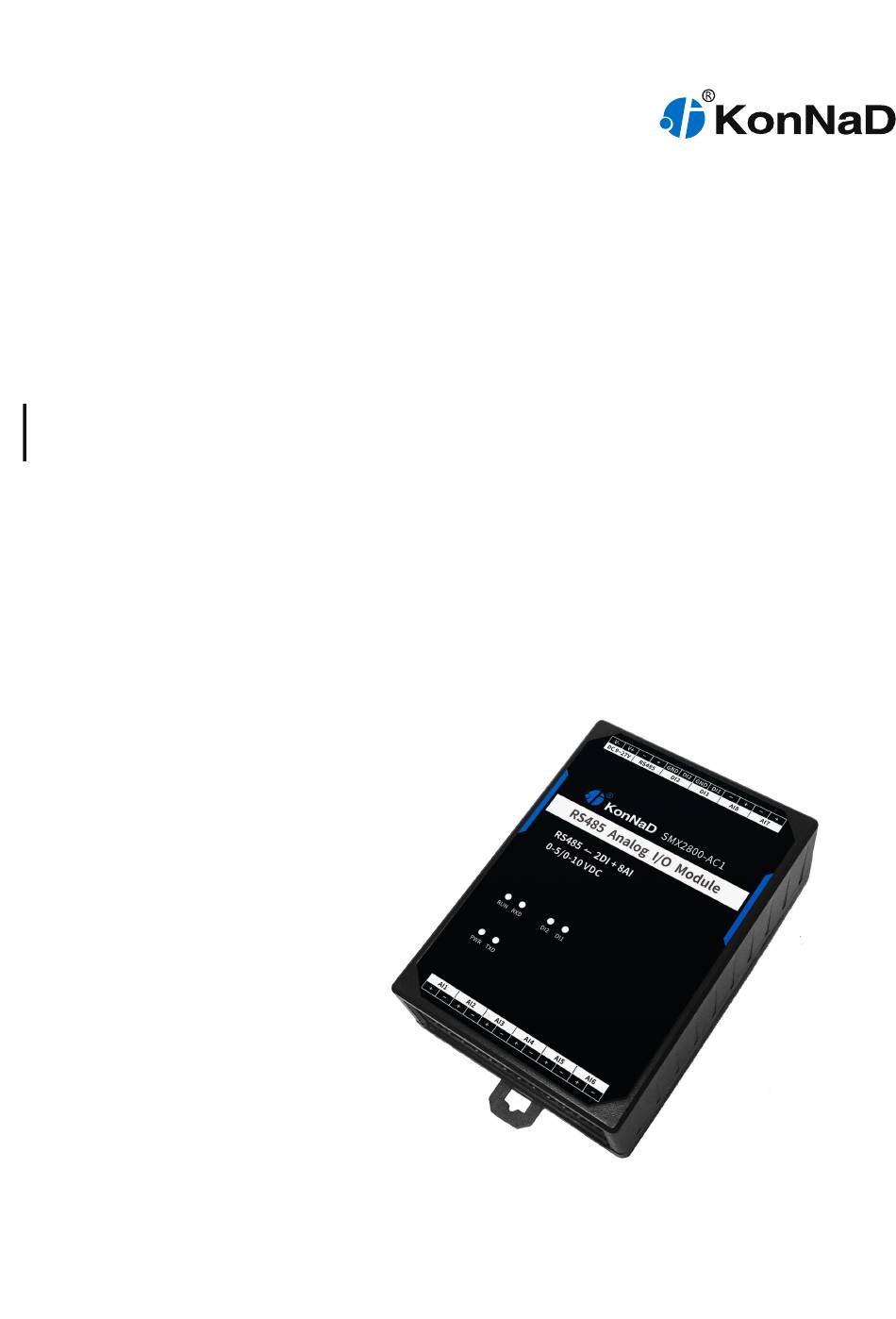

C2000-A2-SMX2800-AC1
User Manual
RS485 ← 2DI + 8AI
0-5/0-10 VDC
Remote I/O Module — RS485 Analog I/O Module
SinoCon Co., Ltd.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KonNad C2000-A2-SMX2800-AC1 and is the answer not in the manual?

Questions and answers

Related Manuals for SinoCon KonNad C2000-A2-SMX2800-AC1

Summary of Contents for SinoCon KonNad C2000-A2-SMX2800-AC1

  • Page 1 Last updated: 2019-12-13 C2000-A2-SMX2800-AC1 User Manual RS485 ← 2DI + 8AI 0-5/0-10 VDC Remote I/O Module — RS485 Analog I/O Module SinoCon Co., Ltd.

  • Page 2: Table Of Contents

    C2000-A2-SMX2800-AC1 User Manual Catalog Catalog 1. Hardware Description 1.1. Specifications 1.2. Apprearance 1.3. Indicators 1.4. Port Description 1.5. Product Dimensions 1.6. Installation Method 2. Package Contents 3. Warranty Policy SinoCon Co., Ltd. www.sinoconsys.com 2 / 12...
  • Page 3 Copyright Notice ©2000 - 2019 SinoCon Co., Ltd. All Rights Reserved. Trademarks The KonNaD logo is a registered trademark of SinoCon Co., Ltd. All other trademarks or registered marks in this manual belong to their respective manufacturers. Disclaimer This document only provides information about KonNaD products. No license to any intellectual property rights is granted by this document, including any intellectual property licenses, expressed or implied, or by any means.
  • Page 4 C2000-A2-SMX2800-AC1 User Manual SinoCon Co., Ltd. www.sinoconsys.com 4 / 12...

  • Page 5: Hardware Description

    10/30Hz (configurable) Channel-to-Channel Isolation 350VDC Input Impedance 10kΩ Upstream Serial Port Serial Standrad RS485 No. of Ports Connector Terminal block Industrial Protocol Standard Modbus RTU Protocol Power Power Connector Terminal block Input Voltage 9~27VDC SinoCon Co., Ltd. www.sinoconsys.com 5 / 12...
  • Page 6 Specification Current 80mA @ 12VDC Physical Characteristics Dimensions 75*105*30mm Installation Din-rail or wall Environmental Limits Operating Temperature -40℃ ~ 85℃ Storage Temperature -60℃ ~ 125℃ Ambient Relative Humidity 5% ~ 95% RH, non-condensing SinoCon Co., Ltd. www.sinoconsys.com 6 / 12...

  • Page 7: Apprearance

    C2000-A2-SMX2800-AC1 User Manual 1.2. Apprearance SinoCon Co., Ltd. www.sinoconsys.com 7 / 12...

  • Page 8: Indicators

    Steady on：Normal power supply Off：No power or abnormal power supply, please check if the voltage range is 9~27VDC Running indicator Steady on：Device exception Flashing：Flashes every 1 second when the device is ready Off：Device exception SinoCon Co., Ltd. www.sinoconsys.com 8 / 12...

  • Page 9: Port Description

    Analog Input +、- Positive analog input, Negative analog input RVV 2*0.5 Upstream Serial +、- RS485+, RS485- (upstream) RVSP 2*0.5 Port Power Input V+、 Power supply input positive, power supply input RVV 2*1.0 negative SinoCon Co., Ltd. www.sinoconsys.com 9 / 12...

  • Page 10: Product Dimensions

    C2000-A2-SMX2800-AC1 User Manual 1.5. Product Dimensions unit: mm（inch） 1.6. Installation Method SinoCon Co., Ltd. www.sinoconsys.com 10 / 12...
  • Page 11 C2000-A2-SMX2800-AC1 User Manual 2. Package Contents Contents Device (contain mounting kit) * 1 Terminal block * 1 set Installation guide card * 1 SinoCon Co., Ltd. www.sinoconsys.com 11 / 12...

  • Page 12: Warranty Policy

    8. Our company's responsibility for the manufacture, sale and use of the products shall not exceed the original cost of the products. The company does not assume any joint responsibility. 9. The right to interpret this clause belongs to the company. SinoCon Co., Ltd. www.sinoconsys.com 12 / 12...
