8

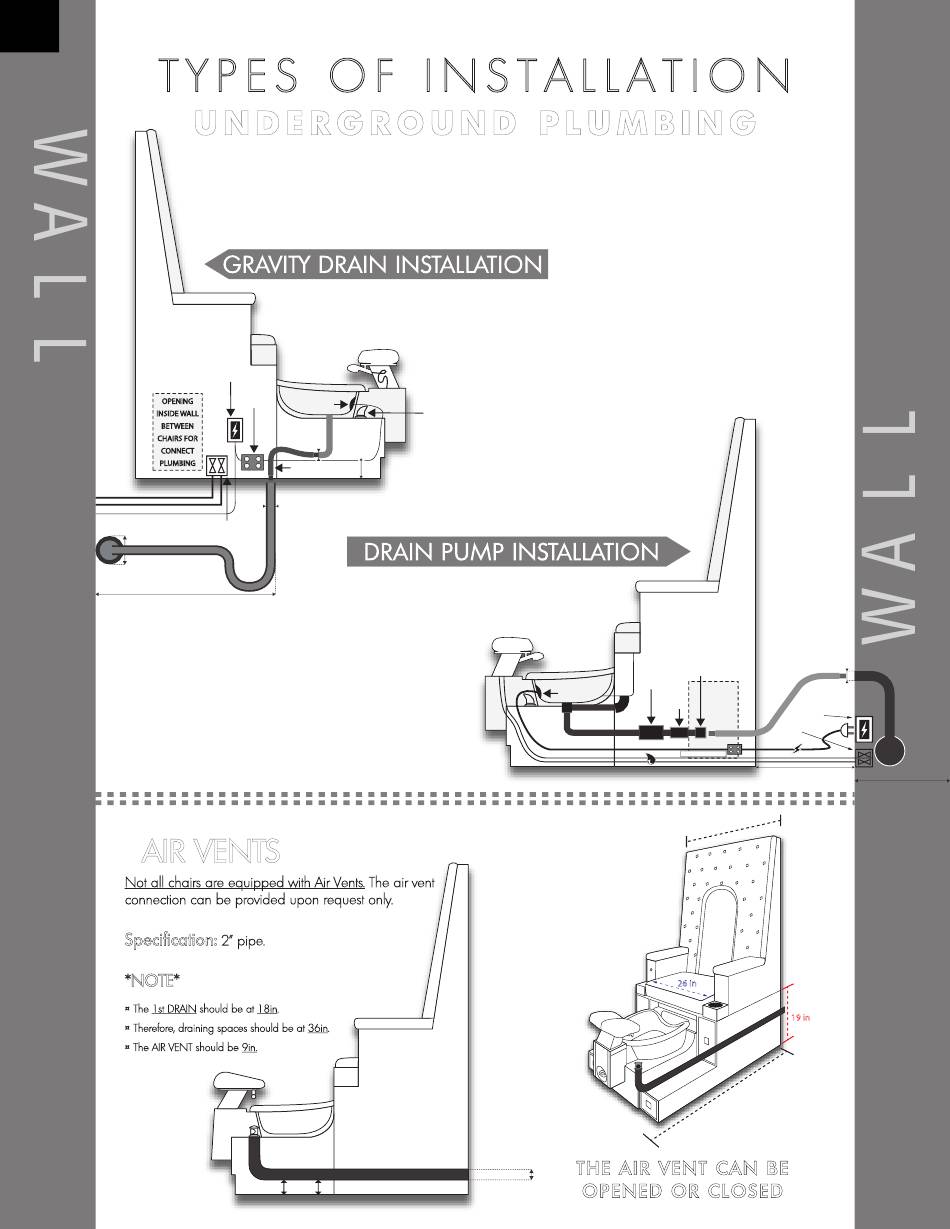

T Y P E S O F I N S T A L L A T I O N
U N D E R G R O U N D P L U M B I N G
SIDE VIEW
OPENING
INSIDE WALL
BETWEEN
CHAIRS FOR
CONNECT
PLUMBING
1/2" or 0.5" (1 cm) HOT / COLD
Water Valve
4" (10 cm)
26-30" (66-76 cm)
AIR VENTS
Not all chairs are equipped with Air Vents. The air vent
connection can be provided upon request only.
Specification:
*NOTE*
The 1st DRAIN should be at 18in.
Therefore, draining spaces should be at 36in.
The AIR VENT should be 9in.
The complex diagram below illustrates the ideal placement and sources of
both water, drainage, and electrical power for the VIP Pedicure Spa Chair.
The utilities should be placed exactly within the footprint of the whole chair.
Electrical Box
GFI Outlet
Distribution
Box
LED Light
1" (2.5 cm)
PVC
4" (10 cm)
Flex Hose
1
" or 1.5" (4 cm)
1/2
2" pipe.
4 in
Hot/Cold
Water Valve
LED Light
Hot/Cold Water Supply
THE AIR VENT CAN BE
2"
OPENED OR CLOSED
SIDE VIEW
3/4" (2cm)
Flex Hose
PVC Slip
OPTIONAL:
Drain Pump
11/2" or 1.5" (4 cm)
Check
Valve
Electrical Box
GFI Outlet
1/2" (1 cm) HOT / COLD
Water Valve
Electrical Wire
Distribution Box
22" (56 cm)
36 in
26 in
19 in
54 in
3" - 4"
8cm – 10cm
