Summary of Contents for YELLOWRIVER YR-COB100W

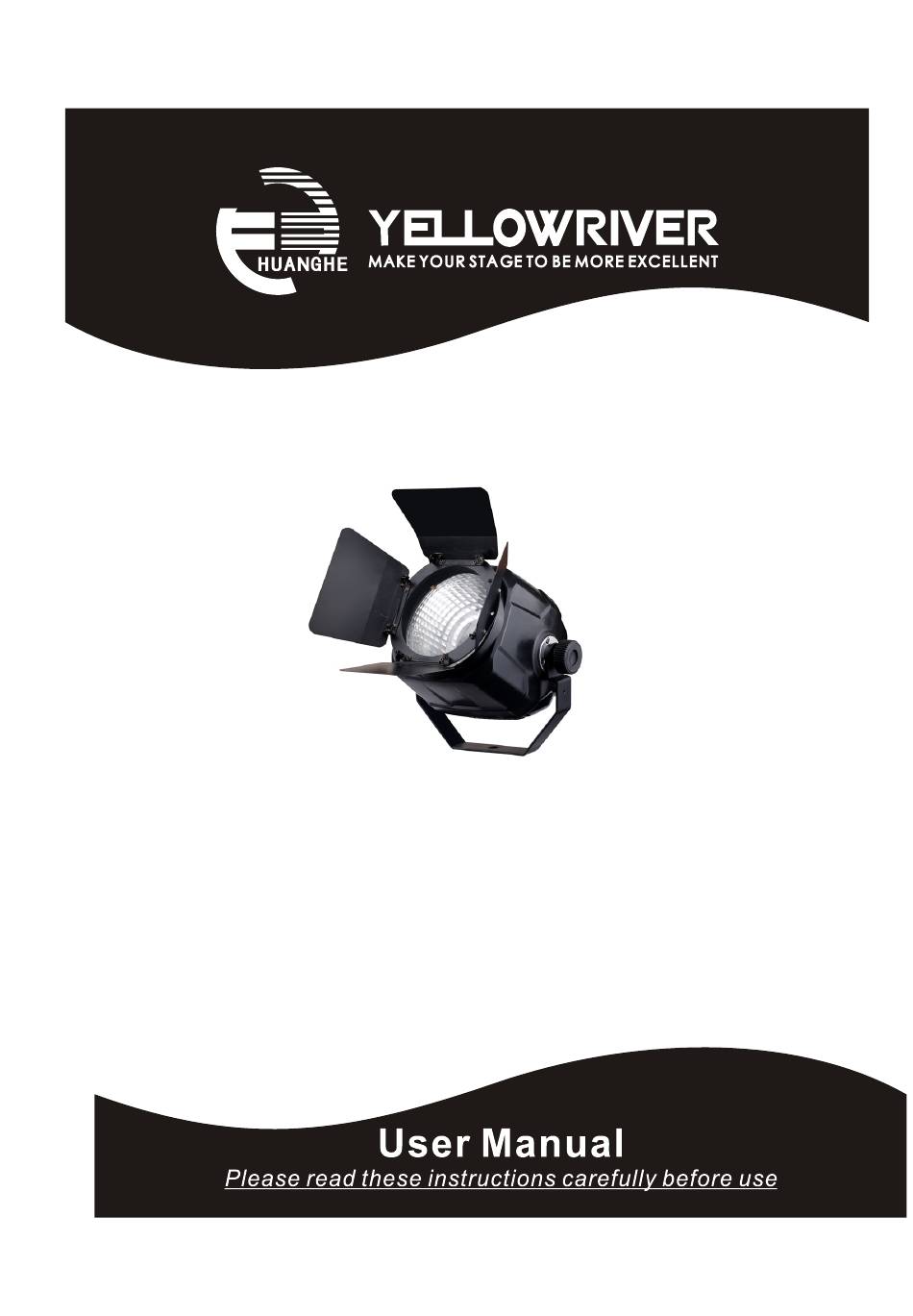

- Page 1 100W White COB LED Model:YR-COB100W...
-
Page 2: Table Of Contents
Contents Section 1.Getting Started Unpacking Safety Instruction Section 2. Set Up Installation Controlling Board Machine Connection Section 3. troubleshooting Troubleshooting Section 4. Reference Control Menu DMX Protocol Dimmer Curve Specification Section 1.Getting Started ... -
Page 3: Safety Instruction
Safety Instruction For your safe, please read this user manual carefully before turn on the fixture. This machine should be operated by qualified engineer！ Please conserve this manual as operation guidance. If you sell this product to other user, please make sure that they also receive this user manual. -
Page 4: Section 2. Set Up Installation
or after-sale service center. Section 2. Set Up Installation Controlling Board Machine connection Installation This machine should be mounted through the screw holes of truss. Safety rope is a must to fix fixture well. Make sure truss and safety rope have strong load capacity to bear more than 3 times of machine weight . -
Page 5: Controlling Board
Controlling Board MENU UP DOWN ENTER Front display panel LED Display Panel Button Switch menu function Menu Scroll upwards Scroll downwards DOWN Confirm by pressing ENTER ENTER DMX Signal Input 3 PIN XRL port for DMX512 signal input ( daisy chain); DMX signal output 3 PIN XRL Port for DMX512 signal output ( daisy chain);... -
Page 6: Section 3. Troubleshooting
Cable Connectors Cables must have a male XLR connector on one end and a female XLR connector on the other end. A word on termination: DMX is a resilient communication protocol, however errors still occasionally occur. Termination reduces signal errors, and therefore best practices include use of a terninator in all circumstances. -
Page 7: Section 4. Reference
addressing of the controller(DMX fixtures mode operation) data link Inspect cables and correct poor connections connection and/or broken cables. Conflict between tracking and vector Eliminate scene cross-fade on controller control Data link Insert termination plug in output of last fixture terminated Defective fixture or Bypass fixtures one at a time until normal... -
Page 8: Control Menu
Control Menu Menu Function d3-- DMX 3 channel control(need connecting controller) d.1- DMX 1 channel control(need connecting controller) n--- r000 to r255: White from dark to bright F--- F000 to F255：flash speed，from slow to fast T--- on: high temperature with half power function on off:high temperature with half power function off When the LED board temperature increase up to be 80℃，... -
Page 9: Dimmer Curve
Dimmer Curve： Ramp Effect Menu Tup(ms) Tdown(ms) dr-0 Standard Dimmer Curve dr-1 1010 Dimmer Curve dr-2 1210 1320 Dimmer Curve dr-3 1600 1710 Dimmer Curve dr-4 1850 1980 Dimmer Curve Specification Voltage：AC110V-240V Frequency：50/60Hz Machine Power：100W LED source: 100W White LED(Pure white(6000-6500K)/Warm white(3000-3200K)/Cold white(7500-8000K)/ LED QTY：1pcs Strobe: 0~20 Hz... - Page 10 本公司有权对此份产品说明书进行修改，恕不另行通知。 Our company reserve right to revise this user manual without notice! Innovation | Efficiency | Dedication | Harmonious...
