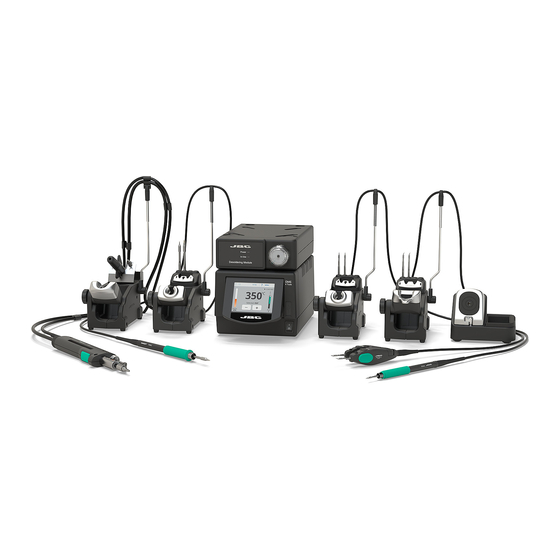

- Page 1 INSTRUCTION MANUAL 4 Tools DME Station with Electric Pump Ref. DMPSE-QA...
-
Page 2: Table Of Contents
Packing List The following items are included: DME Control Unit ..1 unit Electric Desoldering ESD Tip Cleaner .... 1 unit Ref. DME-1A (120V) Module ......1 unit Ref. CL8499 DME-2A (230V) Ref. MSE-A DME-9A (100V) Stand ........2 units Stand ......... 1 unit Stand ......... - Page 3 Union Flanges ....1 unit Ref. 0011356 Power cord ......1 unit Stand Cable ....4 units Manual ........1 unit Ref. 0010569 (230V) Ref. 0011283 Ref. 0023136 0013671 (100/120V) w w w.jbctools.com INSTRUCTION MANUAL 4 Tools DME Station with Electric Pump Ref. DMPSE-QA...
-
Page 4: Stand
Connections Stand Cable Equipotential connection Ref. 0011283 RJ45 connector for LAN USB-B connector RJ12 connector for Robot or Smart Fume Extractors RJ12 connector for PSE Power Socket General Purpose Handle Desoldering Iron Ref. T245-A Ref. DR560-A Stand Stand Ref. AD-SE Ref. -
Page 5: Electric Desoldering Module
w w w.jbctools.com Adjustable Precision Micro Purpose Tweezers Handle Ref. AM120-A Ref. T210-A Stand Stand Ref. AD-SE Ref. AM-SA Module Cable Ref. 0014874 Electric Desoldering Module Ref. MSE-A To another peripheral To Pedal Ref. P-405 Suction Filter Ref. 0821830... - Page 6 Features 3.5” Color TFT Touch screen USB-A connector Tilt the display for easy reading Main Switch Work Screen The DME-A offers an intuitive user interface which provides quick access to the station parameters. Default PIN: 0105 Station Information Help for each parameter Station Lock Cartridge 17:14...
- Page 7 Insert a USB flash drive into the USB-A connector to save your soldering process in csv format. Files Station update Download the JBC Update File from www.jbctools.com/software.html Insert the USB flash drive with the file downloaded to the station. Update...
- Page 8 MSE / Pedal Initial Setup After connecting the electric desoldering module (MSE-A), a popup window is opened. Peripherals 17:14 17:14 Peripherals Peripherals Port Port MS a MS a PERIPHERAL PD a Peripheral 1 plugged: Electric Suction Module Setup Postpone 1. To configure your Electric Suction Module 2.
- Page 9 Operation The JBC Most Efficient Soldering System Our revolutionary technology is able to recover tip temperature extremely quickly. It means the user can work at a lower temperature and improve the quality of soldering. The tip temperature is further reduced thanks to the Sleep and Hibernation modes which increase up to 5 times the life of the tip.
- Page 10 Cartridge Adjustment Insert the cartridge model and the station will recognize its characteristics (size and shape) to provide better temperature precission. 17:14 After inserting Tools T245 - port 3 the cartridge, introduce Cartridge Adjust C245-003 the last 3 Temperature adjust 0ºC numbers of Temp.
- Page 11 w w w.jbctools.com Quick Tip Changer Save time and change cartridges safely without switching the station off. Be careful, the cartridges may be hot, when placing them in the storage rack. 1. Removing 2. Inserting 3. Fixing Place the cartridge in the Place the handle on top Use the holes to fix the extractor and pull the handle...
- Page 12 AM120 Changing cartridges 1. Unlocking 2. Removing Unlock the fixing knobs. Place the cartridges in the extractor and pull the tweezers to remove them. Place the tweezers on top of the new cartridge Use the grooves to insert the cartridges as and slightly press down.
- Page 13 w w w.jbctools.com Tip Cleaner Improve thermal transfer by cleaning the tip after each solder joint. Brass wool Ref. CL6210 Sponge Very effective cleaning Ref. S0354 method. It leaves a small layer of solder on the tip to The least harmful prevent oxidation between cleaning method.
- Page 14 MSE Changing filters - Keep the casing clean by using a damp cloth. Periodically check all cable and tube connections. - Keep filters clean to ensure proper solder suction and replace them when necessary. Suction filter Important Ref. 0821830 Do not use sharp pointed objects to open the suction filter.
- Page 15 w w w.jbctools.com Glass Solder Collector Cleaning 1. Removing the lid 2. Cleaning Check internal joint Remove the coil and clean the inside of the glass solder collector with the cleaning stick. Check filter The lid must be unscrewed with the DR560 in a Check the filter and replace it if it is dirty or vertical position.
- Page 16 If necessary use a tool to lever it off. and replace it in the station. - Replace any defective or damaged pieces. Use original JBC spare parts only. - Repairs should only be performed by a JBC authorized technical service.
- Page 17 w w w.jbctools.com Safety It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. - Do not use the units for any purpose other than soldering or rework. Incorrect use may cause fire. - The power cord must be plugged into approved bases. Be sure that it is properly grounded before use.
- Page 18 有害物质含量表 产品中有害物质的名称及含量 有害物质 部件名称 六价铬 多溴联苯 多溴二苯醚 铅(Pb) 汞(Hg) 镉(Cd) (Cr(VI)) (PBB) (PBDE) 烙铁头 手柄 电源线 主机 电源插座 保险丝 主开关 电位连接 变压器 线路板 O 表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572 规定的限量要求以下。 X 表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572 规定的限量要求。...
- Page 19 w w w.jbctools.com Specifications 4 Tools DME Station with Electric Pump DMPSE-1QA / DMPSE-2QA / DMPSE-9QA DME-1A 120V 50/60Hz. Input fuse: 6A. Output: 23.5V DME-2A 230V 50/60Hz. Input fuse: 3.15A. Output: 23.5V DME-9A 100V 50/60Hz. Input fuse: 8A. Output: 23.5V - Temperature Range: 90 - 450 °C (190 - 840 ºF) - Idle Temp.
- Page 20 In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased. Get 1 extra year JBC warranty by registering here: https://www.jbctools.com/productregistration/ within 30 days of purchase. This product should not be thrown in the garbage.
