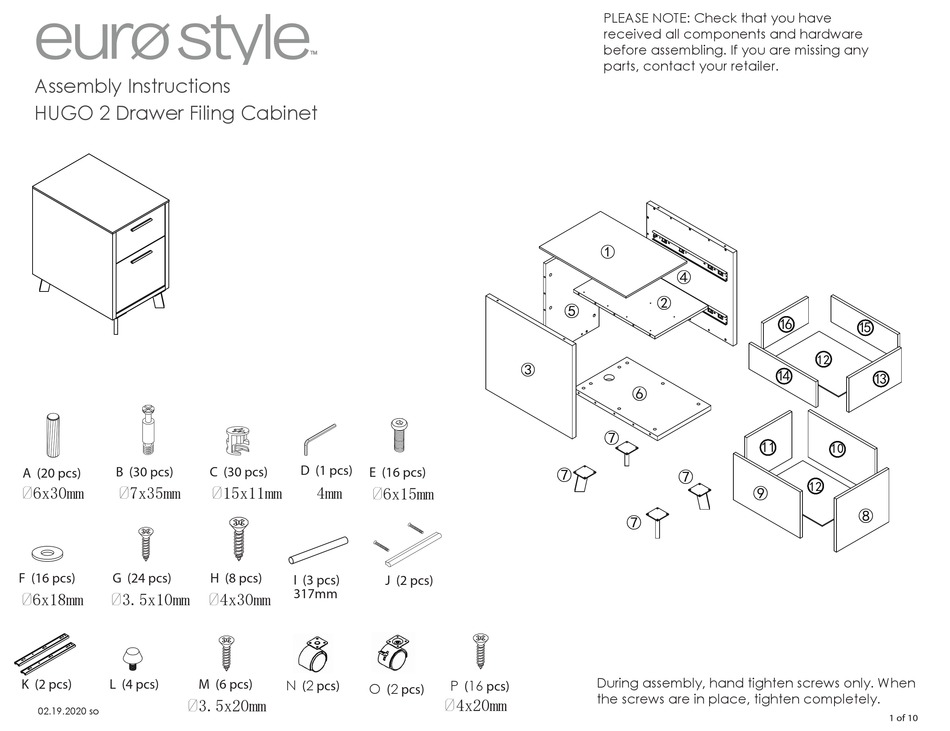

Euro Style HUGO 2 Assembly Instructions Manual

Assembly Instructions
HUGO 2 Drawer Filing Cabinet
B (30 pcs)
A (20 pcs)
Ø6x30mm Ø7x35mm
F (16 pcs) G (24 pcs)
Ø6x18mm Ø3.5x10mm
K (2 pcs) L (4 pcs)
Ø3.5x20mm
02.19.2020 so
D (1 pcs)
C (30 pcs) E (16 pcs)
Ø15x11mm
Ø6x15mm
4mm
H (8 pcs)
I (3 pcs)
317mm
Ø4x30mm
M (6 pcs) N (2 pcs)
O (2 pcs)
③
⑦
J (2 pcs)
P (16 pcs)
Ø4x20mm
PLEASE NOTE: Check that you have
received all components and hardware
before assembling. If you are missing any
parts, contact your retailer.
①
④
②
⑤
⑥
⑦
⑦
⑦
During assembly, hand tighten screws only. When
the screws are in place, tighten completely.
16
15
12
14
13
11
10
12
⑨
⑧
1 of 10
