MP3 CD PLAYER LTS.CDP

Operation manual

Please follow the instructions in this manual to obtain the optimum results from this unit.

We also recommend that you keep this manual handy for future reference.

Linear Technologie • 11 rue du Puits Rochefort • 42 100 Saint-Etienne

V.2017

Tél: +33 (0)4 77 81 49 49 • Fax: +33 (0)4 77 81 49 40 • www.lineartech.fr

Table of Contents

Need help?

Do you have a question about the LTS.CDP and is the answer not in the manual?

Questions and answers

Summary of Contents for LINEAR SOUND LTS.CDP

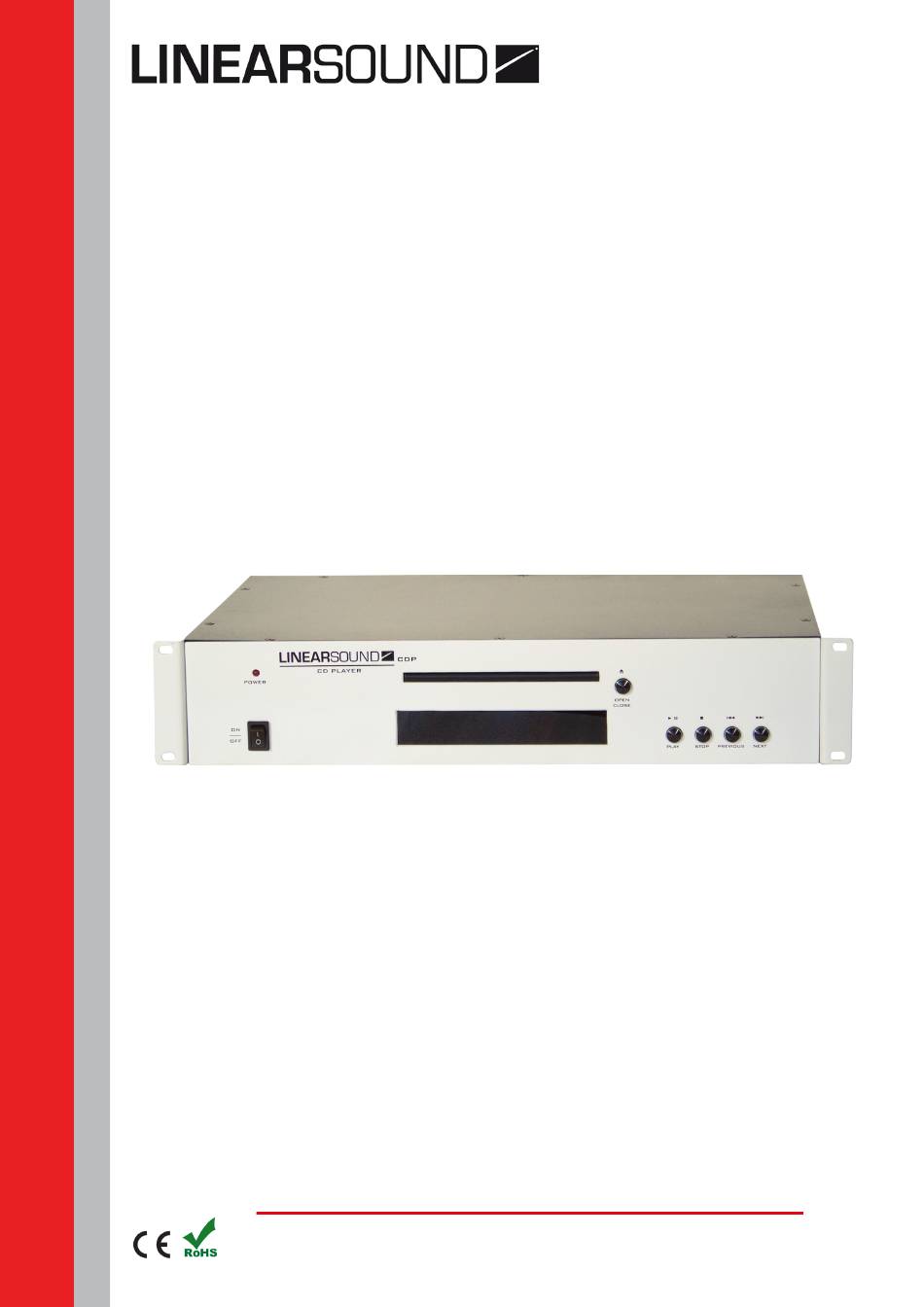

Page 1 MP3 CD PLAYER LTS.CDP Operation manual Please follow the instructions in this manual to obtain the optimum results from this unit. We also recommend that you keep this manual handy for future reference. Linear Technologie • 11 rue du Puits Rochefort • 42 100 Saint-Etienne V.2017...
Page 2 TABLE OF CONTENTS 1. Safety precautions Page 3 2. General description Page 5 3. Features Page 5 4. Nomenclature and functions Page 5 a. Front panel b. Rear panel 5. CD operation Page 6 6. Applications Page 6 7. Specifications Page 6 8.
Page 3 1. SAFETY PRECAUTIONS • Be sure to read the instructions in this section carefully before use. • Make sure to observe the instructions in this manual as the conventions of safety symbols and messages regarded as very important precautions are included. •...
Page 4 • To prevent a fire or electric shock, never open or remove the unit case as there are high voltage components inside the unit. Refer all servicing to your nearest dealer. • Do not place cups, bowls, or other containers of liquid or metallic objects on top of the unit.
Page 5 Note : An all-pole mains switch with a contact separation of at least 3 mm in each pole shall be incorporated in the electrical installation of the building. 2. GENERAL DESCRIPTION The CDP is a public address amplifier switch with can provide an ideal public address solution from small to big places such us mosques, schools, hotels and factories to train stadium and air stations.
Page 6 5. CD OPERATION 1. Press «power» switch on power supply. 2. Button function. 3. Dish placements tray up. 4. Press key «open/close» tray close start read. 5. Play diskette : PLAY / PAUSE STOP / RETURN PREVIOUS NEXT 6. CD diskette play •...
Page 7 8. DIMENSIONAL DIAGRAM Unit : mm Keep the unit’s all sides over 10 cm away the objects that may obstruct air flow to prevent the unit’s internal temperature rise.
Page 8 Linear Technologie • 11 rue du Puits Rochefort • 42 100 Saint-Etienne Tél: +33 (0)4 77 81 49 49 • Fax: +33 (0)4 77 81 49 40 • www.lineartech.fr...
