Owner's Manual

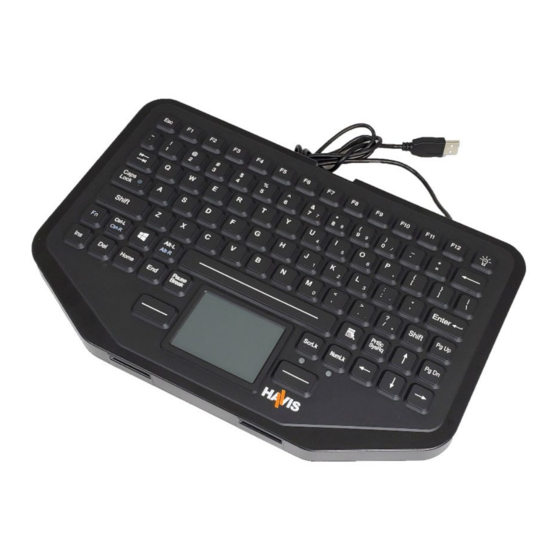

Havis Rugged USB Keyboard

KB-106

Before Beginning

Havis is pleased to provide this Owner's Manual to aid in the proper installation and use of the KB-106

Rugged USB Backlit Keyboard.

For questions regarding the set-up of your KB-106 Rugged USB Keyboard, please contact Havis at 1-800-524-9900

or visit www.havis.com for additional product support and information.

• NEVER STOW OR MOUNT THE RUGGED KEYBOARD DIRECTLY IN A VEHICLE AIRBAG DEPLOYMENT ZONE.

• DO NOT USE RUGGED KEYBOARD WHILE DRIVING.

• READ ALL INSTRUCTIONS THOROUGHLY BEFORE BEGINNING INSTALLATION.

• RECOMMENDED TO SET THE CONNECTED COMPUTER'S POWER OPTIONS TO "NEVER" SLEEP.

• RECOMMENDED TO SET THE CONNECTED COMPUTER'S BIOS TO "ENABLE USB WAKE SUPPORT".

 Push 'F2' key during the computer's boot sequence

 Select SETTINGS

LPS-106_OMN_12-19

 Select POWER MANAGEMENT

 Select USB WAKE SUPPORT

 Check the box for ENABLE USB WAKE SUPPORT

 Left Click: APPLY

 Left Click: EXIT

Havis, Inc.

75 Jacksonville Road

Warminster, PA 18974

Table of Contents

Do you have a question about the KB-106 and is the answer not in the manual?

Page 1 KB-106 Before Beginning Havis is pleased to provide this Owner’s Manual to aid in the proper installation and use of the KB-106 Rugged USB Backlit Keyboard. For questions regarding the set-up of your KB-106 Rugged USB Keyboard, please contact Havis at 1-800-524-9900 or visit www.havis.com for additional product support and information.
Page 2 Precautions • Do not place metal objects or containers of liquid on top of the Rugged Keyboard • Do not leave the Rugged Keyboard in a high temperature environment (greater than 90°C, 194°F) for a long period of time Specifications Working Voltage Standard USB (+5V DC ±...
Page 3 Parts Included Rugged Keyboard (87 Keys – US layout) USB connector Backlight Adjustment Button 87 Keys (US key layout) Mouse Pad Mounting Holes (bottom of Keyboard) VESA 75 mounting pattern AMPS mounting pattern...
Page 4 VESA 75 or AMPS mounting hole pattern. 2) If not using the Havis Keyboard Mount, determine if your mounting location is equipped with VESA 75 or AMPS mounting pattern. Install the Rugged Keyboard to your mounting device using (4) M4 x 0.7mm screws (Hardware Kit Item 1).
Page 5 Related Products Havis offers a wide variety of accessory products specifically for use with our Rugged USB Keyboards. For more information or to order, please visit www.havis.com. C-KBM-201 Keyboard Mount Quickly dock and undock your Havis Rugged Keyboard with this equally rugged mount.
