Summary of Contents for Anglerfish Creative Lighting TRIGGER V2.0

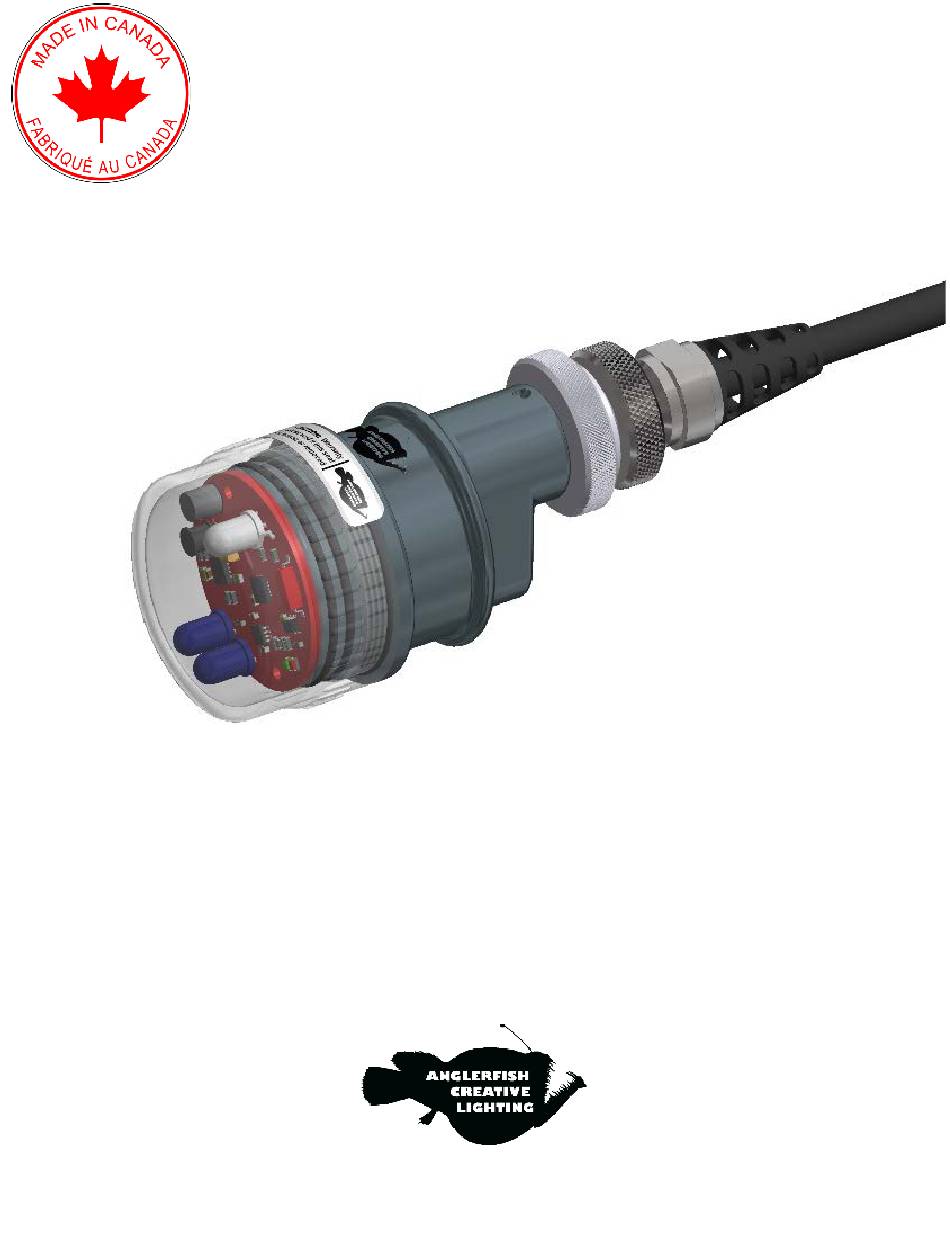

  • Page 1 UIDE V2.0 NGLERFISH RIGGER...

  • Page 3: Table Of Contents

    TURNING ON ............... 4 TURNING OFF ..............6 SWITCHING MODES ............7 LOW BATTERY INDICATOR .......... 7 CARE & MAINTENANCE ..........8 CHARGING ................8 TROUBLESHOOTING ............9 SPECIFICATION ............... 11 COMPLIANCE ..............12 Anglerfish Crea�ve Ligh�ng | Anglerfish Trigger V2.0...
  • Page 4 Revision Sheet EVISION UMBER ESCRIPTION 2016 RAFT 2017 SSUED FOR PRINT 2017 V2.0 PDATED FOR p.ii Anglerfish Crea�ve Ligh�ng | Anglerfish Trigger V2.0...

  • Page 5: Quick Start

    6. Op�cal or electrical sync cable (not included*) *You will need an op�cal sync cable or an electronic flash sync cable with a Nikonos 5 pin connector to connect the Anglerfish Trigger to the remote strobe. Anglerfish Crea�ve Ligh�ng | Anglerfish Trigger V2.0...

  • Page 6: Features

    B. Charging LED (Amber) C. Charge complete LED (Green) D. Flash sensors Magne�c switch (mode switch) Nikonos bulkhead c/w cap G. Sea & Sea type op�cal bulkhead H. Velcro �e groove Zip �e groove Anglerfish Crea�ve Ligh�ng | Anglerfish Trigger V2.0...

  • Page 7: Optical Sync Cable

    Avoid bending the fiber op�cs cable. If possible, use the shortest cable available. Nikonos bulkhead Sea & Sea Op�cal bulkhead Anglerfish Crea�ve Ligh�ng | Anglerfish Trigger V2.0...

  • Page 8: Electronic Sync Cable

    To wake up the trigger from sleep mode simply hold the trigger in one hand and strike your wrist against your other hand. The impact will Anglerfish Crea�ve Ligh�ng | Anglerfish Trigger V2.0...
  • Page 9 By impac�ng the trigger twice more, the trigger turns on. For every impact the menu LED will light up purple. If the shock due to impact is Anglerfish Crea�ve Ligh�ng | Anglerfish Trigger V2.0...

  • Page 10: Turning Off

    Impact once to Wait for 2 blinks Impact twice more wakeup (Red or Blue) to enter on mode To turn off the trigger simply follow the same procedure as required for turning on the unit. Anglerfish Crea�ve Ligh�ng | Anglerfish Trigger V2.0...

  • Page 11: Switching Modes

    In this situa�on, its recemented to Low Battery Indicator blue use the mode. If the trigger’s batery power is low, the trigger’s menu LED blue will blink for five cycles and the trigger will Anglerfish Crea�ve Ligh�ng | Anglerfish Trigger V2.0...

  • Page 12: Care & Maintenance

    USB connec�on such as a laptop or a mobile phone. It can also be power with the provided charger adaptor. The charger comes with adaptors for US, EU, Australia and Asia. Anglerfish Crea�ve Ligh�ng | Anglerfish Trigger V2.0...

  • Page 13: Troubleshooting

    Op�cal Trigger not Working: If the op�cal trigger does not trigger the remote strobe, remove the fiber op�c cable from the unit and inspect the small high power LED inside the op�cal bulkhead. Operate Anglerfish Crea�ve Ligh�ng | Anglerfish Trigger V2.0...
  • Page 14 Inspect the bulkhead for debris, salt or fouling. Cleaning the inside of both the remote strobe and the trigger op�cal bulkheads with rubbing alcohol and Q-Tips will ensure maximum light p.10 Anglerfish Crea�ve Ligh�ng | Anglerfish Trigger V2.0...

  • Page 15: Specification

    100-240Vac Charger Rated Frequency 50-60Hz Sleep Mode Opera�ng Time 200 days (full charge) On Mode Opera�ng Time ~50 hrs (red mode), ~38 hrs (blue mode) Weight, Dry (Submerged) ~125 grams (-65 grams) p.11 Anglerfish Crea�ve Ligh�ng | Anglerfish Trigger V2.0...

  • Page 16: Compliance

    For disposal please take this product to a designated electronic waste recycling or disposal area. Charger: The third-party USB charger provided with the Anglerfish Trigger is in compliance with the following regula�ons. p.12 Anglerfish Crea�ve Ligh�ng | Anglerfish Trigger V2.0...
  • Page 17 Anglerfish Crea�ve Ligh�ng | Anglerfish Trigger V2.0...
  • Page 18 QA/QC Check List PCB Tes�ng & Inspec�on  Menu Func�on and Program Test  Op�cal Trigger Circuit Test  Electrical Trigger Circuit Test  Hydrotest (980 kPa)  Serial No. p.14 Anglerfish Crea�ve Ligh�ng | Anglerfish Trigger V2.0...
