Celestron StarSense Explorer DX 130AZ Quick Setup Manual

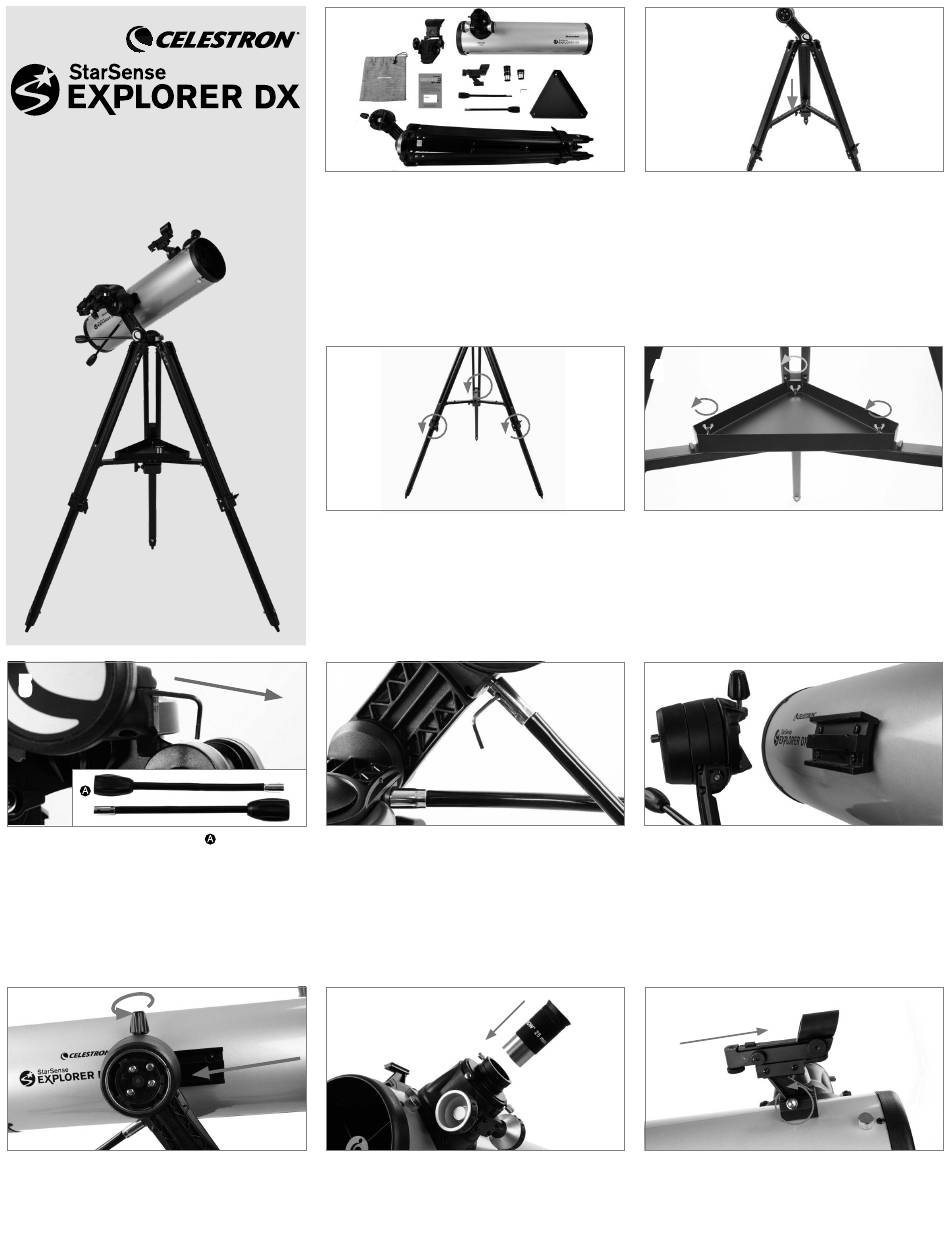

Quick Setup Guide
ENGLISH
5
To attach the slow-motion knobs
first locate the supplied hex key hidden inside the
slot in the front of your mount.
8
Slide the dovetail bar into the clamp at the top of the
mount and tighten the hand knob on the bottom of
the clamp to secure the telescope in place.
1
130AZ

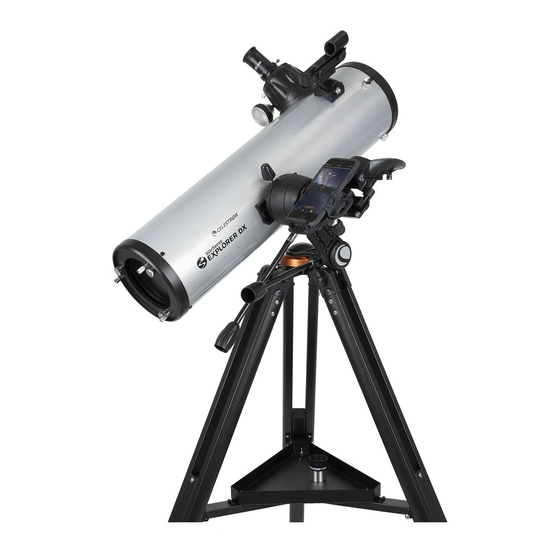

Unpack your telescope and verify that all parts are
ITEM #22461
present. Your StarSense Explorer DX includes:
a telescope tube, a tripod and mount head, an
accessory bag, slow motion controls, an accessory
tray, two eyepieces, a finderscope, a StarSense
phone dock, StarSense Explorer app code card,
and a hex key (hidden inside the slot in the front of
the mount head).
3
Extend the legs of the tripod by loosening the three
hand knobs on each leg. Pull each leg section all
the way out and tighten the hand knobs to secure
them in place.
6
Place the slow-motion control knob over the
to your mount,
D-shaped gear shaft and push inward to make sure
it is fully seated. Use the hex key to tighten the
setscrews onto the gear shaft. Return the hex key to
its storage position in the front of the mount.
9
Remove the cap from the focuser and insert the barrel
of the 25 mmeyepiece into the focuser. Tighten the
setscrew to secure the eyepiece in place.
2
To set up the tripod, spread the legs outward until
they are fully extended and push down the center leg
brace.
4
Place the accessory tray on top of the center brace
and line up the three holes. Insert the three thumb
screws through the bottom of the leg brace and
thread them into the tray.
7
Hold the telescope tube next to the mount with the
dovetail bar on the tube facing the clamp on the top
of the mount arm.
10
Slide the finderscope bracket into the dovetail slot
on the telescope tube near the focuser. The large
window on the finder should be facing the front of
the telescope. Secure the bracket by tightening the
setscrew on the dovetail slot.
ENGLISH | 1
