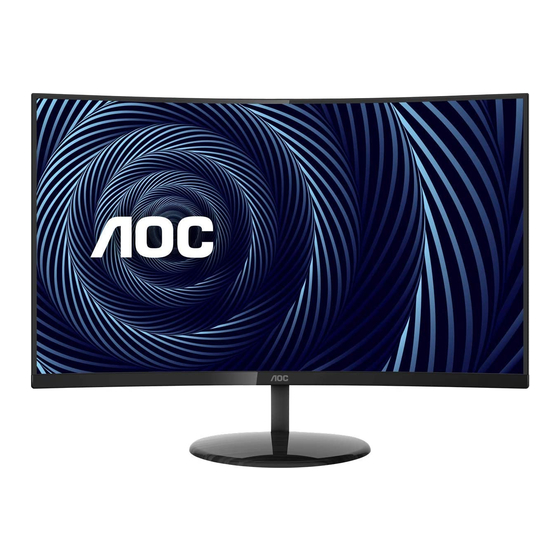

AOC CU32V3 User Manual

AOC CU32V3 User Manual

Led backlight

Advertisement

LCD Monitor User Manual
CU32V3
LED backlight
www.aoc.com
1
©2019 AOC. All Rights Reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CU32V3 and is the answer not in the manual?

Questions and answers

Summary of Contents for AOC CU32V3

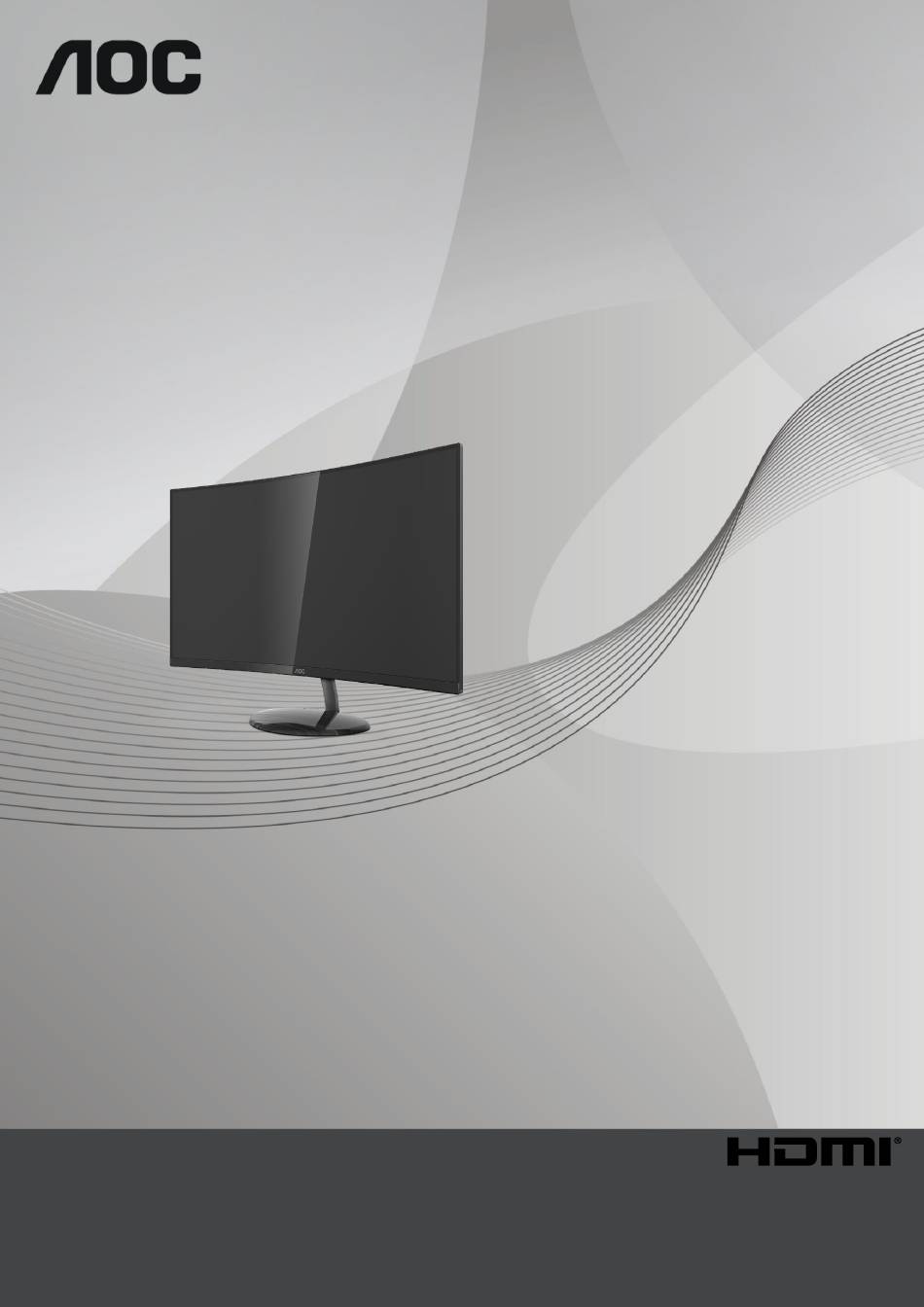

  • Page 1 LCD Monitor User Manual CU32V3 LED backlight www.aoc.com ©2019 AOC. All Rights Reserved.
  • Page 2: Table Of Contents

    Safety ....................................1 National Conventions ..............................1 Power ..................................2 Installation ................................. 3 Cleaning ..................................4 Other ..................................5 Setup ....................................6 Contents in Box ................................. 6 Setup Stand & Base ..............................7 Adjusting Viewing Angle ............................8 Connecting the Monitor ............................. 9 Adjusting .....................................
  • Page 3: Safety

    Safety National Conventions The following subsections describe notational conventions used in this document. Notes, Cautions, and Warnings Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in italic type. These blocks are notes, cautions, and warnings, and they are used as follows: NOTE: A NOTE indicates important information that helps you make better use of your computer system.
  • Page 4: Power

    Power The monitor should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company. The monitor is equipped with a three-pronged grounded plug, a plug with a third (grounding) pin. This plug will fit only into a grounded power outlet as a safety feature.
  • Page 5: Installation

    Installation Do not place the monitor on an unstable cart, stand, tripod, bracket, or table. If the monitor falls, it can injure a person and cause serious damage to this product. Use only a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with this product.
  • Page 6: Cleaning

    Cleaning Clean the cabinet regularly with cloth. You can use soft-detergent to wipe out the stain, instead of strong-detergent which will cauterize the product cabinet. When cleaning, make sure no detergent is leaked into the product. The cleaning cloth should not be too rough as it will scratch the screen surface.
  • Page 7: Other

    Other If the product is emitting a strange smell, sound or smoke, disconnect the power plug IMMEDIATELY and contact a Service Center. Make sure that the ventilating openings are not blocked by a table or curtain. Do not engage the LCD monitor in severe vibration or high impact conditions during operation. Do not knock or drop the monitor during operation or transportation.
  • Page 8: Setup

    Contents in Box CD Manual Warranty card Base Power Cable HDMI Cable DP Cable Not all signal cables (DP, HDMI cables) will be provided for all countries and regions. Please check with the local dealer or AOC branch office for confirmation.
  • Page 9: Setup Stand & Base

    Setup Stand & Base Please setup or remove the base following the steps as below. Setup: Remove:...
  • Page 10: Adjusting Viewing Angle

    Adjusting Viewing Angle For optimal viewing it is recommended to look at the full face of the monitor, then adjust the monitor’s angle to your own preference. Hold the stand so you will not topple the monitor when you change the monitor’s angle. You are able to adjust the monitor as below: NOTE: Do not touch the LCD screen when you change the angle.
  • Page 11: Connecting The Monitor

    Connecting the Monitor Cable Connections In Back of Monitor and Computer: 1. Power 2. Earphone 3. DisplayPort 4. HDMI-2 5. HDMI-1 Connect to PC 1. Connect the power cord to the back of the display firmly. 2. Turn off your computer and unplug its power cable. 3.
  • Page 12: Adjusting

    Adjusting Hotkeys Source/Exit/Up Eco/DCR/Uniformity/Down Clear Vision/Left Volume/Right Power/ Menu/Enter Power/Menu/Enter Press the Power button to turn on the monitor. When there is no OSD, Press to display the OSD or confirm the selection. Press about 2 second to turn off the monitor. Volume/Right When there is no OSD, Press Volume button to active volume adjustment bar, Press Left or Right to adjust volume.
  • Page 13 Clear Vision 1. When there is no OSD, Press the “Left” button to activate Clear Vision. 2. Use the “Left” or “Right” buttons to select between weak, medium, strong, or off settings. Default setting is always “off”. 3. Press and hold “Left” button for 5 seconds to activate the Clear Vision Demo, and a message of “Clear Vision Demo: on”...
  • Page 14: Osd Setting

    OSD Setting Basic and simple instruction on the control keys. Luminance Color Setup Picture Boost OSD Setup Extra Exit Contrast Gamma Gamma 1 Brightness Eco mode Standard Overdrive 1). Press the MENU-button to activate the OSD window. 2). Press Left or Right to navigate through the functions. Once the desired function is highlighted, press the MENU- button to activate it, press Left or Right to navigate through the sub-menu functions.
  • Page 15: Luminance

    Luminance Luminance Color Setup Picture Boost OSD Setup Extra Exit Contrast Gamma Gamma 1 Brightness Eco mode Standard Overdrive Contrast 0-100 Contrast from Digital-register. Brightness 0-100 Backlight Adjustment Standard Standard Mode Text Text Mode Internet Internet Mode Game Game Mode Eco mode Movie Movie Mode...
  • Page 16: Color Setup

    Color Setup Color Setup Picture Boost OSD Setup Extra Exit Luminance Color Temp. Warm LowBlue Mode DCB Mode Green DCB Demo Blue Warm Recall Warm Color Temperature from EEPROM. Normal Recall Normal Color Temperature from EEPROM. Color Temp. Cool Recall Cool Color Temperature from EEPROM. sRGB Recall SRGB Color Temperature from EEPROM.
  • Page 17: Picture Boost

    Picture Boost OSD Setup Extra Exit Luminance Picture Boost Color Setup Bright Frame Brightness H. Position Frame Size Contrast V. Position Bright Frame on or off Disable or Enable Bright Frame Frame Size 14-100 Adjust Frame Size Brightness 0-100 Adjust Frame Brightness Contrast 0-100 Adjust Frame Contrast...
  • Page 18: Osd Setup

    OSD Setup Extra Exit OSD Setup Luminance Color Setup Picture Boost Language English H. Position Transparence V. Position Timeout Break Reminder DP Capability Language Select the OSD language Timeout 5-120 Adjust the OSD Timeout If the DP video content supports DP1.2, please select DP Capability 1.1/1.2 DP1.2 for DP Capability;...
  • Page 19: Extra

    Extra Exit Luminance Picture Boost OSD Setup Extra Color Setup Input Select Auto Image Ratio Wide Resolution : 1920(H)X1080(V) Auto Config. DDC/CI H. Frequency : 67KHz Off Timer Reset V. Frequency : 60Hz Input Select Select Input Signal Source Auto adjust the picture to default. (Only for the Auto Config.
  • Page 20: Exit

    Exit Exit Luminance Color Setup Picture Boost OSD Setup Extra Exit Exit the main OSD...
  • Page 21: Led Indicator

    LED Indicator Status LED Color Full Power Mode White Active-off Mode Orange...
  • Page 22: Driver

    (Screen+) Welcome to “i-Menu” software by AOC. i-Menu makes it easy to adjust your monitor display setting by using on screen menus instead of the OSD button on the monitor. To complete installation, please follow the installation guide. The software Supported operating systems: Windows 10, Windows 8, Windows 7.
  • Page 23: E-Saver

    Welcome to use AOC e-Saver monitor power management software! The AOC e-Saver features Smart Shutdown functions for your monitors, allows your monitor to timely shutdown when PC unit is at any status (On, Off, Sleep or Screen Saver); the actual shutdown time depends on your preferences (see example below).
  • Page 24: Troubleshoot

    Adjust the maximum resolution and frequency that the monitor can handle properly. Make sure the AOC Monitor Drivers are installed. Adjust the Contrast and Brightness Controls. Press to auto adjust. Picture Is Fuzzy & Has Make sure you are not using an extension cable or switch box.
  • Page 25: Specification

    Specification General Specification Model name CU32V3 Driving system TFT Color LCD Viewable Image Size 80.0 cm diagonal Panel Pixel pitch 0.18159mm(H) x 0.18159mm(V) Video HDMI lnterface & DP Interface Display Color 16.7M Colors Horizontal scan range 30k-160kHz Horizontal scan Size(Maximum) 697.306mm...
  • Page 26: Preset Display Modes

    Preset Display Modes HORIZONTAL VERTICAL STANDARD RESOLUTION FREQUENCY(kHz) FREQUENCY(Hz) 640x480@60Hz 31.469 59.940 640x480@72Hz 37.861 72.809 640x480@75Hz 37.500 75.00 800x600@56Hz 35.156 56.250 800x600@60Hz 37.879 60.317 SVGA 800x600@72Hz 48.077 72.188 800x600@75Hz 46.875 75.000 1024x768@60Hz 48.363 60.004 1024x768@70Hz 56.476 70.069 1024x768@75Hz 60.023 75.029 1280x1024@60Hz 63.981 60.020...
  • Page 27: Pin Assignments

    Pin Assignments Pin No. Signal Name Pin No. Signal Name Pin No. Signal Name TMDS Data 2+ TMDS Data 0- DDC/CEC Ground TMDS Data 2 Shield TMDS Clock + +5V Power TMDS Data 2- TMDS Clock Shield Hot Plug Detect TMDS Data 1+ TMDS Clock- TMDS Data 1Shield...
  • Page 28: Plug And Play

    Plug and Play Plug & Play DDC2B Feature This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities.
