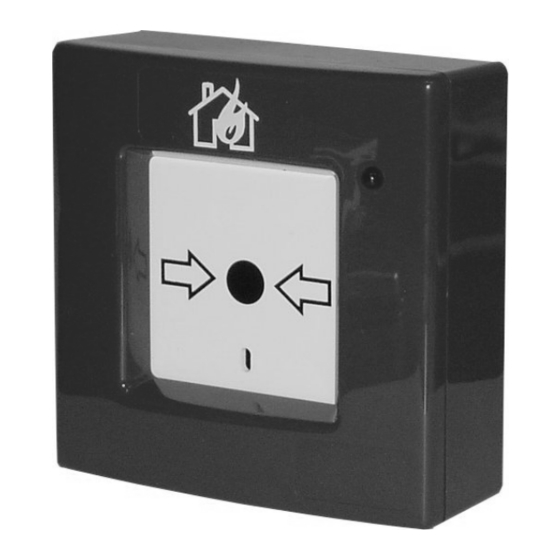

Frangible manual call point

Advertisement

Quick Links

DS1043-002C
ITALIANO
DESCRIZIONE GENERALE
Il pulsante antincendio 1043/143 è utilizzato per
la segnalazione manuale di allarme su impianti
antincendio di tipo convenzionale.
Il pulsante è di tipo a rottura: effettuando una
pressione sulla parte centrale del pulsante, il
frontale
plastico
automaticamente l'interruttore di segnalazione
allarme. L'accensione del LED di colore rosso
indica lo stato di allarme. Per il ripristino
occorrerà aprire il pulsante ed effettuare la
sostituzione del frontale plastico.
Per aprire il coperchio usare la chiave come
descritto in figura 1
Il pulsante 1043/143 è da utilizzarsi con le attuali
centrali
convenzionali
(1043/022A, 1043/024A, 1043/136) e quelle di
prossimo sviluppo.
PULSANTE ANTINCENDIO A ROTTURA
FRANGIBLE MANUAL CALL POINT
si
romperà,
azionando
Urmet
Domus
Sch./Ref. 1043/143
ENGLISH
GENERAL INFORMATION
The manual call point 1043/143 is used to
manually
conventional fire prevention systems.
The 1043/143 is a frangible element type: by
pressing on the operating face of the manual
call point, the frangible element breaks and the
alarm signal will be activated. The red LED
indication indicates, when turned-on, the alarm
condition.
To reset it is necessary to open the manual call
point and replace the frangible element.
To open the enclosure use the key as shown in
Fig. 1.
The manual call point 1043/143 is to be used
with actual (1043/022A, 1043/024A, 1043/136)
and future Urmet Domus conventional control
panels.

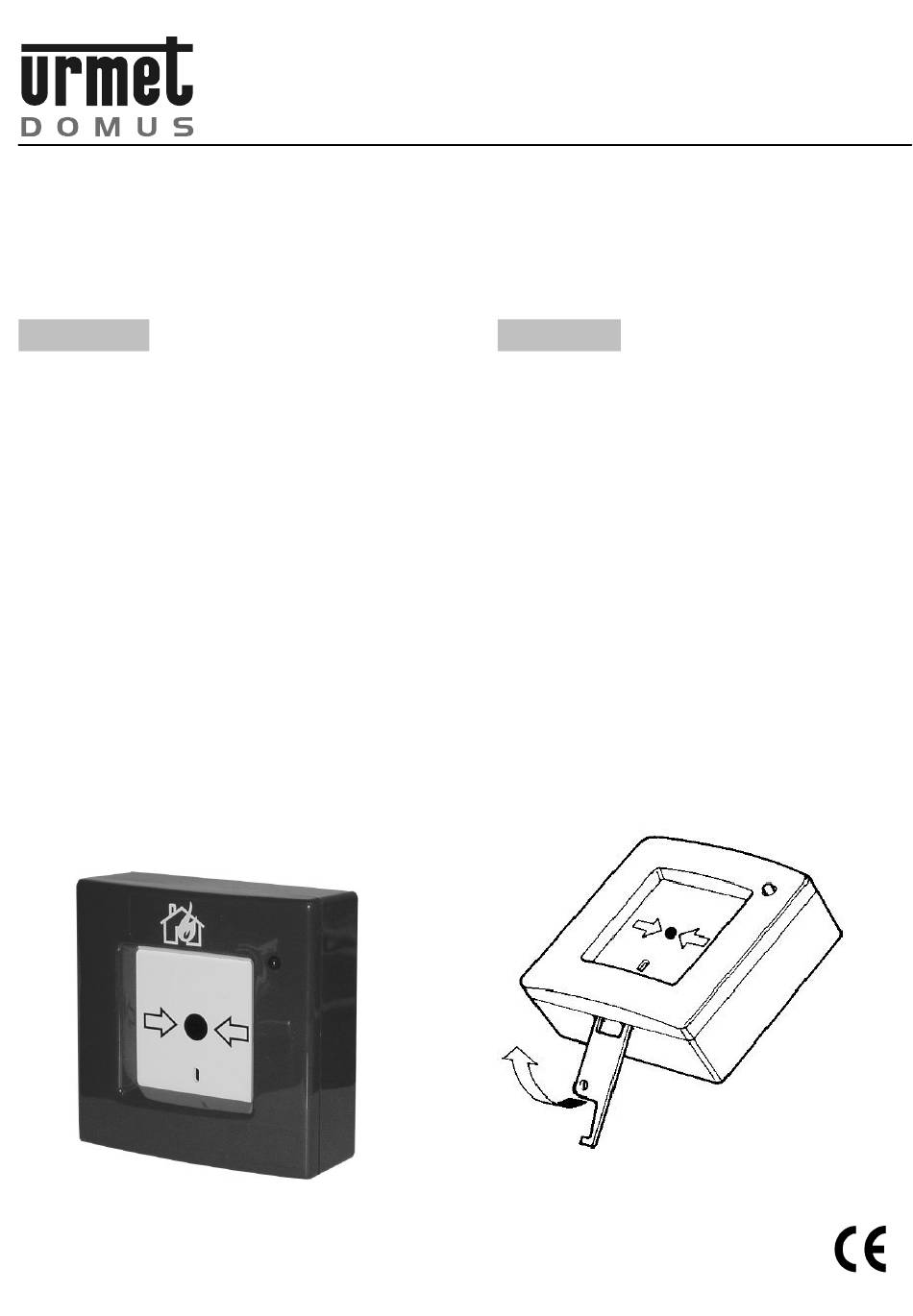

Fig. 1 – Apertura del contenitore
initiate
an
alarm
Opening Enclosure
Mod.
1043
LBT7365
condition
on
