mismaTch 1.1 adaPTer insTrucTions
Thanks for buying Problem solvers
mismaTch 1.1 adaPTers!

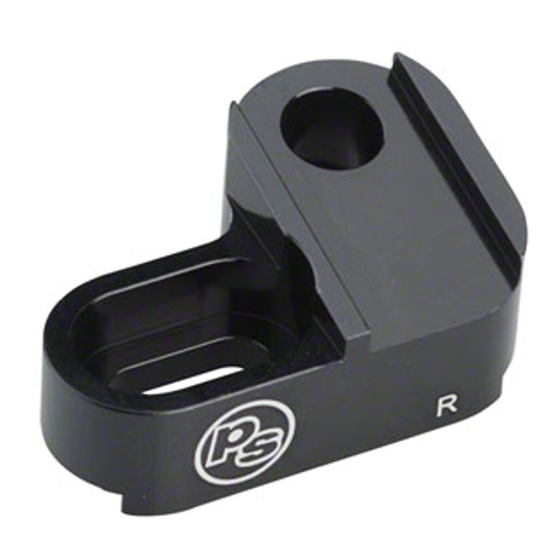

Thanks for purchasing Problem Solvers MisMatch 1.1 Adapters. They allow you
to mate SRAM shifters and Shimano brake levers on one clamp.
WARNING: CYCLING CAN BE DANGEROUS. BICYCLE PRODUCTS SHOULD
BE INSTALLED AND SERVICED BY A PROFESSIONAL MECHANIC. NEVER
MODIFY YOUR BICYCLE OR ACCESSORIES. READ AND FOLLOW ALL PRODUCT
INSTRUCTIONS AND WARNINGS INCLUDING INFORMATION ON THE
MANUFACTURER'S WEBSITE. INSPECT YOUR BICYCLE BEFORE EVERY RIDE.
ALWAYS WEAR A HELMET.
For additional technical and safety information, visit:
www.problemsolversbike.com/safety
comPaTibiliTy/inTended use
Problem Solvers MisMatch 1.1 Adapters are compatible with Shimano I-Spec B
brake levers (2014 and newer); and SRAM MatchMaker compatible shifters.
They are not designed to attach anywhere else on the bike.
Tools required
3mm Allen wrench
Torque wrench
Grease
2
3
ITEM NO.
DESCRIPTION
1
MisMatch Adapter 1.1 - left
2
Barrel Nut
3
M3 x 16mm Retaining Bolt
4
M5 x 10mm Bolt
5
MisMatch Adapter 1.1 - right
6400 West 105th Street / Bloomington, MN 55438 / www.problemsolversbike.com
3
1
5
4
QTY.
1
2
2
2
1
insTallaTion:
1. Install the brake lever as per the manufacturer's instructions.
NOTE: We've left the lever off the bar to better show the next step.
2. Insert the barrel nut (figure 1) and install the retaining bolt (figures 2 & 3).
TIghten the retaining bolt to 2Nm.
Figure 1
Figure 2
Figure 3
6286 01/14
