Box Of Tone 50
Boutique Boost/Overdrive
Contents of this document are ©2016 Pedal Parts Ltd.
No reproduction permitted without the express written
permission of Pedal Parts Ltd. All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BoxOfTone50 and is the answer not in the manual?

Questions and answers

Summary of Contents for FuzzDog BoxOfTone50

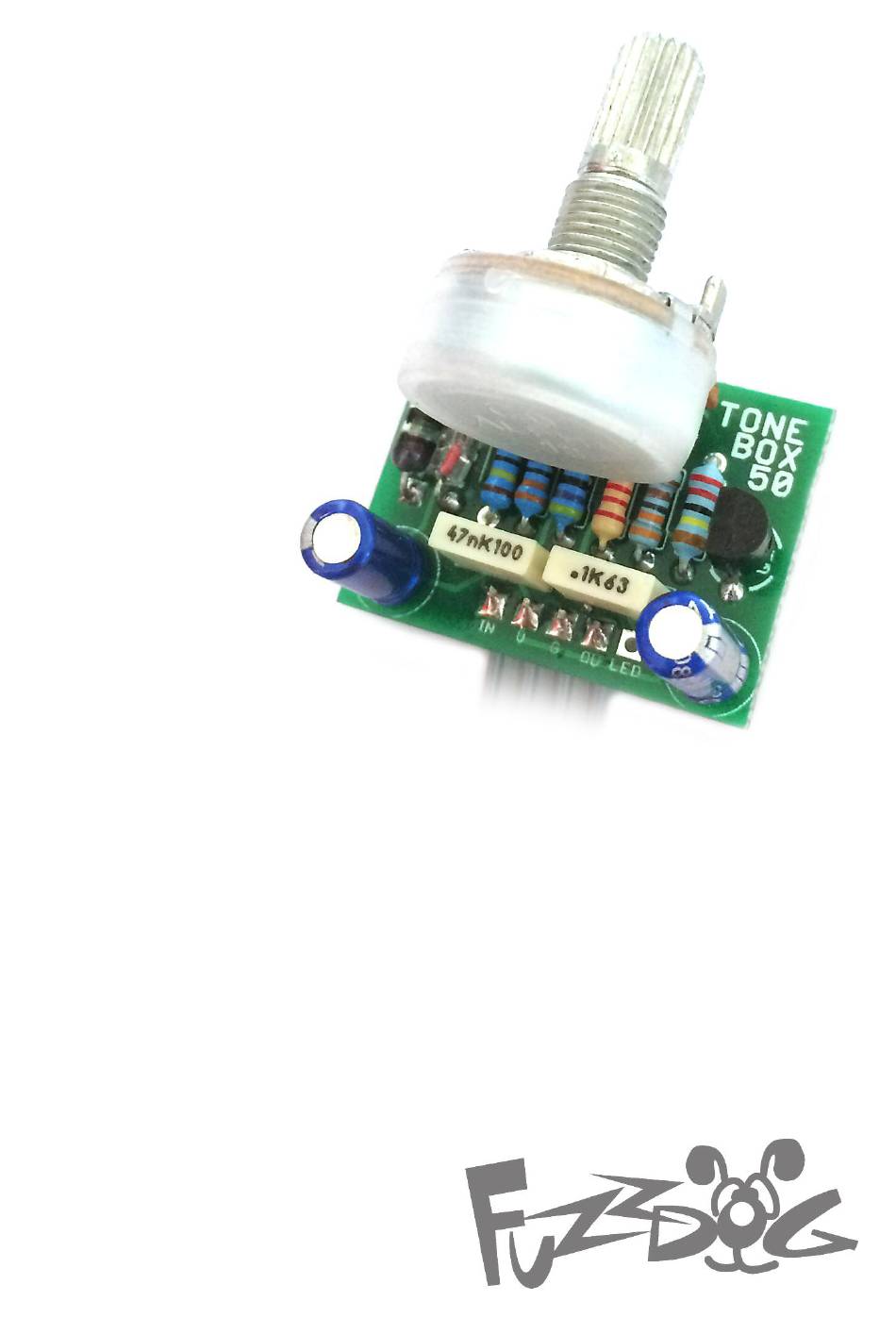

  • Page 1 Box Of Tone 50 Boutique Boost/Overdrive Contents of this document are ©2016 Pedal Parts Ltd. No reproduction permitted without the express written permission of Pedal Parts Ltd. All rights reserved.
  • Page 2 Schematic 330R 2K2 (CLR) D1,2* 1N60 *Many different diodes have been reported in ‘de-gooped’ versions of 100n this pedal. Experiment to find your C3,4 47u electrolytic ideal pair. BAT46 reportedly sound very good. Q1** 2N5088 ** Other transistors can be used. BIAS Again, experiment if you feel like it.

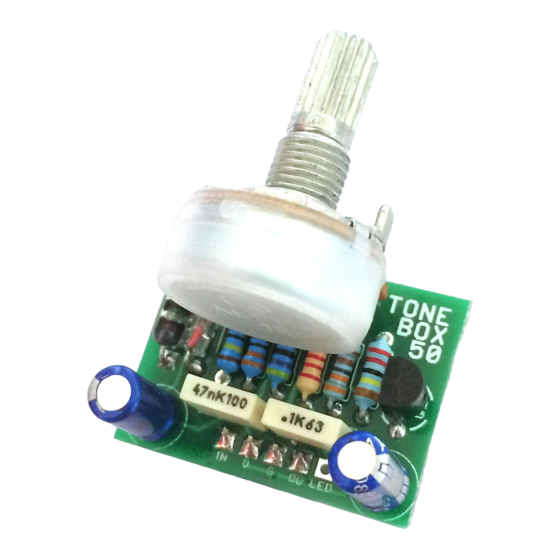

  • Page 3 The power and signal pads on the PCB conform to the FuzzDog Direct Connection format, so can be paired with the appropriate daughterboard for quick and easy offboard wiring. Be very careful when soldering the transistor, LED and diodes. They’re very sensitive to heat.
  • Page 4 Test the board! BATTERY 9V GND Your nice, new circuit board INCLUDING WIRED POTS!!!! UNDER NO CIRCUMSTANCES will troubleshooting help be offered if you have skipped this stage. No exceptions. Once you’ve finished the circuit it makes sense to test is before starting on the switch and LED wiring.
  • Page 5 Wire it up - with battery (if using a daughterboard please refer to the relevant document) BOARD BOARD INPUT BOARD BOARD BOARD BOARD LED+ BOARD BOARD BATTERY This circuit is standard, Negative GND. Your power supply should be Tip Negative / Sleeve Positive. That’s the same as your standard pedals (Boss etc), and you can safely daisy-chain your supply to this pedal.
  • Page 6 Wire it up - DC only version (if using a daughterboard please refer to the relevant document) BOARD BOARD INPUT BOARD BOARD BOARD BOARD LED+ BOARD BOARD This circuit is standard, Negative GND. Your power supply should be Tip Negative / Sleeve Positive. That’s the same as your standard pedals (Boss etc), and you can safely daisy-chain your supply to this pedal.
  • Page 7 Drilling template Hammond 1590B Recommended drill sizes: 60 x 111 x 31mm Jacks 10mm Footswitch 12mm DC Socket 12mm This template is a rough guide only. You should ensure correct marking of your enclosure before drilling. You use this template at your own risk. Pedal Parts Ltd can accept no responsibility for incorrect drilling of enclosures.
