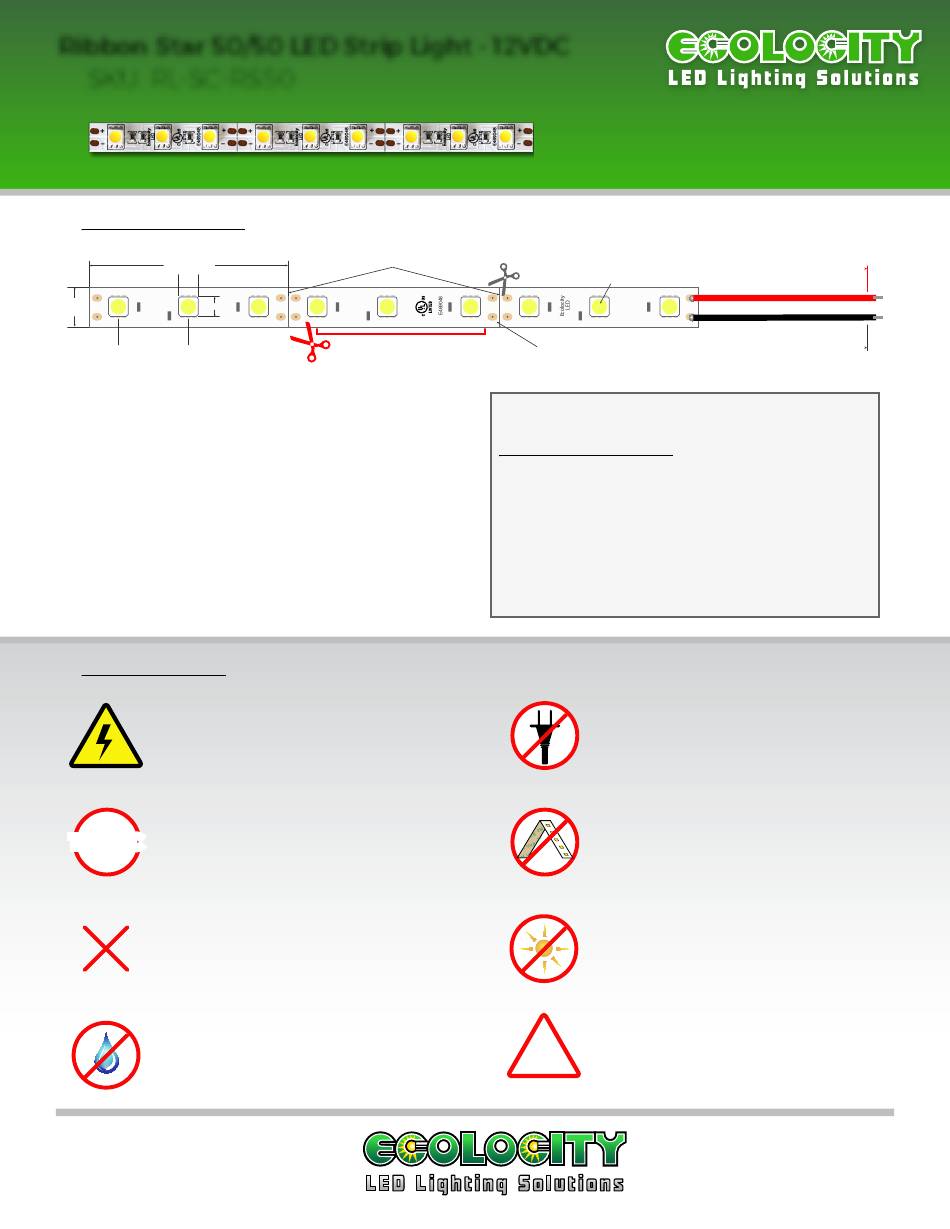

ECOLOCITY RL-SC-RS50 Connection Manual

Ribbon Star 50/50 LED Strip Light - 12VDC
SKU: RL-SC-RS50

SPECIFICATIONS

1.97" (5cm)
5mm
+
0.40"
B
5mm
(1cm)
G
R
0.69" (1.75cm)
Product SKU :
LED Size :
LED Quan�ty :
Input Power :
Wa�s :
Max Serial Connec�on :
Opera�ng Temp :
Beam Angle :
Ra�ng :
Warranty Period :

PRECAUTIONS

WARNING – This product should be
installed, cut and connected only by a
qualified professional.
12VDC 12VDC
Use 12VDC Input Only!
120VAC
DO NOT use AC Input!
This product is not designed to be
installed in wet or damp environments.
EcolocityLED.com
info@EcolocityLED.com
Cut Lines
12VDC
+
B
G
R
Never cut outside
of cut lines!!
RL-SC-RSU
5050 SMD
3 LEDs per 1.97"
12VDC Constant Voltage
4.6W per foot
20�
-4° ~ 113°F
120°
Dry
2 Years
5050 SMD LEDs
12VDC
+
B
G
R
Copper Pads
for Connections.
Connections can be made
at any point strip light.
Input Power: 12VDC Constant Voltage
Power supply equa�on
X * 4.60 = Y
X = linear strip light footage
y= minimum transformer wattage
NEVER cut, connect, or join wires while
product is connected to a live power
source.
DO NOT bend or crease the strip in a
manner that will damage the conduc-
tivity of the circuit board.
DO NOT use in direct sunlight.
DO NOT use in environments over 113°F.
DO install on a metal heat sink.
!
DO NOT exceed 20ft serial connection!
BE CERTAIN your 12VDC source and
wire gauge is suffice for powered load.
255 Distribution Dr. #104
Sparks, NV 89441, USA
E C O L O C I T Y L E D . C O M
7 7 5 - 6 3 6 - 6 0 6 0
DC +
22AWG Stranded Wire
DC -
775-636-6060
