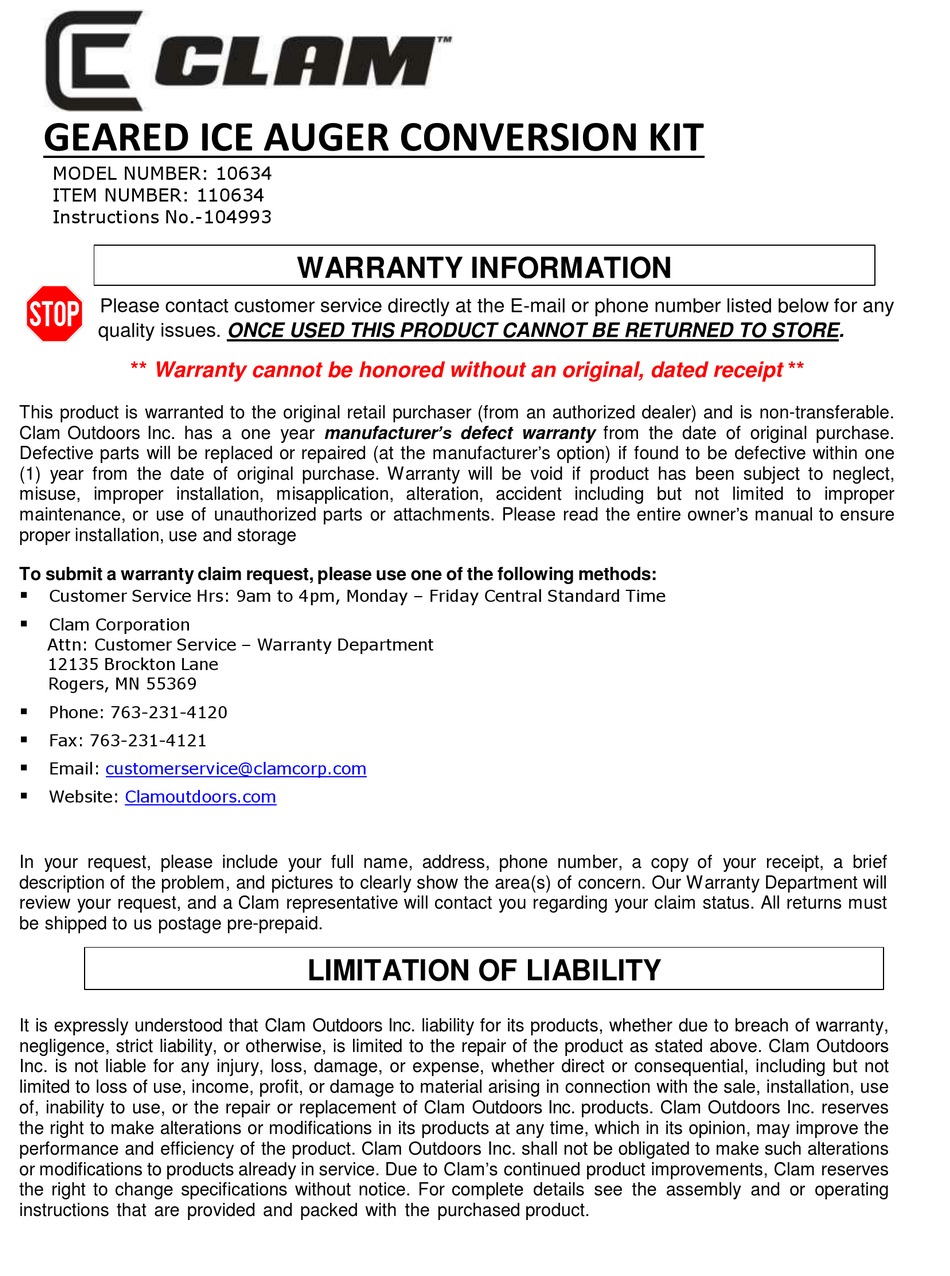

GEARED ICE AUGER CONVERSION KIT
MODEL NUMBER: 10634
ITEM NUMBER: 110634
Instructions No.-104993
Please contact customer service directly at the E-mail or phone number listed below for any
quality issues. ONCE USED THIS PRODUCT CANNOT BE RETURNED TO STORE.
** Warranty cannot be honored without an original, dated receipt **
This product is warranted to the original retail purchaser (from an authorized dealer) and is non-transferable.
Clam Outdoors Inc. has a one year manufacturer's defect warranty from the date of original purchase.
Defective parts will be replaced or repaired (at the manufacturer's option) if found to be defective within one
(1) year from the date of original purchase. Warranty will be void if product has been subject to neglect,
misuse, improper installation, misapplication, alteration, accident including but not limited to improper
maintenance, or use of unauthorized parts or attachments. Please read the entire owner's manual to ensure
proper installation, use and storage
To submit a warranty claim request, please use one of the following methods:

Customer Service Hrs: 9am to 4pm, Monday – Friday Central Standard Time

Clam Corporation
Attn: Customer Service – Warranty Department
12135 Brockton Lane
Rogers, MN 55369

Phone: 763-231-4120

Fax: 763-231-4121

Email:
customerservice@clamcorp.com

Website:
Clamoutdoors.com
In your request, please include your full name, address, phone number, a copy of your receipt, a brief
description of the problem, and pictures to clearly show the area(s) of concern. Our Warranty Department will
review your request, and a Clam representative will contact you regarding your claim status. All returns must
be shipped to us postage pre-prepaid.
It is expressly understood that Clam Outdoors Inc. liability for its products, whether due to breach of warranty,
negligence, strict liability, or otherwise, is limited to the repair of the product as stated above. Clam Outdoors
Inc. is not liable for any injury, loss, damage, or expense, whether direct or consequential, including but not
limited to loss of use, income, profit, or damage to material arising in connection with the sale, installation, use
of, inability to use, or the repair or replacement of Clam Outdoors Inc. products. Clam Outdoors Inc. reserves
the right to make alterations or modifications in its products at any time, which in its opinion, may improve the
performance and efficiency of the product. Clam Outdoors Inc. shall not be obligated to make such alterations
or modifications to products already in service. Due to Clam's continued product improvements, Clam reserves
the right to change specifications without notice. For complete details see the assembly and or operating
instructions that are provided and packed with the purchased product.
WARRANTY INFORMATION
LIMITATION OF LIABILITY

Advertisement

loading
Need help?

Need help?

Do you have a question about the 10634 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Clam 10634

  • Page 1 LIMITATION OF LIABILITY It is expressly understood that Clam Outdoors Inc. liability for its products, whether due to breach of warranty, negligence, strict liability, or otherwise, is limited to the repair of the product as stated above. Clam Outdoors Inc.
  • Page 2: Kit Parts List

    U-BOLT, 1/4 X 20 101304 SCREW, 1/4-20 X 1" THPHCZ Note: Drill must be a ½” chuck drill and Clam recommends using at least an 18v DC drill for this setup.Industrial is even better. Drill should be set to “low” speed too for more torque.
  • Page 3 1. Install Bracket (104681) to main body using 2 screws(101304), 2 nuts(101082) and 4 washer(101081) Bracket must be positioned with Clam logo facing outward as shown. (DO NOT TIGHTEN SECURELY) 2. Install Throttle trigger assembly (104679) to Bracket (104681) using shoulder bolt (103954), 2 washers (101081) and nut (101082) as shown.
  • Page 4: Final Adjustments

    4. Place drill in position as shown and tighten chuck securely to auger shaft (104688). Slip U-bolt (103955) over drill handle and securely tighten to bracket (104681) using 2 washers (101081) and 2 knob handles (103956). 5. FINAL ADJUSTMENTS: Adjust trigger paddle height so that the drill’s trigger can be manipulated fully. You may need to adjust the side to side movement of the vertical bracket to achieve full depression of the trigger.
  • Page 5 6. Assembly is now complete and the auger drill plate assembly is ready to accept whatever auger you’d like to mount on the motor shaft with the supplied M6 X 25mm socket head bolt. USE THE SUPPLIED M6-1 X 25mm SOCKET HEAD CAP SCREW TO FASTEN AUGER TO THE GEAR BOX OUTPUT SHAFT.
