Summary of Contents for American Booster HOME 7500

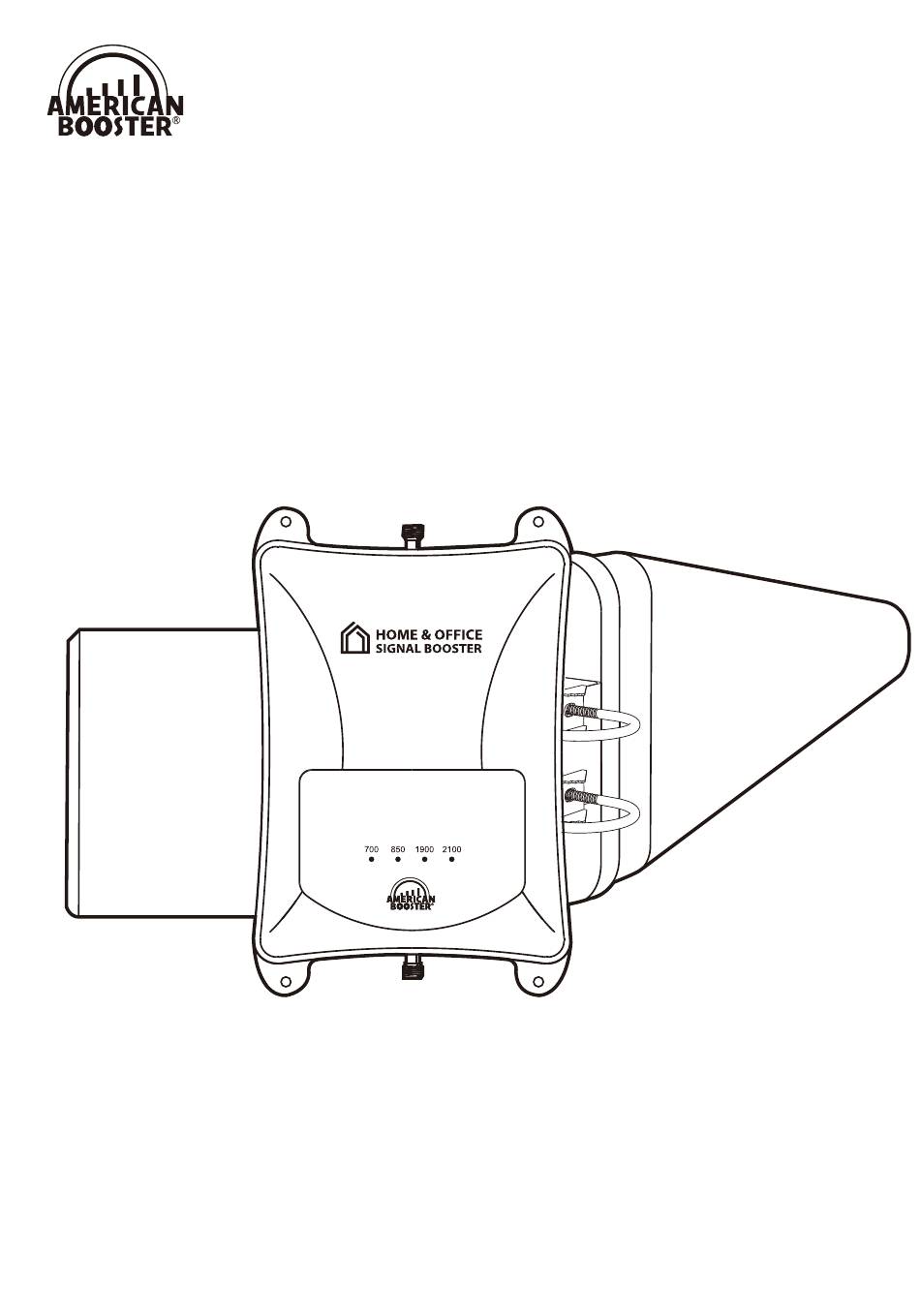

- Page 1 HOME 7500 User Guide HOME Cellular Signal Booster...
- Page 2 This publication provides instructions for installing Cellular Signal Booster Home 7500. Copyright© 2019, American Booster Inc. All Rights Reserved. Revision History Date Version Changes 2019, January Version 1.0 Original Certi cation This equipment complies with the FCC / IC directives.
-
Page 3: Table Of Contents
INDEX Product Introduction Package Contents Application Example HOME 7500 Optional Kit Installation Guide STEP 1. Find the Strongest Signal STEP 2. Install the Outside Antenna STEP 3. Run the Outside Antenna Cable STEP 4. Install the Inside Antenna STEP 5. Install the Signal Booster STEP 6. -
Page 4: Product Introduction
HOME 7500 American Booster Home 7500 has been designed to provide an advanced solution for boosting your ® signal and increasing the cellular data speeds in your house or o ce. How it works Receives Signal Boosts Signal Distributes Signal The signal booster’s outside... -
Page 5: Package Contents
Code No. : 835U3 HOME 7500 User Guide HF-400 Cable, 75 ft. HF-400 Cable, 60 ft. HOME Cellular Signal Booster (N-SMA) (N-SMA) Outside Coaxial Cable Inside Coaxial Cable User Guide Code No. : 8368H Code No. : 8368L HOME 7500 User Guide... -
Page 6: Application Example
Application Example Application Example Signal Booster Outside Antenna Inside Antenna HOME 7500 User Guide... -
Page 7: Home 7500 Optional Kit
HOME 7500 Optional Kit Optional components enable signal ampli cation to a further area. Outside Antenna Panel Antenna Splitter Signal Booster Optional Antenna Options To increase coverage, use additional components. Panel Antenna Kit 2-Way Splitter 60 ft. Coaxial Cable (N-SMA) Coaxial Cable 2 ft. -
Page 8: Installation Guide
1-3. Using a Meter If you have a meter that detects and displays the current signal levels, you can use it. Distance from Cell Tower -100 (dBm) Weak signal Less weak signal Good signal Very good signal Excellent signal HOME 7500 User Guide... - Page 9 If you have -70dBm outside signal, then you will have an excellent signal inside your house or o ce. -90dBm If you have -90dBm outside signal, then you will have a good signal inside your house & o ce. HOME 7500 User Guide...
-
Page 10: Step 2. Install The Outside Antenna
For the best performance, the outside antenna and the inside antenna should be a minimum distance of 20 ft. apart from each other. A bigger separation between outside antenna and inside antenna will provide a stronger signal and better coverage. HOME 7500 User Guide... - Page 11 Install the outside antenna in a location where you can receive the strongest signal according to the instructions described in STEP 1. Make sure outside antenna is installed with the point of the triangle facing toward the cell tower. HOME 7500 User Guide...
-
Page 12: Step 3. Run The Outside Antenna Cable
After drilling the required hole, run the cable through and seal it. In some instances, it may be possible to run the cable up into the fascia of the attic overhang. In this circumstance, the cable will be accessible in the attic further routing. HOME 7500 User Guide... -
Page 13: Step 4. Install The Inside Antenna
Tap anchors Cable (60 ft.) Mount the Inside Antenna with the included screws and bracket as shown in the picture. Note The inside antenna should be installed a minimum distance of 20 ft. from the outside antenna. HOME 7500 User Guide... -
Page 14: Step 5. Install The Signal Booster
Choose a location for the signal booster, preferably away from excessive heat, direct sunlight, moisture and free from high temperatures. Do not place the signal booster in an air-tight enclosure. Attic installations may expose the booster to high heat. PH(+) 3/16” × 1” Tapping Screw Plastic expansion bolt HOME 7500 User Guide... -
Page 15: Step 6. Power Up The Booster
STEP 6. Power up the Booster Connect the AC/DC power adaptor to the booster and plug into a power source. The power LED will light, indicating that the signal booster is ready for use. HOME 7500 User Guide... -
Page 16: Led Indicators
Signal Booster will stop amplifying signals of the frequency with a solid red indicator automatically to prevent the Booster from any damage. If the rest of LEDs are green and you have a strong signal and fast data speeds on your cell phone or tablet, then troubleshooting is not needed. HOME 7500 User Guide... -
Page 17: Troubleshooting
LED’s O 1. If none of the LEDs on the Home 7500 Signal booster are lit, verify that the signal booster is connected properly to the AC/DC power adapter cord and then verify that the power adapter is plugged into a live AC outlet in the house. -
Page 18: Speci Cations
1 minute. And, the device will have a maximum of 5 attempts at restart from oscillation before permanently shutting o . Noise power, gain, and linearity are maintained by the device’s microprocessor. HOME 7500 User Guide... -
Page 19: Safety Guidelines
FCC ID : U88-HOME7500 IC : 8137A-HOME7500 MODEL : HOME 7500 This is a CONSUMER device This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received,including interference that may cause undesired operation. -
Page 20: Fcc Warning Statements
(antenna) and all persons at all times. This device must not be co-located or operating in conjunction with any other antenna or transmitter. Use of unauthorized antennas, cables, and/or coupling devices not conforming with ERP/EIRP and/or indoor only restrictions is prohibited. HOME 7500 User Guide... -
Page 21: Ic Warning Statements
L’antenne (ou les antennes) doit être installée de façon à maintenir à tout instant une distance minimum de au moins UL : 50cm, DL : 20cm entre la source de radiation (l’antenne) et toute personne physique. Cet appareil ne doit pas être installé ou utilisé en conjonction avec une autre antenne ou émetteur. HOME 7500 User Guide... -
Page 22: Warranty
Opening or tampering with the Signal Booster will void all warranties. American Booster provides a 2-year warranty with all of its equipment. Every product of American Booster is guaranteed to be free of material defects or component malfunctions. This warranty does not cover any Signal Boosters that have been exposed to any misuse, abuse, physical damage or inadequate maintenance. -
Page 23: Sdoc Statement
SDoC statement Supplier's Declaration of Conformity 47 CFR § 2.1077 Compliance Information Unique Identi er: HOME 7500 Responsible Party – U.S. Contact Information FCC Compliance Statement (e.g., products subject to Part 15) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 24 www.americanbooster.com Technical Support : 913 469 6699...
