Summary of Contents for Nodis ND-1021IW

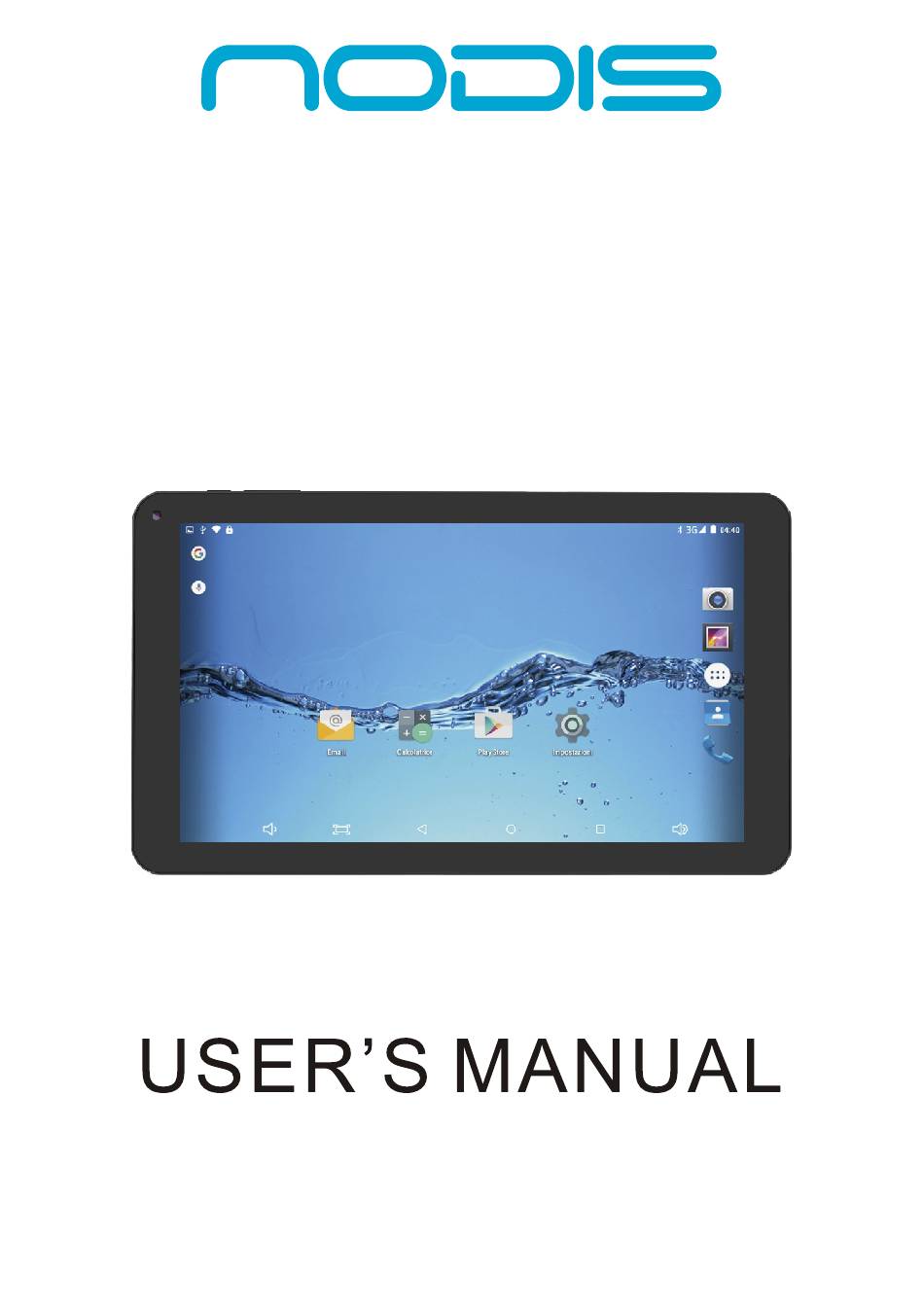

- Page 1 ND-1021IW...
- Page 2 Cautions This user manual has been specially designed to guide you through the functions and features of your device. 1) Please read this manual carefully before using your device to ensure safe and correct use. 2) The descriptions in this manual are based on the default settings of your device.
-
Page 3: Table Of Contents
Chapter One(overview) Appearance Buttons Power on and off Open and close standby mode Lock and unlock the screen Homepage information bar Text input Reset USB connection 1.10 Accessories Chapter Two (Internet) Browser Chapter Three (Application) File manager Downloads Chapter Four (System setting) Wireless networks setting Sound setting Display setting... -
Page 4: Chapter One(Overview)
Chapter One: Overview 1.1 Appearance 1.1 Appearance TF card SIM card Speaker Earphone Back Camera Power Volume+ Volume- Front Camera... -
Page 5: Buttons
1.2 Buttons Power button Long press the power button 2-3 seconds to turn the unit on. When the tablet is in operation, short press power button to enter the off-screen state and short press it again to light up the screen. Volume Press Volume+/- to adjust the volume. -
Page 6: Homepage Information Bar
1.6 Homepage Information Bar WiFi Time 10:03 Battery power Recent app Volume - Back Screenshot Home Volume + 1.7 Text Input When use the tablet, you can use the virtual keyboard to input text, number, symbols directly by touching screen. After selecting the Android input method, the default keyboard show as below: To switch the numbers and letters, press ?123... -
Page 7: Reset
1.8 Reset Use a thin object(like the end of a paper clip) to press the reset button in the hole , then your device will shut down ,you need to press the power button to turn on the unit. 1.9 USB connection Use the USB cable to connect the tablet with PC, you will see your tablet, click this sign and turn on USB storage to connect your device. -
Page 8: Chapter Three (Application)
Browser supports the following features. Input URL: Touch the input area to get the soft keyboard, then input the URL. Touch to add a bookmark. Touch to read the favorite website that collected Touch to search the internet Touch to add new browser Touch to close the browser Chapter Three (Application) -
Page 9: Chapter Four: System Setting
Chapter Four: System setting Click (Settings) to enter the system setting interface. 4.1 Wireless networks setting Set WiFi ON, the system will scan the available wireless network automatically and display the wireless local area network in the list. If the local area network has the sign , it represents the network has been encrypted, it needs password for connection. -
Page 10: Chapter Five (3G/2G Call Function)
Chapter Five (3G/2G call function) 5.1 Phone You can place calls with the Phone application. You can also place calls when working in the Call log or in Contacts. 5.2 Messaging You can use Messaging to exchange text messages (SMS) and multime dia messages (MMS) with your friends on their mobile phones. -
Page 11: Chapter Six (Specification)
Chapter Six (Specification) 265.2*154.2*10.8 Dimension(mm*mm*mm) Weight Approx 585g 10.1" 1024 × 600 TN Android 5.1 Processor 1.2G Hz Quad-Core Memory 1GB DDR2 RAM, 8GB internal 802.11b/g/n WI-FI Micro-USB, Micro-SD (up to Connections 32GB), Headphone Jack Battery 3.7V 5000mAh Li-Poly Up to 40h music mode, 5.3h Service time internet, 6h video Operating temperature... - Page 12 Legislative Decree no. 49 dated 14th March, 2014. To receive the manual recycling of this product based on the WEEE Directive, send an email to info@nodis.it or visit the following Web site to download the document: www.nodis.it .
- Page 13 By automatically emitting lower levels when possible, your device reduces your overall exposure to RF energy. You can find SAR value for this device on website www.nodis.it. The device contains batteries covered by European Directive 2013/56/EU and they can not be disposed together with domestic wastes. Please inform...
