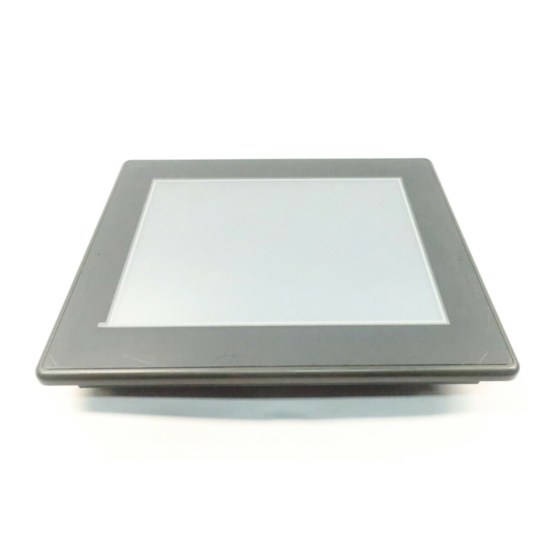

Automation Direct C-more EA7-T12C Replacement Instructions

B
ACKLIGHT
/
P N
W : This procedure should only be performed by qualified personnel who are experienced in working with electronic equipment. Take the necessary steps to
ARNING
prevent damage from static electricity discharge. Disconnect input power to the touch panel before proceeding. Be careful not to pinch the ribbon cable between
the housing and bezel when re-assembling the panel.
C-more Replacement Bulbs
C-more Model Bulb Model
EA-12-BULB*
EA7-T12C EA-12-BULB2**
Non-Replaceable LED
Preparation: Disconnect input power and all other connections, then remove the touch panel from the control cabinet. In a clean environment, place the panel face
down on a lint-free soft surface to prevent scratching the front of the panel.
1 1
1 1
With power disconnected, use a #2 Phillips screwdriver to remove the four
outer screws holding the touch panel's main electronics housing to the
front bezel.
3 3
3 3
Place the touch panel's main electronics housing facing up on a lint-free
soft surface. Position the housing so that the backlight bulb connector is
in plain view. (There is only one bulb used on the 12" touch panel.)
B R
ULB
EA-12-BULB*
C-more Serial Number
EA7-T12C+10Z29B019 and older
EA7-T12C+10Z29B020 thru EA7-T12C+14102B060
EA7-T12C+14102B061 and newer
Lower backlight
bulb connector
I
EPLACEMENT
EA-12-BULB2**
OR
Serial Number =
YYMF
Date Code =
YY: Year (05–99 --- e.g. 05 = 2005)
M: Month (1–9, X, Y, Z --- e.g. X = Oct.)
DD: Day (1–31)
F: Manufacturing Site (0–9, A–Z)
NNN: Sequence number for the date listed (000–999)
2 2
2 2
Lift the touch panel's main electronics housing from the front bezel. Set
the front bezel and four screws to the side. Observe the ribbon cable
recess on the front bezel (see detail) for use in re-assembling the panel.
4 4
4 4
Carefully lift the bulb's wires out of the wire guides so they are free from
obstructions.
3505 HUTCHINSON ROAD
CUMMING, GA 30040-5860, USA
NSTRUCTIONS
[Part Number]+[YYMDDFNNN]
Ribbon cable
recess
