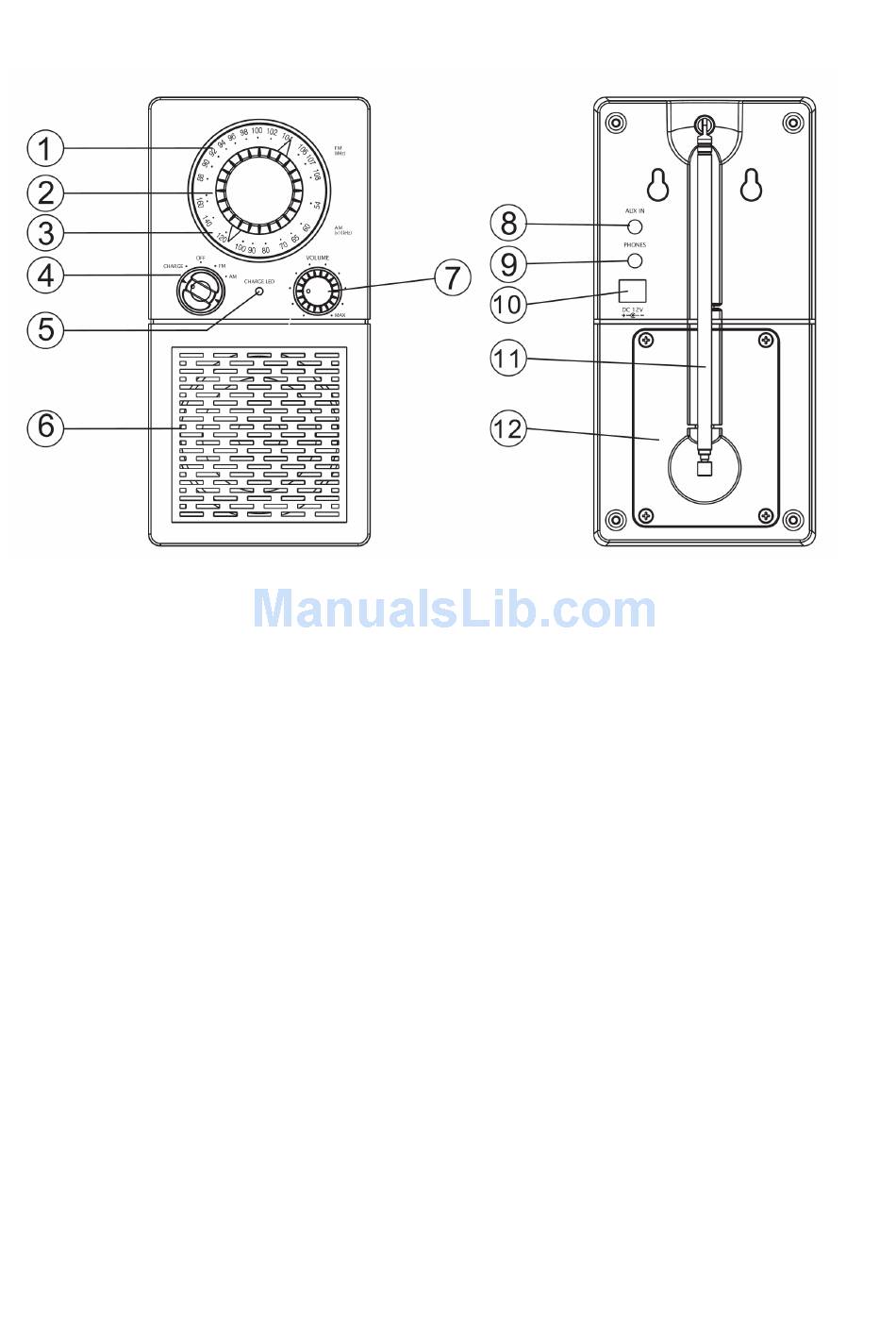

Locations of controls and indicators:
Features at the front:
1.
FM Frequency Indicator - Shows the FM range.
2.
Frequency Tuning Knob - Rotate clockwise to tune FM from 88-108 MHz.
3.
AM Frequency Indicator - Shows the AM range.
4.
Mode Switch
5.
LED Indicator
6.
Speaker
7.
Volume knob
- The orange backlight will glow once the radio has
been turned on to FM.
- Rotate clockwise to tune AM from 540-1600 KHz.
- The orange backlight will glow once the radio has
been turned on to AM.
- CHARGE – In this position the battery charge is
activated.
- OFF – In this position the radio is turned off.
- FM – In this position the FM band is switched on.
- AM – In this position the AM band is switched on.
- Red light indicates that the battery is being
charged.
- Green light indicates that the battery is fully
charged.
- No light indicates that charging has been discon-
nected.
- Built-in 3" drive.
- Rotate clockwise to increase volume.
Advertisement
Summary of Contents for Dantax Casino 2500
- Page 1 Locations of controls and indicators: Features at the front: FM Frequency Indicator - Shows the FM range. Frequency Tuning Knob - Rotate clockwise to tune FM from 88-108 MHz. AM Frequency Indicator - Shows the AM range. Mode Switch LED Indicator Speaker Volume knob - The orange backlight will glow once the radio has...
- Page 2 • - Rotate counter-clockwise to decrease volume. - Input socket for connection of audio. sources, i.e. MP3 Player, iPod, CD Player or TV. - Socket for connection of separate headphone. This will mute the primary speaker. - For plug-in of power adaptor (included) and con- nection to power source for AC operation or bat- tery charge.
- Page 3 Unplug the power supply when LED is green. • LED turns off. • With fully charged battery (min. 8 hours) the unit can be operated for ap- • proximately 7-8 hours by DC at 50% volume output. Note that the radio reception becomes weak and the sound may be distorted •...
- Page 4 This product is in compliance with the Waste Electrical and Electronic Equipment Directive 2002/96/EC (WEEE). Do NOT dispose this equipment as unsorted municipal waste, but use the return and collection systems available. Casino 2500 AM/FM transportable mono radio with rechargeable battery.
