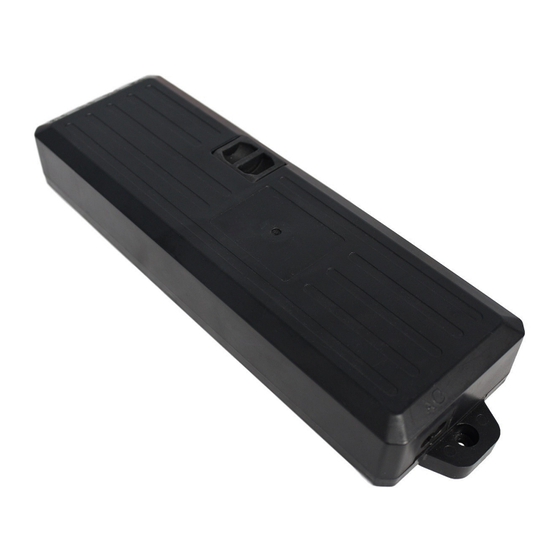

FLTCON-3
Data Sheet
Control Type
Input Voltage
Output Voltage
Current
Number of Channels
Feedback Input
Duty Cycle
Certifications
Unit Weight
Size (L x H x W)
Warranty
Wired Remote (Not Included)
110VAC (Power Cable Included)
24VDC
8A Per Channel
3
Hall Effect Sensor
10% (Max. 2 mins on, 18 mins off)
CE, FCC
1.55lbs
11.3" x 1.8" x 3.8"
18 Months
Advertisement
Related Manuals for progressive automations FLTCON-3
Summary of Contents for progressive automations FLTCON-3
- Page 1 FLTCON-3 Data Sheet Wired Remote (Not Included) Control Type Input Voltage 110VAC (Power Cable Included) 24VDC Output Voltage Current 8A Per Channel Number of Channels Feedback Input Hall Effect Sensor 10% (Max. 2 mins on, 18 mins off) Duty Cycle...
- Page 2 Dimensions 1.8" 0.7" 0.7" 0.7" 3.7" 3.7" 0.8" 3.8" 0.3" 0.1" 11.3" Operational Procedure Once your table lift is installed it is simple to operate. Just use the wired remote for full up/down motion control. Use the up button to raise the table lift and use the down button to lower it. You can preset up to 4 positions by following this simple procedure: Use the up/down buttons on the remote to find your desired height(s), then press “S”...
