INSTALLATION AND SERVICE MANUAL
For Installation of Mask inground guide light.
Model.
MK-60241-MK-43,MK-60249,MK-60251-MK-53,MK-60259,MK-60261-MK-63,MK-60269,MK-60721-MK-23 and MK-60729

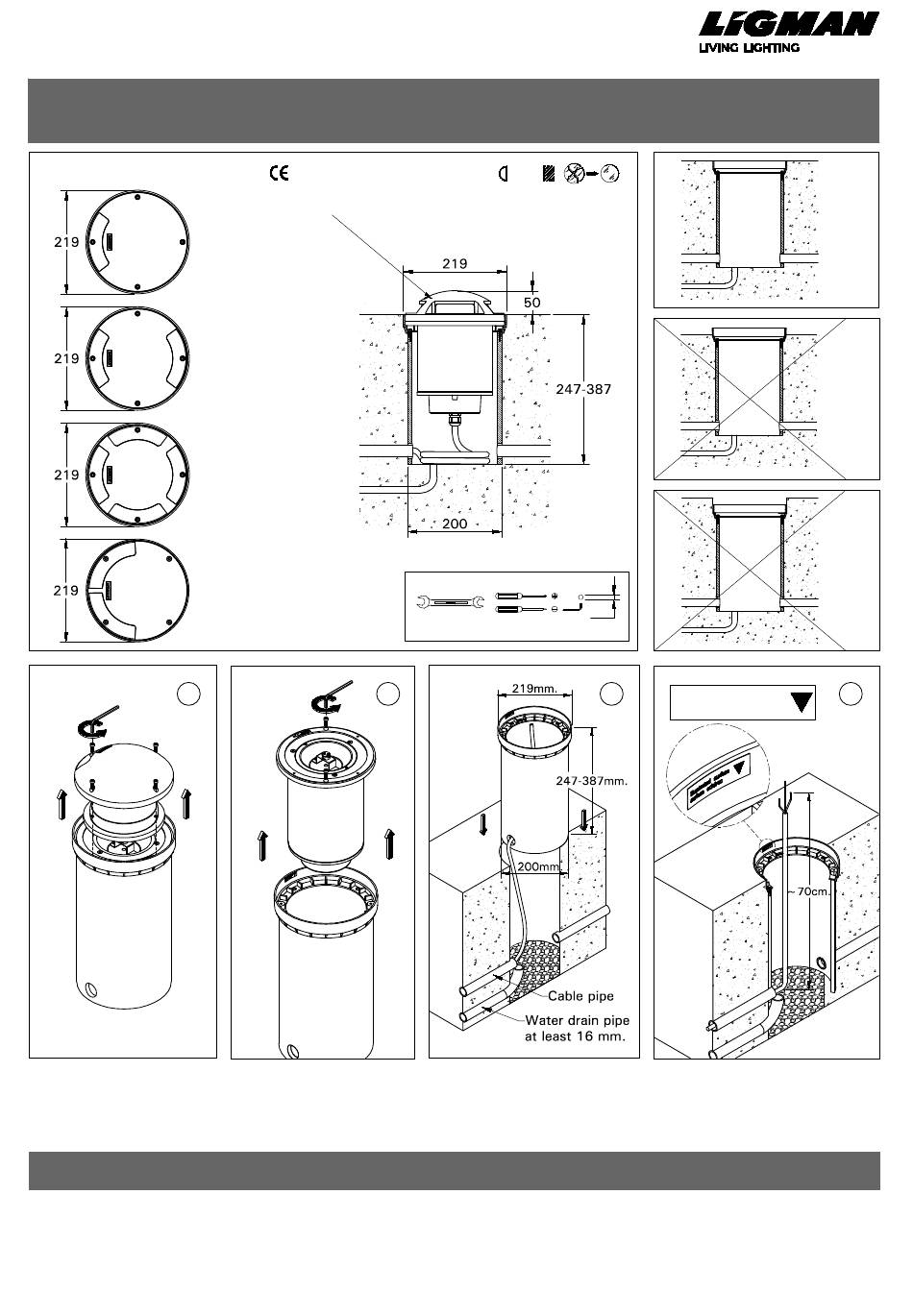

Product drawing (dimensions)
1
■ LIGMAN standard products are supplied with the control gear 220-240V 50/60Hz.
The control gear for other voltages and frequencies is available upon request, please consult us for more details.
■ LIGMAN luminaires are designed to conform IEC 60598 2-1 standard.
Technical amendments and modifications techniques reserved.
L i g m a n L i g h t i n g
Europe Headquarters
Ligman Europe s.r.o.
VGP Park Usti nad Labem, P 2
Prestanov 113
403 17 Prestanov
Czech Republic
Tel. +420 608 740 504 sales.cz@ligman.com
|
www.ligman.com
IP67 IK10 CLASS I
Ta 25°c
Glass surface temp
MK-60241 = 60°c
MK-60242 = 43°c
MK-60243 = 44°c
MK-60249 = 33°c
MK-60251 = 60°c
MK-60252 = 43°c
MK-60253 = 44°c
MK-60259 = 33°c
MK-60261 = 60°c
MK-60262 = 43°c
MK-60263 = 44°c
MK-60269 = 33°c
MK-60721 = 60°c
MK-60722 = 43°c
MK-60723 = 44°c
MK-60729 = 33°c
Thailand Headquarters
Ligman Lighting Co., Ltd.
17/2 Moo 4, Monthong, Bangnampreaw
Chachoengsao 24150 Thailand
Tel : +66 (2) 7339140
info@ligman.com
0.5m
Drive over 2,000kg. at max. 10km/h.
TOOL
2
M MK-60241/02/11/17/REV.9
1/2
3,4
3
illuminated surface
surface eclairec
Ligman Ltd
Regus House, Victory Way
Crossways Business Park
Dartford DA2 6QD
Tel. 0800 975 0622
sales.uk@ligman.com
FM-TS-13-1/13-03-2561/REV.4
OK YES
NO
NO
4
