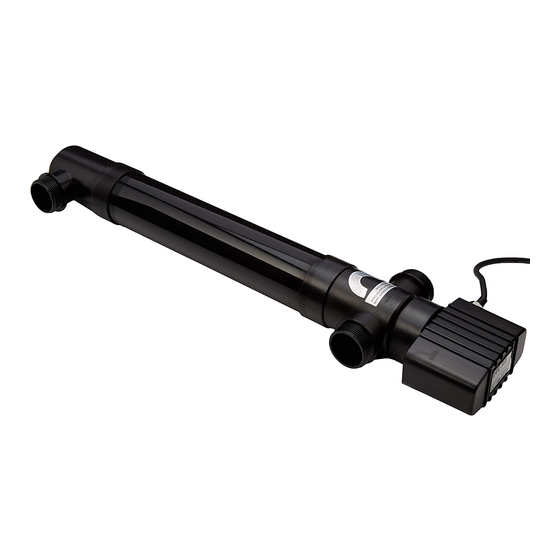

- Page 1 POND & AQUARIUM UV STERILISER CUV-118 / 136 / 155 / 172...
- Page 2 To ensure your UV Steriliser is set up and running correctly, and to prevent any accidental damage or injury, please read and follow the below instructions carefully before using your product. SAFETY IMPORTANT! Disconnect the mains electricity supply before attempting any installation / maintenance of any kind.
- Page 3 To avoid injury, do not touch hot or moving parts such as, but not limited to · UV bulbs or impellers. During maintenance ensure all O-rings are present and intact. · If the appliance shows any signs of water leakage or the RCD unit switches ·...
- Page 4 ELECTRIC This unit comes complete with a generous supply of 3 core cable, however should any additional cable be required, the use of an approved waterproof cable connector with a proper rating is essential. A cord rated for less amperes or watts than the appliance rating may overheat.
-
Page 5: Installation And Use
filter. The steriliser is also supplied with a separate glass viewport which can be used to replace one of the hosetails for use as a one-in / one-out unit. The CUV-172 model has 2 viewports. CUV-118 / 136 / 155 CUV-172... - Page 6 3. Add fixing brackets to your unit. There should be one at each end of the unit. You can then use them to secure the unit on flat surface. 3. Clear hosetail - is interchangeable with the black hosetail. It has a spindle that indicates the flow rate so you can use it on the inlet/outlet.
-
Page 7: Maintenance
UVC OPERATION Always ensure that the filter has water flowing through the unit prior to · operating the UV. Never look directly at the UV light when operational. · Check that the UV is operational visually using the UV indicator. ·... -
Page 8: General Maintenance
Quartz sleeve & UV bulb - to access UV bulb unfasten the clip located on the side (CUV-155 model only). Gently rotate the housing to remove it. CUV-118 / 136 / 172 CUV-155 The quartz sleeve can be coated in limescale build up in hard water areas. This should be carefully removed from the quartz sleeve and cleaned with a soft damp cloth. - Page 9 Always change your UV bulb every twelve months regardless of it working or not, as its performance will lessen by this stage. We recommend to replace your bulb every 6 months if used for aquarium and 12 months if used for pond. CUV-118 uses a 18w PLL UV bulb. CUV-136 uses a 36w PLL UV bulb.
-
Page 10: Parts Diagram
PARTS DIAGRAM CUV-118 / 136 / 155 FILTER BOTTOM HEAD CABLE BOLT HOSETAIL INLET FIXING BRACKETS BALLAST SEAL SWITCH COVER HOSETAIL NUT UVC BULB QUARTZ SLEEVE O-RING 1 QUARTZ SLEEVE QUARTZ SLEEVE O-RING 1 HOSETAIL O-RING UVC BULB CONNECTOR HOSETAIL NUT... - Page 11 PARTS DIAGRAM CUV-172 FILTER BOTTOM HEAD CABLE BOLT HOSETAIL INLET FIXING BRACKETS BALLAST SEAL SWITCH COVER HOSETAIL NUT UVC BULB QUARTZ SLEEVE O-RING 1 QUARTZ SLEEVE QUARTZ SLEEVE O-RING 1 HOSETAIL O-RING UVC BULB CONNECTOR HOSETAIL NUT EARTH PLATE HOSETAIL OUTLET UVC STARTER CUV BODY CONNECTION SUPPORT...
-
Page 12: Troubleshooting
TROUBLESHOOTING The Light on My CUV Unit Isn't Working If the UV indicator on the top of the filter casing is not lighting up follow these troubleshooting steps: 1. Clean the UV indicator. 2. Please check for signs of damage or water ingress to quartz sleeve and bulb area. - Page 13 3. If you find that the unit is still leaking after the above checks or there is an obvious casing crack, you will need to replace the body casing on the unit. Green Water or Cloudy/Brown Water? In order to correctly identify if you have green water or cloudy/brown water, a settlement test should be carried out.
-
Page 14: Specifications
4. Make sure to perform regular water changes, check your unit is clean and adequate for your pond size and do not overstock it. If none of the above resolves your issue, or you require spare parts for your filter, please contact the supplier of your unit. SPECIFICATIONS CUV-118 CUV-136 CUV-155 CUV-172 MODEL:... -
Page 15: Warranty
WARRANTY The All Pond Solutions CUV Steriliser range is guaranteed against defects in material or workmanship under normal pond usage and comes with 12 months warranty for all electrical parts. The warranty period commences from the date of purchase. If you require support on how to use your unit, replacement parts or if your filter develops a fault during the warranty period, please contact the supplier of your unit. - Page 16 All Pet Solutions Limited Trading as All Pond Solutions Unit 203 Riverside Way, Uxbridge, Middlesex, England, UB8 2YF...
