Summary of Contents for Playcore Spectrum Aquatics Motion Trek 350

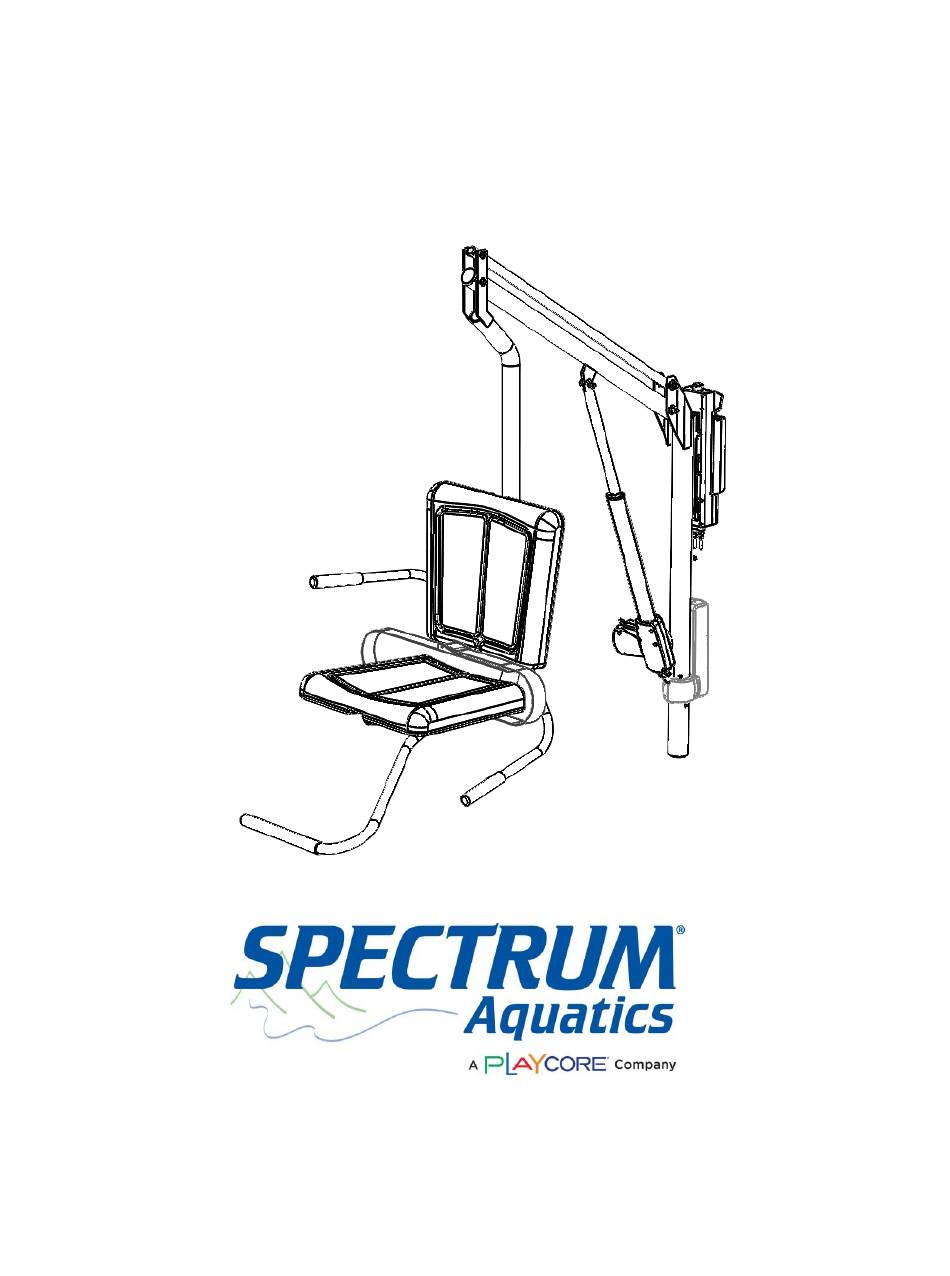

- Page 1 Motion Trek 350 153121 7100 Spectrum Lane ~ Missoula MT 59808 800.791.8056 ~ www.spectrumproducts.com 153121 Rev A...
-
Page 2: Shipping Information
You have purchased a Spectrum Products Motion Trek 350 assisted access lift. Providing the unit is installed correctly and properly maintained, it will furnish you with many years of trouble free use. It is important to read this entire manual prior to beginning assembly or operation. Shipping Information: Each lift will arrive partially assembled in one box. -
Page 3: Components And Hardware
Components and Hardware: 800.791.8056 ▪ www.spectrumproducts.com... -
Page 4: Installation Overview
Installation Overview Read all instructions before attempting to assemble or install the lift. Clear Deck Space: To be compliant with ADA guidelines, the lift must be installed in a location that is clear from obstacles and other hazards. Clear deck space is defined by the figure to the right. - Page 5 by 10” thick anchor centered, with a minimum of four #4 bars each way centered. An engineer stamped letter can be furnished by Spectrum if requested. a. From the center of the desired anchor location, using a marking pen or chalk, mark a square of the dimensions provided by Spectrum Aquatics, or another engineer stamped footing.
-
Page 6: Assembly Instruction
Allow the concrete to cure for at least 7-days before installing and using the lift. Assembly Instruction The following tools will be required to complete assembly and installation of the lift: 9/16” ratchet and open-end wrench 5/8” ratchet and open end wrench 1/2”... - Page 7 Attach the seat half and the seat belt to the mounting plate of the seat arm using: 2 - 5/16"-18 x 1” 2 - 5/16"-18 x ¾” 4 - 5/16" Flat Washers 4 - 5/16" Lock Washers Note: When attaching the seat belt use 5/16"-18 x 1" as shown below. 800.791.8056 ▪...
- Page 8 The below image shows the proper way to assemble the seat belt. Attach the other seat half to the back rest mounting plate using: 4 - 5/16"-18 x ¾” 4 - 5/16" Flat Washers 4 - 5/16" Lock Washers Attach the footrest to the seat arm assembly using: 1 - 3/8"...
- Page 9 Operator’s Guide Lift Operation WARNING! Read all operating instructions before operating the lift. Make sure that all individuals using the lift have read the instructions and have been made aware of all safety precautions. WARNING! Operate the lift exactly as described in the instructions above. Failure to do so may result in damage to the lift or personal injury.
- Page 10 Rotation (CLOCKWISE) Pressing the button causes the lift to rotate clockwise. The lift will continue to rotate in this direction as long as the button is pressed. Releasing the button at any time during rotation will stop the lift from rotating. Rotation (COUNTERCLOCKWISE) Pressing the button causes the lift to rotate counterclockwise.
- Page 11 charger determines that the battery needs to be charged, the LED on the charger will change to red. The red LED will turn green when the battery is fully charged. This charger has internal monitoring circuitry that will not overcharge the battery, if the battery is left on the charger for extended periods of time the charger will go into short charging cycles at intervals to keep the charge level at optimal.
-
Page 12: Troubleshooting
Troubleshooting Problem: Cause: Solution: Low Battery (Lift) – Red or 1. Lift will not operate at all: Recharge Battery amber LED on the receiver 2. The seat will not raise or lower. Low battery Recharge battery The seat will not rotate. Battery not installed Reinstall battery properly...
