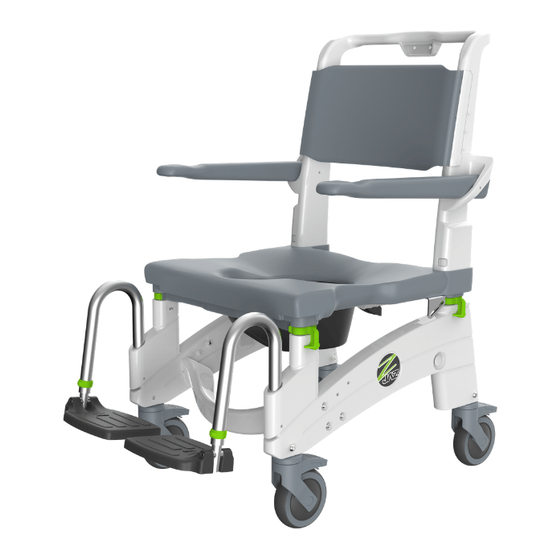

Summary of Contents for Raz Jaz-AP

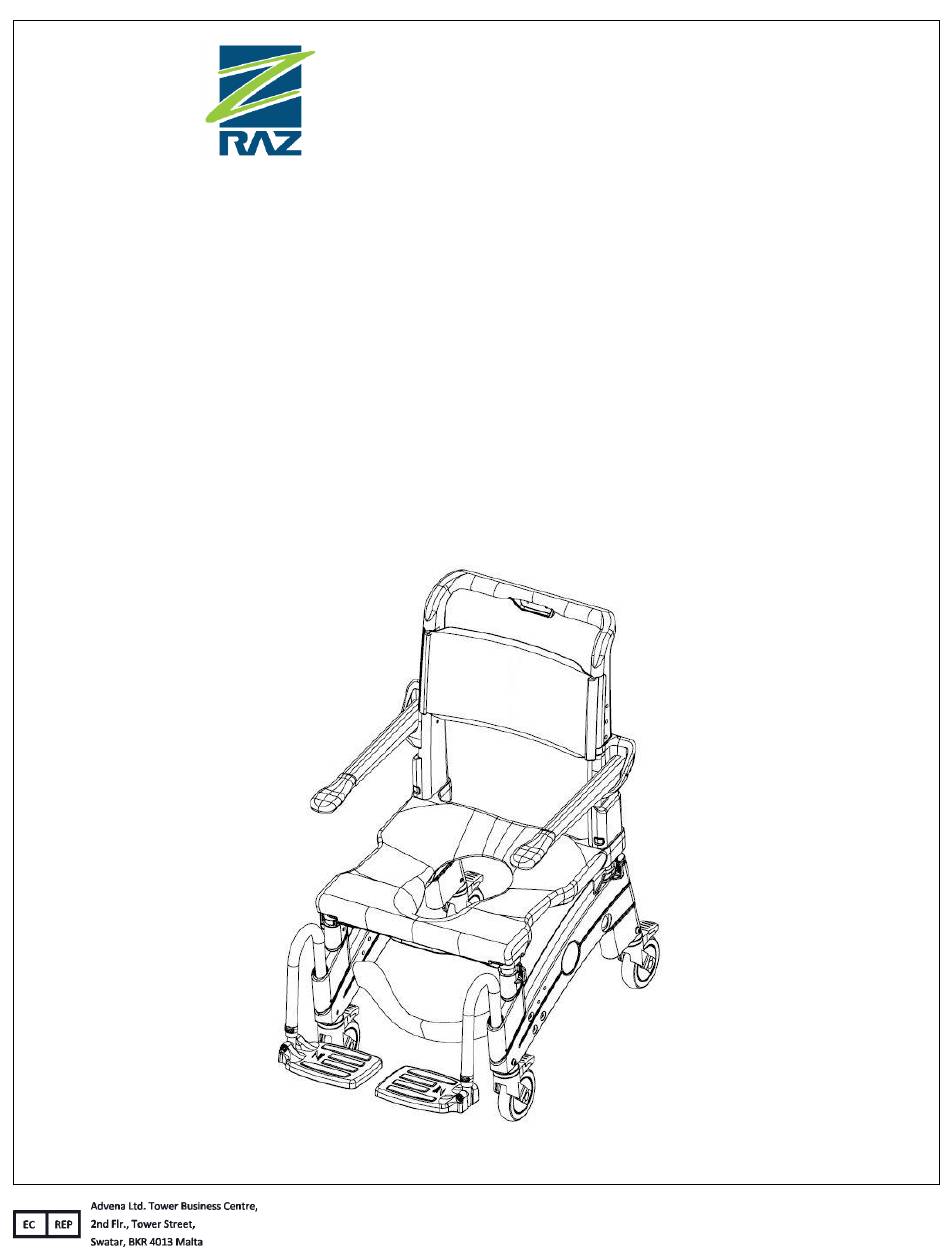

- Page 1 Mobile Shower Commode Chairs Jaz-AP User and Dealer Manual RQD026r00ENG Rev. Date: 2019-07-24...
- Page 2 Lateral Stability USERS MUST NOT lean over the edge of the Jaz-AP as this could cause the chair to tip. USERS MUST NOT attempt to pick up objects from the floor by leaning over and reaching –...
- Page 3 Immersion The Jaz-AP is not designed to be used as a pool chair. Do not immerse the shower chair in whole or in part, in water or any other liquid. Damage to the shower chair components may result.
- Page 4 IMPORTANT ! USERS SHOULD NEVER BE LEFT UNATTENDED IN THE JAZ-AP IMPORTANT ! DO NOT LIFT THE JAZ-AP AND OCCUPANT BY THE ARMRESTS OR FOOTRESTS! Jaz-AP User and Dealer Manual RQD026r00ENG Rev. Date: 2019-07-24...
-
Page 5: Table Of Contents
5.1.2 Soft Seat (if ordered) ......................15 Cleaning As Needed ......................15 5.2.1 Frame, Armrests, Adjustable Footrests, and Other Components ........15 Suggested Cleaning Products .................... 15 LIMITED WARRANTY ......................16 CONTACTS ..........................17 Jaz-AP User and Dealer Manual RQD026r00ENG Rev. Date: 2019-07-24... -
Page 6: General Information
TOILET WIDTH CLEARANCE 20 cm (8”) ARMREST HEIGHT ABOVE SEAT 48-61 cm (19”-24”) SEAT-TO-FLOOR HEIGHT 58 cm (23”) OVERALL WIDTH 96 cm (38”) MINIMUM TURNING CIRCLE PRODUCT WEIGHT 17 kg (38 lbs) Jaz-AP User and Dealer Manual RQD026r00ENG Rev. Date: 2019-07-24... -
Page 7: Chair Set-Up: Intended For Dealer, Distributor Or Qualified Wheelchair/Service Technician
2. Secure the base side and base cross member with three 3. Close the hinged caps. M6x40mm button head screws with flat washers and hinged caps. 4. Repeat steps 1-3 for the other side. Jaz-AP User and Dealer Manual RQD026r00ENG Rev. Date: 2019-07-24... - Page 8 10. Repeat steps 8-9 for the other side. with flat washers into holes on the underside of the seat. Tighten the screws into the nut drawers to secure the backrest to seat. Jaz-AP User and Dealer Manual RQD026r00ENG Rev. Date: 2019-07-24...
- Page 9 14. Place the footrest hanger tubes into the of the base and seat. footrest receiver holes on the base frame. 15. Ensure the notch on the hanger tubes sits securely on the pin in the footrest receiver hole. Jaz-AP User and Dealer Manual RQD026r00ENG Rev. Date: 2019-07-24...
- Page 10 Complete Chair Jaz-AP User and Dealer Manual RQD026r00ENG Rev. Date: 2019-07-24...
-
Page 11: Accessories Installation: Intended For Dealer, Distributor Or Qualified Wheelchair/Service Technician
Hand tighten the lock nut. 3. Repeat steps 1-2 for the other side. 4. Attach the chest belt by looping through the slot on the chest belt mounting plates. Fully tighten the lock nuts. Jaz-AP User and Dealer Manual RQD026r00ENG Rev. Date: 2019-07-24... -
Page 12: Lateral Support Installation
3. Insert the two M6x40mm button head screws 4. Repeat steps 1-3 for the other side if into the backrest and lateral assembly. applicable. Secure with lock nuts. Jaz-AP User and Dealer Manual RQD026r00ENG Rev. Date: 2019-07-24... -
Page 13: Armrest Lock Installation
M6x20mm hex head screws with washers headrest clamp, adjust to the appropriate through the holes on the headrest clamp and height and tighten the tri-lobe. backrest. Secure with washers and lock nuts. Jaz-AP User and Dealer Manual RQD026r00ENG Rev. Date: 2019-07-24... -
Page 14: Use And Operation
Push the armrest lock in the back to disengage the locking mechanism. 4.2 Adjustable Footrests Adjustable Footrests are standard on the Jaz-AP. For transfers, the footrests can be flipped up, rotated away or removed entirely. To insert the Adjustable Footrests: 1. -
Page 15: Cleaning And Maintenance
3. For a more thorough cleaning, remove the seat from the shower chair to allow better access to the underside of the seat and around the opening of the seat. NOTE: If you did not order a soft seat but would like to have one, you can purchase one from any Raz dealer. -
Page 16: Limited Warranty
(2) years from the date of purchase. All other components on the Jaz-AP are covered for a period of one (1) year and are subject to normal wear and tear exclusions. -
Page 17: Contacts
IT IS IMPORTANT TO CHECK YOUR CHAIR PRIOR TO EACH USE. ALL COMPONENTS INCLUDING THE BACKREST, ARMREST, SEAT FRAME AND BASE FRAME SHOULD BE SECURED IN PLACE. IF IT IS EVER FELT THAT ANY ASPECT OF THE JAZ-AP IS IN NEED OF MAINTENANCE, CONTACT YOUR DEALER. ANY PROBLEMS THAT COULD AFFECT THE SAFE USAGE OF THE CHAIR MUST BE ATTENDED TO IMMEDIATELY.
