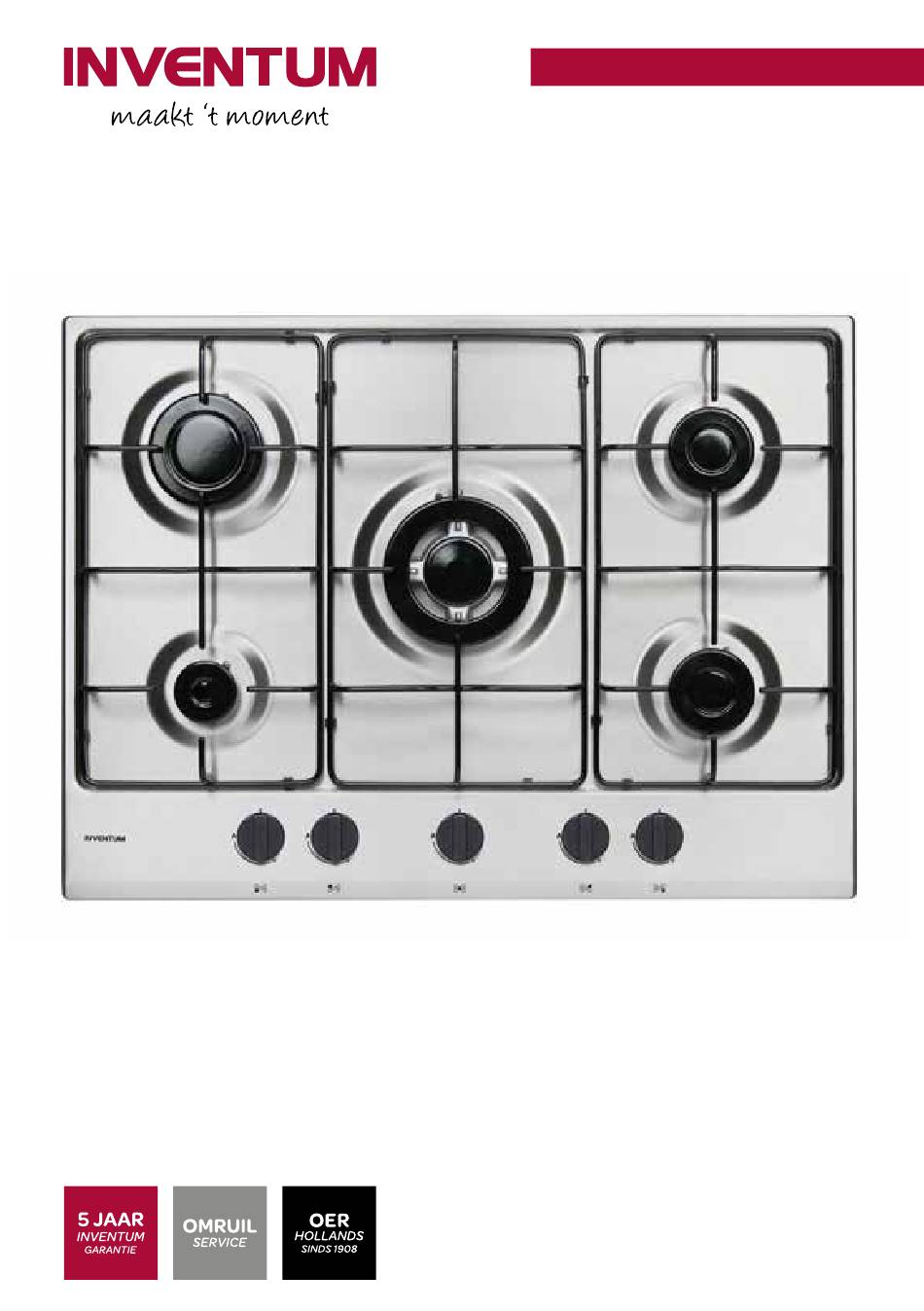

  • Page 1 GAS COOKING HOB gaskookplaat IKG6020RVS IKG7020WRVS • gebruiksaanwijzing • instruction manual...
  • Page 2 •...
  • Page 3: Table Of Contents

    Nederlands veiligheidsvoorschriften pagina 4 product omschrijving pagina 7 voor het eerste gebruik pagina 8 de branders ontsteken en bedienen pagina 8 gebruik pagina 8 reiniging & onderhoud pagina 9 storingen pagina 9 installatievoorschrift pagina 10 Garantie & service pagina 24 English safety instructions page 15...
  • Page 4: Veiligheidsvoorschriften

    Nederlands veiligheidsvoorschriften • Lees eerst de gebruiksaanwijzing aandachtig en geheel door voordat u het apparaat gaat gebruiken en bewaar deze zorgvuldig voor latere raadpleging. • Gebruik dit apparaat uitsluitend voor de in de gebruiksaanwijzing beschreven doeleinden. Gebruik de kookplaat alleen voor het bereiden van gerechten.
  • Page 5 bijvoorbeeld een deksel of een blusdeken. • Het apparaat mag niet buiten gebruikt worden. • Gebruik het apparaat niet als werkblad. Het apparaat kan per ongeluk worden ingeschakeld of nog heet zijn, waardoor voorwerpen kunnen smelten, heet worden of vlam vatten. •...
  • Page 6 aangesloten. • Defecte onderdelen mogen alleen vervangen worden door originele onderdelen. Alleen van die onderdelen kan de fabrikant garanderen dat zij aan de veiligheidseisen voldoen. • Schade ontstaan door verkeerd aansluiten, verkeerd inbouwen of verkeerd gebruik valt niet onder de garantie. •...
  • Page 7: Product Omschrijving

    IKG6020RVS IKG7020WRVS Pannendrager Pannendrager Sterkbander Wokbrander Normaalbrander Normaalbrander Sudderbrander Bedieningsknop rechtsvoor Bedieningsknop rechtsvoor Bedieningsknop rechtsachter Bedieningsknop rechtsachter Bedieningsknop wokbrander Bedieningsknop linksachter Bedieningsknop linksachter Bedieningsknop linksvoor Bedieningsknop linksvoor Vangschaal Vangschaal 10. Sudderbrander Sterkbander Nederlands •...
  • Page 8: Voor Het Eerste Gebruik

    voor het eerste gebruik Voordat u het apparaat voor de eerste maal in gebruik neemt, dient u als volgt te werk te gaan: pak de kookplaat voorzichtig uit en verwijder al het verpakkingsmateriaal. De verpakking (plastic zakken en karton) buiten het bereik van kinderen houden. Controleer na het uitpakken het apparaat zorgvuldig op uiterlijke schade, mogelijk ontstaan tijdens transport.
  • Page 9: Reiniging & Onderhoud

    reiniging & onderhoud Reinig de kookplaat na elk gebruik om deze in een goede conditie te houden. Overgekookte etensresten kunnen gaan inwerken en zijn moeilijker te verwijderen als ze langere tijd niet verwijderd worden. Gebruik voor het reinigen van de kookplaat een mild reinigingsmiddel zoals afwasmiddel. De losse onderdelen mogen niet in de vaatwasmachine gereinigd worden.
  • Page 10: Installatievoorschrift

    RUIMTE RONDOM DE KOOKPLAAT Voor een veilig gebruik is voldoende ruimte rondom de kookplaat noodzakelijk. Controleer of deze ruimte aanwezig is. Afmetingen in mm IKG6020RVS min. 650 min. 600 min. 450 min. 90 IKG7020WRVS min.
  • Page 11 BUITENMATEN In onderstaande afbeelding zijn de afmetingen van de kookplaten aangegeven. Afmetingen in mm IKG6020RVS IKG7022WRVS INBOUWMATEN In onderstaande afbeelding zijn de afmetingen van de benodigde uitsparingen aangegeven. Afmetingen in mm IKG6020RVS IKG7020WRVS E* houd deze afstand aan bij een stenen achterwand zoals tegels.
  • Page 12 3 Sterkbrander 4 Wokbrander * Informeer bij de service organisatie van Inventum als u het apparaat om wilt bouwen voor gebruik met een ander type gas. In de handleiding van de ombouwset staat de werkwijze. Dit toestel is afgesteld voor de toestelcategorie K (I2K) en is geschikt voor het gebruik van G en G+ distributiegassen volgens de specificaties zoals die zijn weergegeven in de NTA 8837:2012 Annex D met een Wobbe-index van 43,46 –...
  • Page 13 INVENTUM INVENTUM Merk Model IKG6020RVS IKG7020WRVS Type kookplaat Aantal kookzones Verwarmtechnologie-1 Formaat-1 Hulp Hulp Energie-efficiëntie-1 N.v.t. N.v.t. Verwarmtechnologie-2 Formaat-2 Normaal Normaal Energie-efficiëntie-2 59,0 59,0 Verwarmtechnologie-3 Formaat-3 Normaal Normaal Energie-efficiëntie-3 59,0 59,0 Verwarmtechnologie-4 Formaat-4 Snel Snel Energie-efficiëntie-4 57,0 57,0 Verwarmtechnologie-5 Formaat-5 Energie-efficiëntie-5...
  • Page 14: Safety Instructions

    English safety instructions • Please read these instructions before operating the appliance and retain for future use. • The appliance is intended solely for domestic use within the home. The hob is only to be used for the preparation of food. The appliance is not designed for heating rooms.
  • Page 15 • Never use a pressure cleaner or steam cleaner to clean the hob. • Do not use the appliance in temperatures below 5°C. • When you use the hob for the first time you will notice a “new smell”. Don’t worry, this is normal. If the kitchen is well ventilated, the smell will soon disappear.
  • Page 16 • The worktop into which the hob is fitted, should be flat. • The walls and the worktop surrounding the appliance must be heat resistant up to at least 100°C. Even though the appliance itself does not get hot, the heat of a hot pan could discolour or deform the wall. •...
  • Page 17: Appliance Description

    IKG6020RVS IKG7020WRVS Pan support Pan support Rapid burner Wok burner Semi-rapid burner Semi-rapid burner Simmer burner Control knob front right Control knob front right Control knob rear right Control knob rear right Control knob wok burner Control knob rear left...
  • Page 18: Before First Use

    before first use Before you use the appliance for the first time, please do as follows: Carefully unpack the appliance and remove all the packaging material. Keep the material (plastic bags and cardboard) out of reach of children. Check the appliance after unpacking for any damage, possible from transportation.
  • Page 19: Cleaning & Maintenance

    cleaning & maintenance Clean the hob after each use to maintain it in good condition. Food residue can create stubborn stains if not removed directly after use. Use a mild cleaning detergent to clean the hob. Burner parts and the pan supports should not be cleaned in the dishwasher. The dishwasher detergent can corrode the materials.
  • Page 20: Installation Instructions

    • Attention: any change to the appliance’s interior, including fitting and changing the power cable, must only be performed by a qualified electricien. SPACE AROUND THE HOB Sufficient clearance around the hob is essential for a safe use of the hob. Check that there is sufficient clearance. Dimensions IKG6020RVS min. 650 min. 600 min. 450 min. 90 IKG7020WRVS min.
  • Page 21 OUTER DIMENSIONS In the drawings below, all the dimensions are displayed in mm. Dimensions in mm IKG6020RVS IKG7020WRVS INSTALLATION DIMENSIONS In the drawing below, all the dimensions are displayed in mm. Dimensions in mm IKG6020RVS IKG7020WRVS E* keep this distance when in case of a stone back wall, such as tiles.
  • Page 22 3 Rapid burner 4 Wok burner * Check with the service organisation of Inventum if you want to adjust the appliance for different types of gas. Find the method in the manual of the conversion kit. The appliance was configured for the appliance category K (I2K) and is suitable for the use of G and G+ distribution gases according to the specifications as included in the NTA 8837:2012 Annex D with a Wobbe index of 43.46 –...
  • Page 23 INVENTUM INVENTUM Manufacturer Model IKG6020RVS IKG7020WRVS Type of hob Number of cooking zones Heating technology-1 Format-1 Help Help Energy-efficiency-1 N.v.t. N.v.t. Heating technology-2 Format-2 Normaal Normaal Energy-efficiency-2 59,0 59,0 Heating technology-3 Format-3 Normaal Normaal Energy-efficiency-3 59,0 59,0 Heating technology-4 Format-4...
  • Page 24 3. Om aanspraak te maken op de 5 jaar Inventum garantie kun je teruggaan naar de winkel waar je het product hebt gekocht of contact opnemen met de consumentenservice van Inventum via het formulier op www.inventum.eu/service-aanvraag.
  • Page 25 Als je beschadigingen aantreft, dien je deze binnen 5 werkdagen na aankoop te melden bij de winkel waar je het product hebt gekocht, of bij de consumentenservice van Inventum via het contactformulier op de website www.inventum.eu/service-aanvraag.
  • Page 26 3. The 3-year extended warranty can only be applied for if you are in the possession of a copy of the original receipt and the Inventum 5-year warranty certificate.
  • Page 27 3. The inspection to establish whether repair is possible involves a charge. You need to grant your permission for this, in advance. 4. In the event of a large domestic appliance, Inventum, at your request, can send out a service engineer. In that case, you will be charged the call-out costs, as well as parts and labour.
  • Page 28 Inventum Huishoudelijke Apparaten B.V. Meander 861 6825 MH Arnhem Tel: 0800-4583688 info@inventum.eu www.inventum.eu twitter.com/inventum1908 facebook.com/inventum1908 youtube.com/inventum1908 IKG6020RVS-IKG7020WRVS/04.0217V Wijzigingen en drukfouten voorbehouden/ Änderungen und Druckfehler vorbehalten/ Sous réserve de modification / Modifications and printing errors reserved...
