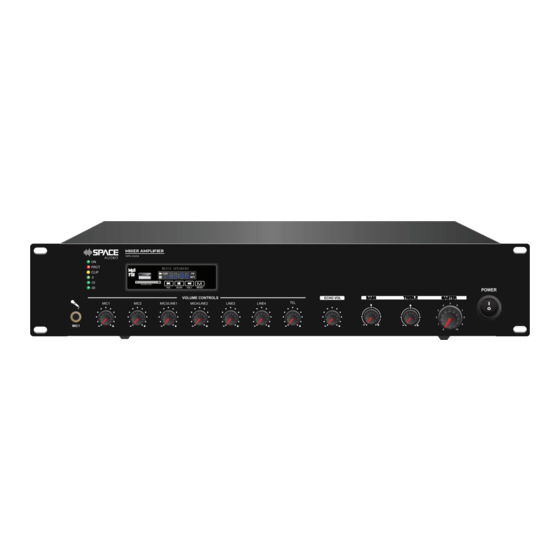

- Page 1 INSTALLATION AND OPERATION MANUAL SPA-120A • SPA-240A Mixer Amplifier with MP3 / FM / BT Caution: Please read this manual carefully before operating Damage caused by misuse is not covered by the warranty...
- Page 2 TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. TO PREVENT ELECTRICAL SHOCK, MATCH WIDE BLADE PLUG TO WIDE SLOT, FULLY INSERT. SPA-120A • SPA-240A - User Manual • HELPLINE 0861 40 41 42 • www.spacetv.co.za...
- Page 3 6.3mm phone jack input. Line 1-2 input of RCA input and one RCA line output. Telephone input with VOX priority and MOH (Music on Hold). • Volume control for Mic1-3, line1-2, Mp3/FM, bass/treble and master • With short-circuit, clip, overload and high temp protection • AC220V or 115V & 24V DC both operation system SPA-120A • SPA-240A - User Manual • HELPLINE 0861 40 41 42 • www.spacetv.co.za...
- Page 4 9. Speaker output 70V (+). 19. Line 3 Input. 10. Speaker output 100V (+). 20. Line 4 Input. 11. Tel input COM (-). 21. Line Output. SPA-120A • SPA-240A - User Manual • HELPLINE 0861 40 41 42 • www.spacetv.co.za...
- Page 5 The total wattage set on the secondary side of the transformers on your speaker line must not exceed the maximum RMS output power: 120W to 240W. Failure to respect this may cause permanent damage to the amplifier. SPA-120A • SPA-240A - User Manual • HELPLINE 0861 40 41 42 • www.spacetv.co.za...
- Page 6 TREBLE control clockwise boosts the high frequencies in the audio, whilst moving it anticlockwise will cut these high frequencies. Adjust these EQ controls to suit the type of audio signal or compensate for the room acoustics. USB/SD Playback • Push a USB pen drive into the USB port and/or an SD card into the SD card input. • Press the CD/USB/SD button to ensure that the player is set to play from the required memory device. • Press the PLAY/PAUSE button to play the current track and press again to pause as needed. • Searching and playback of tracks is the same as described above for the CD player SPA-120A • SPA-240A - User Manual • HELPLINE 0861 40 41 42 • www.spacetv.co.za...
- Page 7 Music on Hold • This output will feed music on your telephone system or PABX for people waiting to be answered. • A dedicated input should be available on your telephone system. • Please refer to a qualified technician if you can’t identify this input. • Outgoing signal should be connected to G and H. Telephone Paging Input • This special TEL input will allow you to page in your PA system using your own telephone set or PABX system. • At the end of the announcement, the system will return to its normal operation. The telephone paging input with priority except EMC (fire alarm) input. • Final volume adjustment will be made with the Tel Paging volume control located on front panel. CONNECTION DIAGRAMS SPA-120A • SPA-240A - User Manual • HELPLINE 0861 40 41 42 • www.spacetv.co.za...
- Page 8 The Warranty is a carry-in Warranty, alternatively this product must be returned to the store or place of purchase. Please retain receipt as proof of purchase. Manufactured in China. SPA-120A • SPA-240A - User Manual • HELPLINE 0861 40 41 42 • www.spacetv.co.za...
