- Page 1 Manual Series Art. no.: 0967 SB Art. no.: 0968 SB Art. no.: 0969 SB -12A FB 04-243 Rev. 8 Revision: 23.01.2019...
-
Page 2: Table Of Contents
Directory Foreword Safety Instructions Cleaning & Disinfection Getting to Know the Unit Before First Use Area of Application Operation Application Operation Steps Working Positioning Suction Exchange Micro Filter Exchange Control Unit Filter Clamping the Bur/Tool Setting up the Speed Foot Switch Maintenance &... -
Page 3: Foreword
Foreword The SB foot care unit was produced according to strict quality criteria and uses the latest technology in its design. The images in this manual may vary slightly from the product you have bought as we are constantly developing our products. This user manual includes a detailed description and explanation of how to use the SB unit. -
Page 4: Safety Instructions
Safety Instructions The equipment should only be used by trained operators. The installation of the working area has to cor- respond to the relevant regulations. Set up the unit in such a way, that the air slits are not blocked and the extracted air can escape well. To avoid the risk of electrocution only connect the device to the mains power supply. - Page 5 Safety Instructions thorized service center. Prevent your hair from wrapping itself around moving parts. If applicable, wear a hair net. When working with materials, which might create dust or moisture, use a drilling unit with suction or spray technique. Wear a nose and mouth protection.
- Page 6 Safety Instructions chuck (test this with a dipstick and clean if necessary), • the inserted tool sits properly in the chuck and will not cant/jam while clamping it, • the tool is approved for using it at the max- imum speed (see manufacturer’s instruc- tions) or only use the speed required by the instrument, •...
- Page 7 Safety Instructions accomplished by an authorized specialist. The mains cable may also only be changed by the manufacturer, or an authorized specialist. Maintenance records may be supplied to re- pair workshops and trained technicians upon request. Never remove the housing, especial- ly not while the equipment is plugged into the socket, since some components are under electric voltage.
-
Page 8: Cleaning & Disinfection
Cleaning & Disinfection The device is designed to be compatible with rotating in- struments which do not penetrate the skin or mucosal or inadvertently may still cause injuries. For this application please adhere to the cleaning and disinfection instructions provided be- low. -
Page 9: Getting To Know The Unit

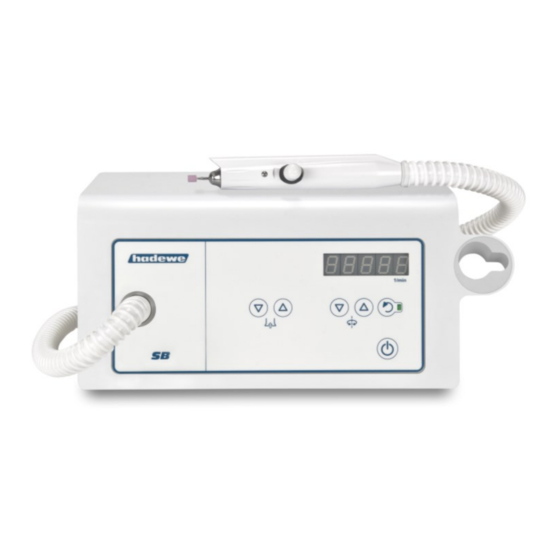

Getting to Know the Unit decrease the suction output increase the suction output reduce the speed increase the speed display of speed/suction level change direction of rotation LED is ON during reverse rotation main switch switching ON/OFF the unit (Standby) connecting socket for foot switch... -
Page 10: Before First Use
Before First Use Please read through the instructions Operation carefully before using the unit and The working area must conform to carefully note the safety advice. the conditions described. Set up the Always keep this manual accessible unit in such a way, that the air slits to any users of the drill. - Page 11 Before First Use If you have a foot switch, insert its plug into the port on the right of the device which displays this symbol Check that the filter bag and dust filter are correctly fitted. Ensure that the tool is fixed. On the left side in the back of the device you will find the main power switch.
-
Page 12: Application
Application Operation Steps holder on the right of the unit. Alter- natively, you can switch the device In the following section the order in to standby by pressing the button which you should use the device is on the foot switch. described. -
Page 13: Working Positioning
Application Work Positioning The following images are examples of how to work on various parts of the foot. Always make sure that the foot is firmly gripped and that you can work freely and without strain. -
Page 14: Suction
Application Suction Switch on the suction with button (2). The suction output can be regu- lated in 5 levels. You will see the selected level in the display. Level 0 would mean that the suction is turned off. In case the suction motor over- heats, the unit will switch off auto- matically. -
Page 15: Exchange Control Unit Filter
Application At first, unfold the paper of the pa- As an option you may also use the per filter (art. 5115) bag and push micro filter (art. 5179) instead of your finger into the opening in the paper filter (art. 5115). front. -
Page 16: Clamping The Bur/Tool
Clamping the Bur/Tool Foot Switch (art. 0970) The handpiece is equipped with a Only use the original hadewe foot chuck, which can hold all burs with switch, to avoid any damages. In- a diameter of 2.35 mm (this is the... -
Page 17: Maintenance & Care
Maintenance & Care Cleaning the Chuck In the process of time, some dirt might collect itself within the hand- piece and might affect its functions. Therefore, the chuck has to be cleaned monthly. How to remove the chuck To assemble the chuck, follow the steps in reverse order. -
Page 18: Maintenance Overview
Maintenance & Care Rinse the chuck very well, and make sure you let it dry well after- wards. Cover your index finger with a very little amount (just a drop) of oil and rub in between your thumb and index finger. Dab off the oil until your fingers is only covered with a very thin film of oil. -
Page 19: Handling Instructions
A of rust. In cases in which a second disadvantage is the strong- rust infestation was found within the... -
Page 20: Troubleshooting
The bur/tool itself can be tested with Foot switch is used constantly or the hadewe Bur Shaft Tester faulty. → Pull out the socket of (art. 4990) to see if it is bent. the foot switch to see if this is the cause. -
Page 21: Technical Details
Technical Details 0967 SB 0969 SB total weight: 3,8 kg total weight: 3,8 kg dimension: W273xH142xD186mm dimension: W273xH142xD186 mm input: 230 V~, 50 Hz, 0,9 A input: 230 V~, 50 Hz, 0,9 A vacuum: 2,9 - 5,8 kPa vacuum: 2,9 - 5,8 kPa fuse primary: fuse primary: F1:315mA time delayed safety fuse... - Page 22 Technical Details Ambient Conditions Inspection interval for repeated control: 1 year The device is intended for use in Technical Information: dry closed rooms Safety class: II Application: Type B (separate Operation: Temp.: +10°C to +26°C measuring of discharge current not Rel.
- Page 23 (WEEE Reg.-Nr. DE20392713, b2b Keep dry! device). For disposal of this unit out of Germany, please contact the site ON/OFF button (standby) where you bought this hadewe (no disconnection from main product. power supply) Note for the disposal of the device/...
- Page 24 Technical Details Information on electromagnetic compatibility in accordance with DIN EN 60601-1-2 Guidance and Manufacturer's Declaration – Electromagnetic Emissions The device is suitable for use in the specified electromagnetic environment. The customer and/or the user of the pa-on should assure that it is used in an electromagnetic environment as described below: Emissions Test Compliance...
- Page 25 Technical Details Guidance and Manufacturer's Declaration – Electromagnetic Immunity IEC 60601-1-2 The device is suitable for use in the specified electromagnetic environment. The customer and/or the user of the device should assure that it is used in an electromagnetic environment as described below: Immunity Test IEC 60601 Test...
- Page 26 Technical Details Guidance and Manufacturer's Declaration – Electromagnetic Immunity IEC 60601-1-2 The device is suitable for use in the specified electromagnetic environment. The customer and/or the user of the device should assure that it is used in an electromagnetic environment as described below: Immunity Test IEC 60601 Test Level...
- Page 27 Technical Details a) Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile radios, amateur radio, AM and FM radio broadcast, and TV broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be consid- ered.
- Page 28 GmbH Grambartstraße 10 30165 Hannover Germany info@hadewe.de www.hadewe.de...
