VOT1E

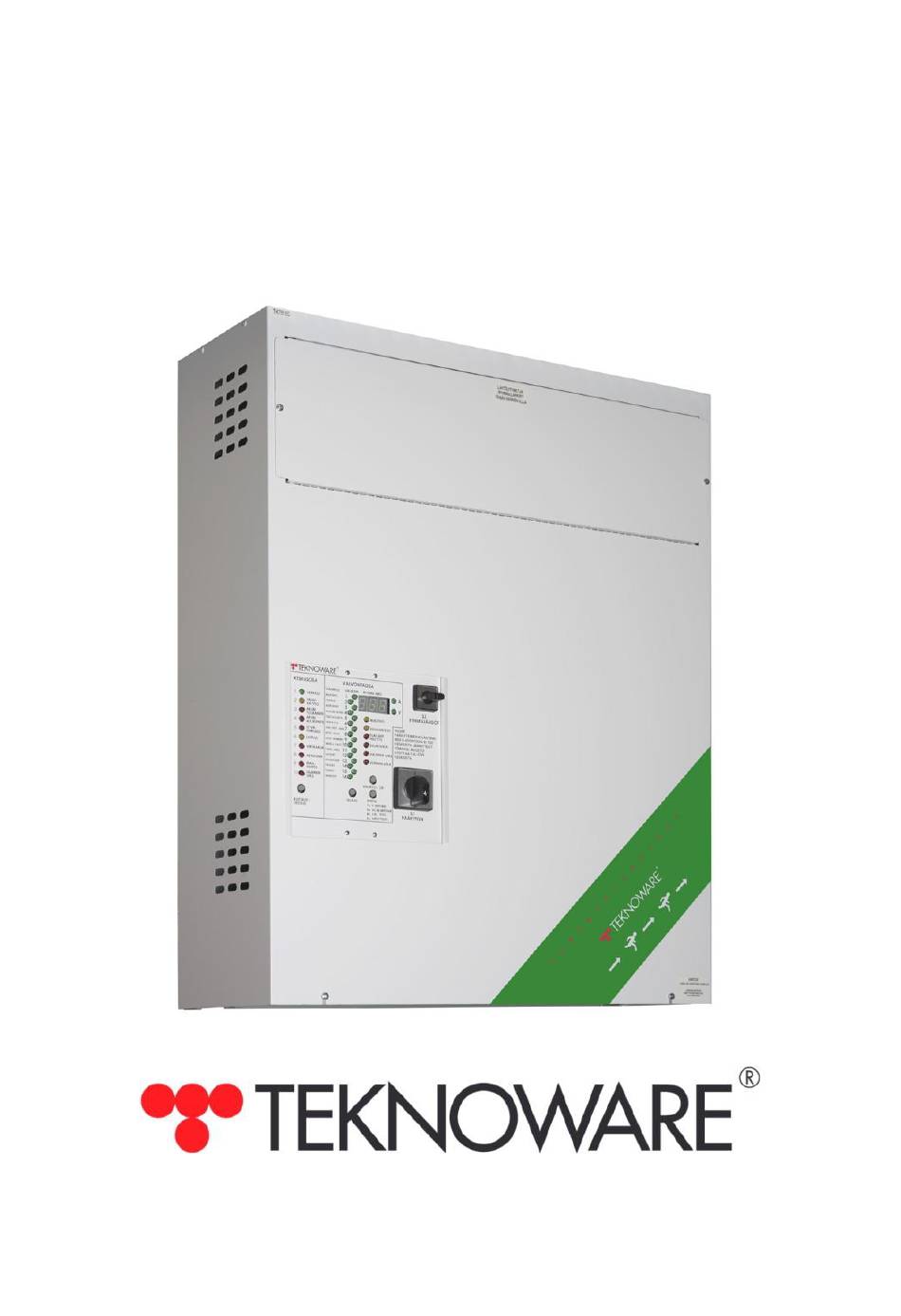

TKT66 TAPSA CONTROL CENTRAL BATTERY UNIT
FOR EMERGENCY LIGHTING
Installation and maintenance instructions
Made In Finland

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TKT66 and is the answer not in the manual?

Questions and answers

Related Manuals for Teknoware TKT66

Summary of Contents for Teknoware TKT66

  • Page 1 VOT1E TKT66 TAPSA CONTROL CENTRAL BATTERY UNIT FOR EMERGENCY LIGHTING Installation and maintenance instructions Made In Finland...

  • Page 2: Table Of Contents

    5.2.1 Parts layout ............................... 26 5.2.2 Circuit wiring in parallel connection ........................ 27 5.2.3 DIP switch settings in circuit boards ........................ 28 5.3 Commissioning ..........................29 5.3.1 Setting of battery capacity ..........................29 VOT1; Rev 1.5; EN; 5.11.2015 TKT66 – Installation and maintenance...
  • Page 3 APPENDIX 7: Central battery unit main diagram, 3-phase ..........63 APPENDIX 8: Menu selections .................... 64 © Copyright 2014 Teknoware Oy – We reserve the right to make modifications without notice VOT1; Rev 1.5; EN; 5.11.2015 TKT66 – Installation and maintenance...

  • Page 4: Safety Instructions

    Store the unit and the batteries in the recommended storing temperature of +10 – 30C.  If the batteries are stored for a longer period of time, they must be recharged every 6 months for at least 12 hours at a time. VOT1; Rev 1.5; EN; 5.11.2015 TKT66 – Installation and maintenance...

  • Page 5: Product Description

    Control and printer Control and LCD display Control and LON interface Control, printer, and LCD display Control, LCD display and LON interface Charging for NiCd batteries Cabinet construction with a lockable door VOT1; Rev 1.5; EN; 5.11.2015 TKT66 – Installation and maintenance...

  • Page 6: List Of Optional Features

    LCD display (optional)  in the report, the test date, possible faulty luminaires, duration of the test and the condition of the battery can be seen  interface options for central monitoring VOT1; Rev 1.5; EN; 5.11.2015 TKT66 – Installation and maintenance...

  • Page 7: Technical Specifications

    The central battery unit can be set for either addressable monitoring of the luminaires or for circuit monitoring. In the addressable monitoring of the luminaires, the luminaires must be equipped with an address module from Teknoware. All the Teknoware luminaires the type code of which ends in letter K are fitted with this feature.

  • Page 8: Directives And Standards

    EN 60439-1 + A1: 2005; Distribution units. Part 1: Requirements for type tested and partly type tested units. IEC 62034: 2006; Automatic test systems for battery powered emergency escape lighting VOT1; Rev 1.5; EN; 5.11.2015 TKT66 – Installation and maintenance...
  • Page 9 (EMC)-Part 6-3: Generic standard - Emission standard for residential, commercial and light industrial environments. EN 61000-6-2: 2005; Electromagnetic compatibility (EMC) - Part 6-2: Generic standards - Immunity for industrial environments VOT1; Rev 1.5; EN; 5.11.2015 TKT66 – Installation and maintenance...

  • Page 10: Description Of Operations

    NOTE: When parallel connections are used, the output circuits’ connectors running the circuit numbers may change. The circuit numbers must be changed to correspond with the amount of the connected circuits. VOT1; Rev 1.5; EN; 5.11.2015 TKT66 – Installation and maintenance...

  • Page 11: Control Unit

    With the settings the current range can be changed between 10 and 310 mA. The displays of the LEDs also operate in within this range. Also, in VOT1; Rev 1.5; EN; 5.11.2015 TKT66 – Installation and maintenance...

  • Page 12: Operation Of Central Battery Unit

    In circuit monitoring, the LEDs numbered from 16 to 1 will be lit; the bigger the circuit input power, the greater the number of lit LEDs. The information of each circuit will be shown for about four seconds at a time. VOT1; Rev 1.5; EN; 5.11.2015 TKT66 – Installation and maintenance...

  • Page 13: Central Module Panel

    Reset / Test button. discharge limit (173 V). Battery operation and Internal fault The mains voltage must have returned before the LEDs are also lit. deep discharge alarm can be reset. VOT1; Rev 1.5; EN; 5.11.2015 TKT66 – Installation and maintenance...
  • Page 14 9 EARTH Possible earth leakage inside the central battery unit. LEAKAGE central battery unit. If there is not earth leakage, the earth leakage sensor might be broken. VOT1; Rev 1.5; EN; 5.11.2015 TKT66 – Installation and maintenance...

  • Page 15: Control Module Panel Luminaire Monitoring Led's And Menu Settings

    NOTE: This action requires a printer, which is an optional feature TST6631 or the central 2. Press the SET button once. battery units of the type Tapsa Control TKT66xxC(N)D(L). Number 1 will appear in the display. VOT1; Rev 1.5; EN; 5.11.2015 TKT66 – Installation and maintenance...
  • Page 16 3. Press the SET button so that battery unit. number “1” shows in the display. 4. Acknowledge by pressing the BROWSE button again. The settings locking is removed and you can now change the operational settings. VOT1; Rev 1.5; EN; 5.11.2015 TKT66 – Installation and maintenance...
  • Page 17 The automatic luminaire test is made once per day on the chosen time of the day. The automatic battery test is made twice a year of January and 4 of July). VOT1; Rev 1.5; EN; 5.11.2015 TKT66 – Installation and maintenance...
  • Page 18 3. Press the SET button until the value you wish to select shows in the display. For example 15 = 15:00 = 3 pm The luminaire test time has changed VOT1; Rev 1.5; EN; 5.11.2015 TKT66 – Installation and maintenance...
  • Page 19 210 V. The the display. limit that is reached first ends the test. The time and the end voltage are recorded. The voltage limit has been changed VOT1; Rev 1.5; EN; 5.11.2015 TKT66 – Installation and maintenance...
  • Page 20 Use this option to set the minutes. 16 MINUTES The minutes are set, 00...59. Note! If both battery and mains are disconnected, the factory defaults are restored and the control unit needs to be reconfigured. VOT1; Rev 1.5; EN; 5.11.2015 TKT66 – Installation and maintenance...

  • Page 21: Control Module Panel Test Functions And Alarms

    Starting the luminaire test. 4. Accept the selection with the MENU / OK button. The luminaire test starts. If a faulty luminaire was found in any of the circuits, its corresponding LED will VOT1; Rev 1.5; EN; 5.11.2015 TKT66 – Installation and maintenance...
  • Page 22 (Teknoware types ending with –K, or external luminaires fitted with Teknoware address module) that are connected to the central battery unit are switched on. This feature can be activated by LOCAL CONTR.

  • Page 23: Buttons

    4 s LUMIN. TEST Press and hold SET for 4 seconds: start of the luminaire test 6 s BATT. TEST Press and hold SET for 6 seconds: start of the battery test VOT1; Rev 1.5; EN; 5.11.2015 TKT66 – Installation and maintenance...

  • Page 24: System Planning And Installation

    The following points should be taken into consideration when planning addressable monitoring:  The luminaires used in the system must be manufactured by Teknoware, and their type code must end with a 'K' (For example TWT6081K) or external luminaires fitted with Teknoware address module.
  • Page 25 5. Connect the alarms and the remote control switch into the connectors shown in APPENDIX 4 and APPENDIX 5. 6. Set the system date on time so that the automatic tests can take place when scheduled (factory setting at 00.00 o’clock) VOT1; Rev 1.5; EN; 5.11.2015 TKT66 – Installation and maintenance...

  • Page 26: Parts Layout

    5.2.1 Parts layout Battery fuses F2 and F3 Distribution fuse F1 Connectors X1- 3 and fuses F1- or F1, L1-L3 in F models Dip switches for XST2618 and XST0201 Mode links VOT1; Rev 1.5; EN; 5.11.2015 TKT66 – Installation and maintenance...

  • Page 27: Circuit Wiring In Parallel Connection

    Note! If you are using parallel connections please note that all output circuits in same change over board has 700 W or 1400 W outputs. The next chapter has an explanation how to set the changeover board to a parallel connection mode. VOT1; Rev 1.5; EN; 5.11.2015 TKT66 – Installation and maintenance...

  • Page 28: Dip Switch Settings In Circuit Boards

    The factory setting for the circuit boards is addressable monitoring. For more information, see Chapters 4.3 Circuit board settings and 4.4 Parallel connection of output circuits. Addressable monitoring active (Factory settings) Circuit monitoring active VOT1; Rev 1.5; EN; 5.11.2015 TKT66 – Installation and maintenance...

  • Page 29: Commissioning

    1 = 7 Ah 2 = 17 Ah 3 = 24 Ah 4 = 38 Ah ALL OFF = 65 Ah 5 = NC 6 = NC Forced charge button for batteries VOT1; Rev 1.5; EN; 5.11.2015 TKT66 – Installation and maintenance...

  • Page 30: Forced Charging Of Batteries

    4.9 , Control Module panel. The warm-up phase is not necessary when using addressable monitoring. In addressable monitoring, the central battery unit sends inquiries to the circuits in order to determine the luminaires in the circuits. VOT1; Rev 1.5; EN; 5.11.2015 TKT66 – Installation and maintenance...

  • Page 31: Maintenance

    9. Place the batteries' temperature sensor between the batteries. NOTE! Misplacing the temperature sensor may damage the batteries! 10. Connect the battery cables (pay attention to polarity and insulation distances). VOT1; Rev 1.5; EN; 5.11.2015 TKT66 – Installation and maintenance...

  • Page 32: Disposal

    1.5 s, the previous menu is displayed. The middle and lowermost buttons are used for browsing for options and changing the value of the selected parameter. VOT1; Rev 1.5; EN; 5.11.2015 TKT66 – Installation and maintenance...

  • Page 33: Lcd Content

    Figure 3. Main menu 8.1.4 Test history When you select Browse luminaire tests, the display below is shown. Luminaire test log 23.03.11 23:59 OK 22.03.11 23:59 ERROR Figure 4. Luminaire test log VOT1; Rev 1.5; EN; 5.11.2015 TKT66 – Installation and maintenance...

  • Page 34: Battery Test History

    SETUP button for 1.5 s. Browse luminaire tests Date Time Log Browse battery tests 23.03.11 10:30 Error Browse error log 24.03.11 10:30 Setup End of log Figure 7. Main menu Browse battery tests VOT1; Rev 1.5; EN; 5.11.2015 TKT66 – Installation and maintenance...

  • Page 35: Error Log

    SETUP button, after which the new settings will be stored in the central battery system in a matter of few seconds. To move back to the higher-level menu from the test log, press the SETUP button for 1.5 s. VOT1; Rev 1.5; EN; 5.11.2015 TKT66 – Installation and maintenance...

  • Page 36: External Usb Connection

    The buttons on the LCD cannot be used if there is an active USB connection between the LCD and the PC. For more information, please refer to the PC programme user's guide. VOT1; Rev 1.5; EN; 5.11.2015 TKT66 – Installation and maintenance...

  • Page 37: Printer

    3. Use the SET button to select 1. Print a report of all circuits. 4. Accept the selection with the MENU / OK button. The report can be attached to the central battery unit logbook to indicate a completed test. VOT1; Rev 1.5; EN; 5.11.2015 TKT66 – Installation and maintenance...

  • Page 38: Appendix 1: Report Layout

    O = OK B= Circuit Overload # = fault C= Fuse Fault ? =Unknown luminaire (added, automatic D= Output Circuit Fault configuration not in use  = Luminaire not connected VOT1; Rev 1.5; EN; 5.11.2015 TKT66 – Installation and maintenance...

  • Page 39: Appendix 2: Mechanical Dimensions

    The stronger the current of the circuit, the higher the LED column. The LED column grows higher starting from down to upwards. APPENDIX 2: Mechanical dimensions TKT66: VOT1; Rev 1.5; EN; 5.11.2015 TKT66 – Installation and maintenance...
  • Page 40 TKT66..P: VOT1; Rev 1.5; EN; 5.11.2015 TKT66 – Installation and maintenance...

  • Page 41: Appendix 3: Connection Alternatives For Batteries

    APPENDIX 3: Connection alternatives for batteries VOT1; Rev 1.5; EN; 5.11.2015 TKT66 – Installation and maintenance...

  • Page 42: Appendix 4: Circuit Diagram With 1-Phase Input And Bcm Connection

    APPENDIX 4: Circuit diagram with 1-phase input and BCM connection VOT1; Rev 1.5; EN; 5.11.2015 TKT66 – Installation and maintenance...
  • Page 43 VOT1; Rev 1.5; EN; 5.11.2015 TKT66 – Installation and maintenance...
  • Page 44 VOT1; Rev 1.5; EN; 5.11.2015 TKT66 – Installation and maintenance...
  • Page 45 VOT1; Rev 1.5; EN; 5.11.2015 TKT66 – Installation and maintenance...
  • Page 46 VOT1; Rev 1.5; EN; 5.11.2015 TKT66 – Installation and maintenance...
  • Page 47 VOT1; Rev 1.5; EN; 5.11.2015 TKT66 – Installation and maintenance...
  • Page 48 VOT1; Rev 1.5; EN; 5.11.2015 TKT66 – Installation and maintenance...
  • Page 49 VOT1; Rev 1.5; EN; 5.11.2015 TKT66 – Installation and maintenance...
  • Page 50 VOT1; Rev 1.5; EN; 5.11.2015 TKT66 – Installation and maintenance...
  • Page 51 VOT1; Rev 1.5; EN; 5.11.2015 TKT66 – Installation and maintenance...

  • Page 52: Appendix 5: Circuit Diagram With 3-Phase Input

    APPENDIX 5: Circuit diagram with 3-phase input VOT1; Rev 1.5; EN; 5.11.2015 TKT66 – Installation and maintenance...
  • Page 53 VOT1; Rev 1.5; EN; 5.11.2015 TKT66 – Installation and maintenance...
  • Page 54 VOT1; Rev 1.5; EN; 5.11.2015 TKT66 – Installation and maintenance...
  • Page 55 VOT1; Rev 1.5; EN; 5.11.2015 TKT66 – Installation and maintenance...
  • Page 56 VOT1; Rev 1.5; EN; 5.11.2015 TKT66 – Installation and maintenance...
  • Page 57 VOT1; Rev 1.5; EN; 5.11.2015 TKT66 – Installation and maintenance...
  • Page 58 VOT1; Rev 1.5; EN; 5.11.2015 TKT66 – Installation and maintenance...
  • Page 59 VOT1; Rev 1.5; EN; 5.11.2015 TKT66 – Installation and maintenance...
  • Page 60 VOT1; Rev 1.5; EN; 5.11.2015 TKT66 – Installation and maintenance...
  • Page 61 VOT1; Rev 1.5; EN; 5.11.2015 TKT66 – Installation and maintenance...

  • Page 62: Appendix 6: Central Battery Unit Main Diagram, 1-Phase

    APPENDIX 6: Central battery unit main diagram, 1-phase VOT1; Rev 1.5; EN; 5.11.2015 TKT66 – Installation and maintenance...

  • Page 63: Appendix 7: Central Battery Unit Main Diagram, 3-Phase

    APPENDIX 7: Central battery unit main diagram, 3-phase VOT1; Rev 1.5; EN; 5.11.2015 TKT66 – Installation and maintenance...

  • Page 64: Appendix 8: Menu Selections

    APPENDIX 8: Menu selections VOT1; Rev 1.5; EN; 5.11.2015 TKT66 – Installation and maintenance...
