Replacing the needle

Change the needle regularly, especially when it shows signs of wear or if it causes
problems.
2
1
2
3
Turn the power switch to off ("O") when
carrying out below operations!

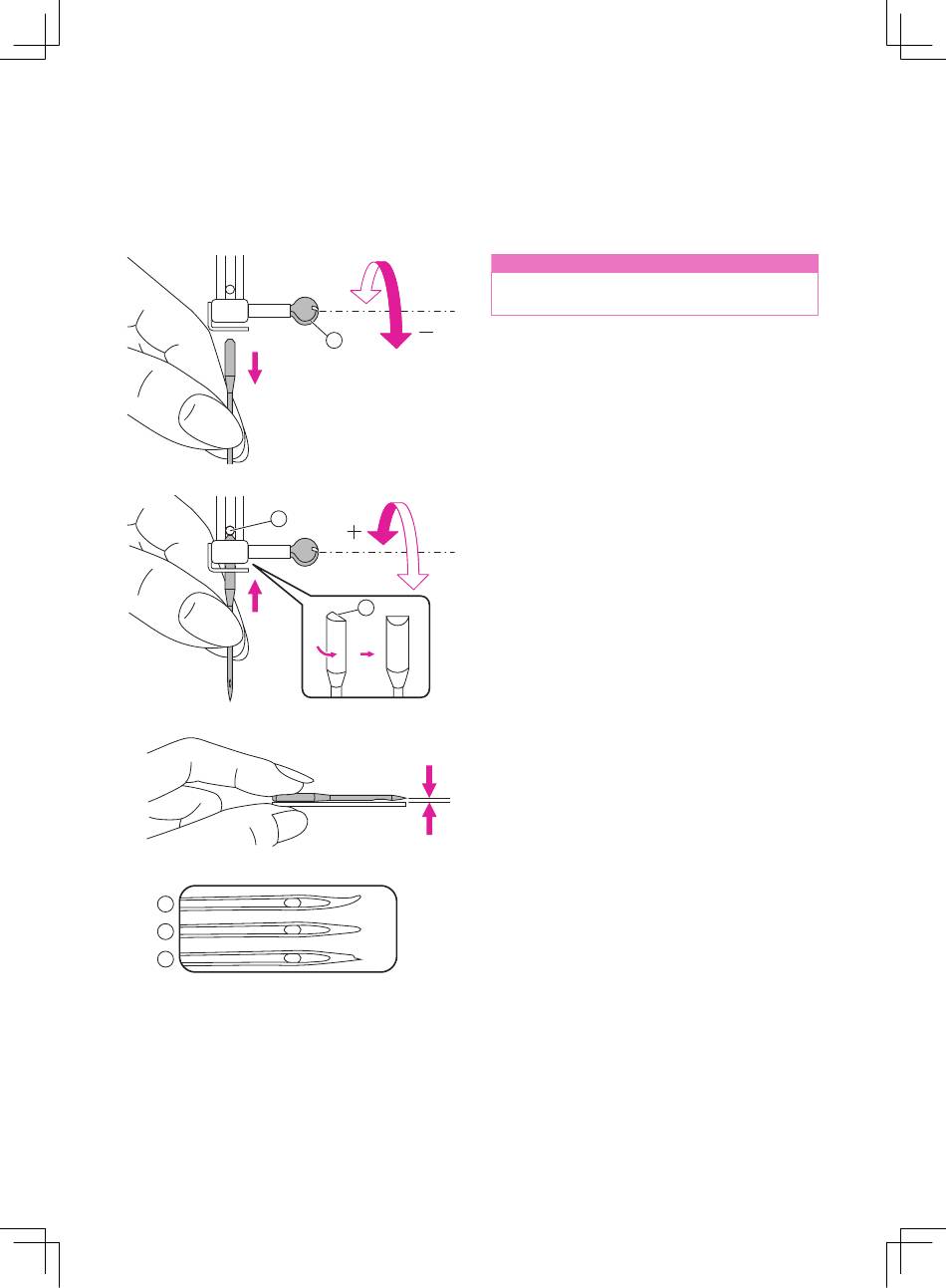

Turn the handwheel toward you to raise the
1
needle then loosen the needle clamp screw to
remove the needle.
①
When inserting a new needle, keep the flat
side of the shaft to the back.
Push the needle into the clamp until it touches
the pin and stops. Then secure it by tightening
the needle clamp screw.
①
1
②
Needles must be in perfect condition.
Problems can occur with:
①
②
③
15
n Attention
Needle clamp screw
Flat side of the shaft
Pin
Bent needles
Blunt needles
Damaged points
