User Manual

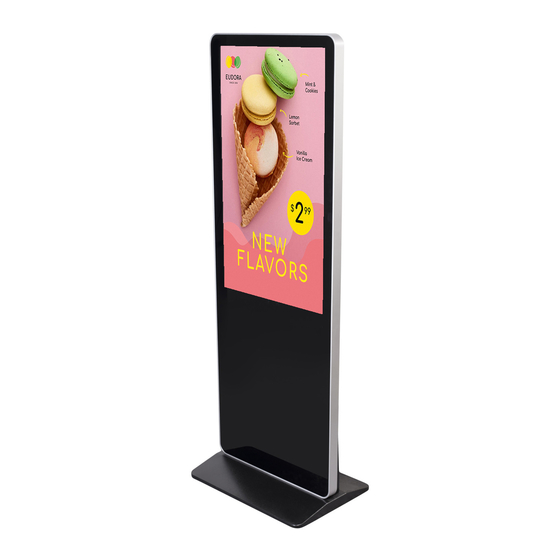

Model: FTDS43BK-T
Description: 43" Indoor Floor
Standing Digital Signage
Operating Instructions for Digital Signage
Note: Before using the product, please read the instructions carefully!
Do not attempt to disassemble this product. If the product does not work properly, please call our
Customer Service Department at .
1
Global Digital Display
Rev. 01/03/19
Advertisement
Table of Contents
Related Manuals for Global Digital Display FTDS43BK-T
Summary of Contents for Global Digital Display FTDS43BK-T
- Page 1 User Manual Model: FTDS43BK-T Description: 43” Indoor Floor Standing Digital Signage Operating Instructions for Digital Signage Note: Before using the product, please read the instructions carefully! Do not attempt to disassemble this product. If the product does not work properly, please call our Customer Service Department at .
-
Page 2: Table Of Contents
Wallpaper Switch.......................... 10 WIFI Setting..........................11 Date & Time..........................12 How to Upload Media Files......................12 How to Copy/Paste/ Delete the media files.................13 Factory Reset..........................14 Choose System Language........................15 Technical Specifications........................16 Troubleshooting..........................18 Cleaning and Maintenance........................20 Global Digital Display Rev. 01/03/19... -
Page 3: Application
Thank you for purchasing the high-performance multi-functional LED backlight Digital Signage. We have considered the factors to ensure personal safety in product design and have tested rigorously at the factory. However, improper installation and use may result in electric shock and fire. Global Digital Display Rev. 01/03/19... - Page 4 If coal gas or other flammable gas leaks, do not pull out the plug of the LCD Digital Signage or other electrical appliances; instead, turn off the gas valve immediately, and open the doors and windows quickly. Global Digital Display Rev. 01/03/19...
- Page 5 Do not use the Digital Signage in stormy weather, especially when there is lightning; instead, please disconnect the power and antenna plugs to avoid lightning strike. Do not disassemble the Digital Signage without permission, or else it may cause electric shock or fire. Please ask qualified technician for repair. Global Digital Display Rev. 01/03/19...
- Page 6 The unit is class-A product, which may cause radio interference in living environment. In this case, please take feasible measures, and use power plug as the disconnection device. Global Digital Display Rev. 01/03/19...
-
Page 7: Interfaces
4. Carefully lift out the unit as shown in Fig. 5 and place it on the shipping box (avoid scratching) (Fig. 6); 5. Assemble the base and the unit with dedicated screws using hex socket wrench as shown in Fig. 6. (Fig. 1) (Fig. 2) (Fig. 3) (Fig. 4) (Fig. 5) (Fig. 6) (Fig. 7) Global Digital Display Rev. 01/03/19... -
Page 8: Steps For Assembly With Casters
Tighten all casters with a 14mm wrench. 2. Connect the base and the digital poster with provided screws. Tighten all screws with an Allen wrench. 3. The assembly is finished: Global Digital Display Rev. 01/03/19... -
Page 9: Description Of Basic Operation
In power on state, enter “System Assistant” and press the “ ” button on the remote control, and the Digital Signage enters standby state. About Launch Desktop Description of Desktop Icons Icon Function Main applications Back Home page Background applications Sound - Sound + Global Digital Display Rev. 01/03/19... -
Page 10: Wallpaper Switch
Wallpaper Switch click “Setting” At the setting menu, click “Display” At the Display setting menu, click “Gallery”, or “Wallpaper” Then select an image you would like to set up as background. Confirm the selection by clicking “Set wallpaper”. Fig. 1 Fig. -
Page 11: Wifi Setting
WIFI Settings 1. Click the Main Apps button ” in the Home page to enter the “APPS” menu interface (Fig. 2); 2. Click the “Settings” icon in the “APPS” menu interface (Fig. 2) and enter “Wi-Fi” menu (Fig. 3); 3. Click options in the “Wi-Fi” menu and set up different options. Fig. -
Page 12: Date & Time
Date & Time 1. Step1: Click the setting 2. Step2: At the setting menu click the display menu 3. Step3: Click Date & Time; Fig. 1 Fig. 2 How to upload media files : Step 1: Open the Android launcher screen and click the explorer app Fig. -
Page 13: How To Copy/Paste/ Delete The Media Files
Fig. 1 Fig. 2 Step 3: At the USB storage menu select the media files which you want to copy to the media folder. Click the Editor button, the pop menu will show then click the Copy.How to Copy / Paste/ Delete the media files: Step 1: Open the Android launcher screen and click the explorer app Fig. -
Page 14: Factory Reset
Fig. 1 Fig. 2 Fig. 3 Factory Reset: 1. Step 1, get into Settings, then click “Backup & reset” (Fig. 1) 2. Step 2, click “Factory data reset” (Fig.2) (Fig. 1) (Fig. 2) Rev. 05/13/19... -
Page 15: Choose System Language
Choose System Language: 1. Step 1: Get into Settings, then click “Language & input” (Fig.1) 2. Step 2: Click “Language”, then you can choose the system language accordingly (Fig. 2) Rev. 05/13/19... -
Page 16: Technical Specifications
Technical Specifications Model Parameters LCD size 43” Panel Light source LED backlight Resolution 1920*1080 (pixels) Brightness (typ.)/(min) 400cd/m (typ.) Contrast (typ.) 4000:1 (typ.) Response (ms) 6ms (typ.) Panel Pixel pitch 0.51 (H) mm * 0.51 (V) mm Refresh rate 60Hz Viewing angle 178°... - Page 17 Decoding resolution 1080P FHD compatible Playback mode Support loop, inter-cut, timer, shim, etc. Compatible network Ethernet, 3G, 4G Touch support Yes Capacitive G+G touch Supported Video Files AVI, MPEG4, WMV, MKV, FLV, MP4, MOV Functions Supported Photo Files JPG, JPEG, BMP, PNG, GIF Audio output, supported files Left and right audio channel, MP3 RTC (real-time clock)
-
Page 18: Troubleshooting
FTDS43BK-T Troubleshooting the Digital Signs - Issue Probable Cause Solutions No picture or sound ➢ • Unit not plugged into wall outlet □ Check that the unit is plugged into wall ➢ Power cord not properly outlet. connected to the terminal on the □... - Page 19 • ➢ No Wi-Fi signal Wi-Fi is not turned on in product □ Check that Wi-Fi is turned on in settings settings. Click the settings icon from the ➢ Wi-Fi is not connected to a network Android home screen. ➢ Low or no signal from the router ➢...
-
Page 20: Cleaning And Maintenance
• Issues using pre- ➢ Mistake in storing content to SlideShow App steps Explorer > Select USB > ◻ installed apps NAND Flash (shown on pg. 11) Select Multi > highlight files > Editor > Select ➢ App is defective Copy >... - Page 21 Names and Contents of Toxic and Hazardous Substances or Elements in the Product Toxic and hazardous substances or elements Part name PBDE Display О О О О О Shell О О О О × × Circuit board assembly * О О...
