DAKOTA ULTRASONICS PR-8V Operation Manual

Sonic tester
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

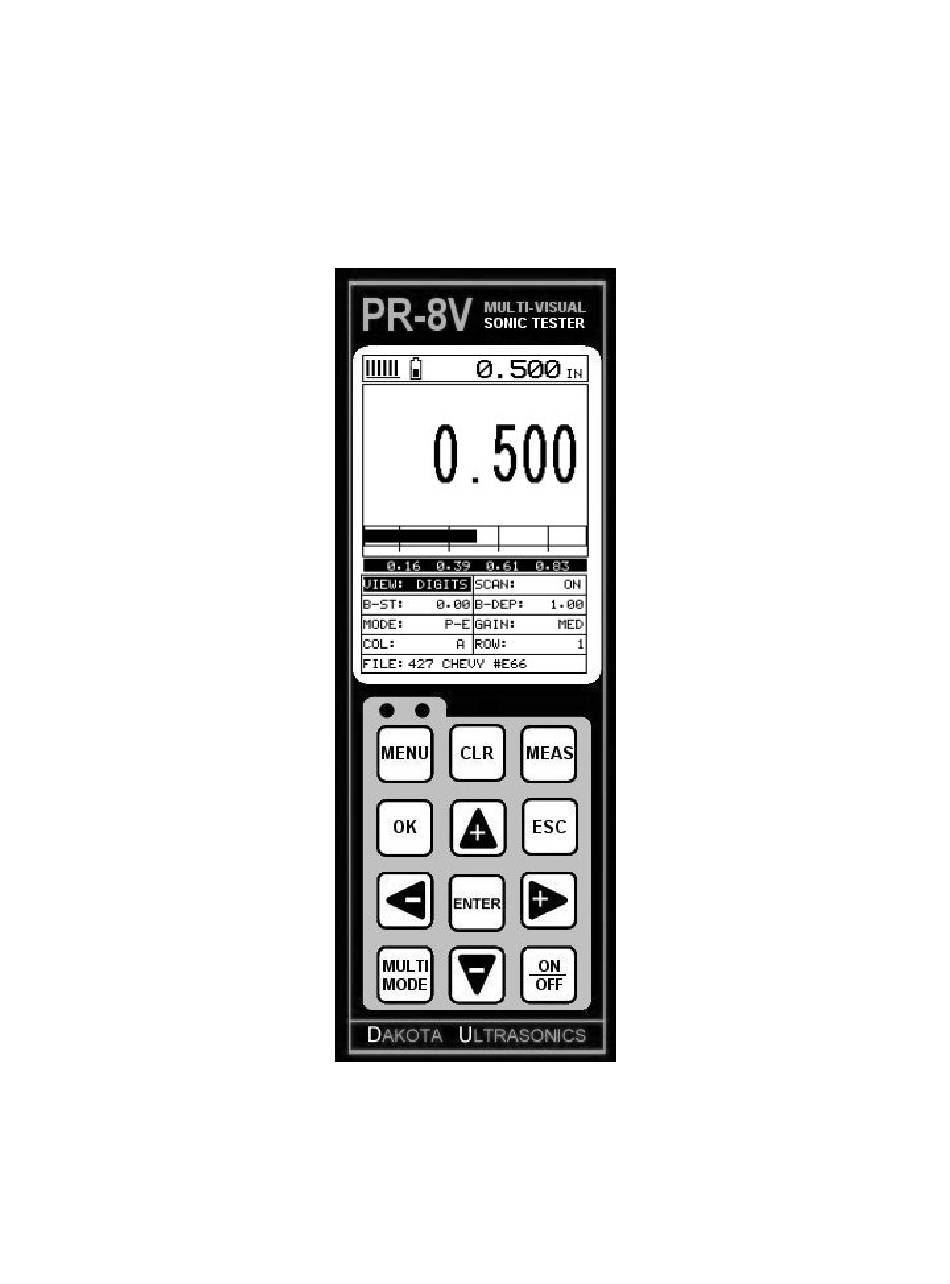

OPERATION MANUAL
DAKOTA ULTRASONICS
P
R
-
8
V
P
R
-
8
V
Sonic Tester
P/N P-158-0002
Rev 1.10, January 2008

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PR-8V and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DAKOTA ULTRASONICS PR-8V

Summary of Contents for DAKOTA ULTRASONICS PR-8V

  • Page 1 OPERATION MANUAL DAKOTA ULTRASONICS Sonic Tester P/N P-158-0002 Rev 1.10, January 2008...

  • Page 3: Table Of Contents

    CHAPTER SEVEN USING THE DIGITS & B-SCAN DISPLAYS ......41 CHAPTER EIGHT THRU PAINT MEASUREMENT TECHNIQUE ....55 CHAPTER NINE ADDITIONAL FEATURES OF THE PR-8V......56 CHAPTER TEN DATA STORAGE – SETUP, EDIT, & VIEW GRIDS ....60 CHAPTER ELEVEN SETUPS – CREATE, STORE, EDIT, & RECALL ....79 CHAPTER TWELVE USING THE UTILITY SOFTWARE........85...

  • Page 5: Chapter One Introduction

    CHAPTER ONE INTRODUCTION The Dakota Ultrasonics model PR-8V is a digital sonic tester with a ton of features geared specifically towards the racing industry. Based on the same operating principles as SONAR, the PR-8V is capable of measuring the thickness of various materials with accuracy as high as ±...

  • Page 6: Chapter Two Quick Startup Guide

    CHAPTER TWO QUICK STARTUP GUIDE Turn the PR-8V on and off using the switch located on the bottom right corner of the keypad. When PR-8V is initially turned on, a flash logo and blinking lights will be displayed prior to entering into the main measurement screen. Note: This section is primarily written as a basic startup guide only.
  • Page 7 ESC to cancel the selecting the transducer. 2.2 Probe Zero & Calibration The next step is to calibrate the PR-8V to the material and transducer being used. If the materials sound velocity is unknown, the PR-8V can be calibrated to a known thickness sample.
  • Page 8 If the material velocity is known, the user may wish to simply enter the velocity number into the PR-8V, rather than have the PR-8V calculate the velocity value on using a know thickness. The steps for entering the velocity are outlined below:...
  • Page 9 PR-8V High Performance Thickness Gauge 1) Press the MENU key once to activate the menu items tab. Press the MENU key multiple times to tab right and the ESC key multiple times to tab left until the CAL menu is highlighted and displaying the submenu items.
  • Page 10 Sometimes the sound velocity of a material is unknown. In this case a sample with a known thickness can be used to determine the sound velocity. It would be very handy to carry a set of mechanical calipers to use in conjunction with the PR-8V for calibration in the field:...
  • Page 11 PR-8V High Performance Thickness Gauge 3) Use the UP and DOWN arrow keys to scroll through the sub menu items until ONE POINT is highlighted. 4) Press the ENTER key to display the Digits Edit Box. 5) Press the UP and DOWN arrow keys to scroll the highlighted value.
  • Page 12 Dakota Ultrasonics Basic Material Type If the material velocity is unknown, and a sample thickness cannot be taken from the material, the user may opt to choose a basic material type from a list with approximate velocity numbers. It’s important to note that these velocities will not always be an exact representation of the material being tested.
  • Page 13 PR-8V High Performance Thickness Gauge 2.3 Measure The PR-8V is now ready to measure. There are two different measurement view options, each with a specific purpose – Digits & B-Scan. The steps below outline how to toggle between the different view mode options: Selecting the Measurement View Option 1) Press the MENU key once to activate the menu items tab.
  • Page 14 Dakota Ultrasonics been set to BSCAN. Use the following steps to adjust these settings directly from the measurement screen as follows: Adjusting the Start (B-ST) & Depth (B-DEP) Press the MEAS key once to activate the measure menu items. Press the MEAS key multiple times to move right and the ESC key multiple times to move left, until the either the B-ST or B-DEP cell is highlighted.
  • Page 15 PR-8V makes 4 measurements a second. In scan mode, the PR-8V makes 32 measurements a second. When the PR-8V is idle, only the left vertical bar and the underline will be displayed. However, when the PR-8V is making a measurement, five or six of the bars should be displayed on the repeatability indicator.

  • Page 16: Chapter Three Keyboard, Menu, & Connector Reference

    CHAPTER THREE KEYBOARD, MENU, & CONNECTOR REFERENCE 3.1 Menu Key (Operation & Sub Menus ) The Menu key activates the primary menu structure containing 9 menu tab groups. These tab groups then contain sub menu items, or functions. The sub menu items have been organized in tab groups according to how closely they are related to the individual tab group names.
  • Page 17 Zero: The PR-8V is zeroed in much the same way that a mechanical micrometer is zeroed. If the PR-8V is not zeroed correctly, all of the measurements made using the PR-8V may be in error by some fixed value. Refer to the section on page 32, for an explanation of this important procedure.
  • Page 18 Units: Toggle between English or Metric units. The readout will change from inches to millimeters. Velocity: Function to calibrate the PR-8V by setting the velocity to a known material velocity. Refer to page 34 for further info. One Point: Performs a single point calibration. This option allows the user to automatically calculate the velocity by entering a known sample thickness.
  • Page 19 Refer to page 81 for further info. Default Setup: Loads a basic default setup. Use only as a last resort when the setups in the PR-8V have been corrupted and a computer is not accessible. Refer to page 83 for further info.
  • Page 20 3.8 XFER (transfer) – Menu Backup Setups: Enables the user the ability to backup the setups currently stored in the PR-8V to a PC via RS232 port. Refer the help section of the PR-8Vsonicview software for a complete electronic manual.
  • Page 21 3.10 MEAS (measurement mode) Key The MEAS key puts the PR-8V into it’s primary mode of operation. In this mode, the user has a complete view of the LCD, as well as control of the Hot Menu Functions.
  • Page 22 Dakota Ultrasonics 1) Use the UP, DOWN, LEFT, and RIGHT arrow keys to increase and decrease the values of the hot function fields. 2) Repeat step 1 until the desired value has been achieved. Alternatively , the B-ST and B-DEP hot function fields can be changed using the Digit Edit Box as follows: 1) Press the ENTER key to display the Digits Edit Box.
  • Page 23 3.15 MULTI MODE Key The MULTI MODE key toggles the measurement mode of the PR-8V, from pulse- echo (flaw mode), to echo -echo (thru paint) mode. This is a quick automatic preset mode that enables the user to change modes without having to manually adjust the mode between pulse-echo and echo-echo.
  • Page 24 Lemo connector. It is designed to connect directly from the PR-8V to a standard AT serial port on a PC. The cable supplied with the PR-8V is a Lemo to 9 pin serial cable. Note: This connector is also used to upgrade the PR-8V with the...

  • Page 25: Chapter Four Principals Of Ultrasonic Measurement

    CHAPTER FOUR PRINCIPALS OF ULTRASONIC MEASUREMENT 4.1 Time versus thickness relationship Ultrasonic thickness measurements depend on measuring the length of time it takes for sound to travel through the material being tested. The ratio of the thickness versus the time is known as the sound velocity. In order to make accurate measurements, a sound velocity must be determined and entered into the instrument.
  • Page 26 Pulse-echo mode measures from the initial pulse (sometimes referred to as an artificial zero) to the first echo (reflection). In this mode, the transducer is placed on a reference disk, located on top of the PR-8V, and a key is pressed to establish a zero point for the particular transducer.
  • Page 27 PR-8V High Performance Thickness Gauge packaged in a single housing but acoustically isolated from each other with a sound barrier. This allows the transducer the ability to achieve very high sensitivity for detecting small defects. Also, the surface of the test material does not have to be as flat in order to obtain good measurements.
  • Page 28 The repetition rate is how often the PR-8V generates a burst of ultrasound. The PR-8V has a fixed repetition rate of 1 kHz, or 1000 times per second. The PR- 8V updates the display 4 times per second in regular measurement mode and 32 times a second in hi speed scan mode.

  • Page 29: Chapter Five Selecting The Measurement Mode

    SELECTING THE MEASUREMENT MODE 5.1 The setup library The PR-8V contains 64 user configurable preset locations to store custom setups for easy recall. These setups can be optimized for the user’s specific application needs and can also be stored on a PC and transferred bi-directionally using Dakota’s PC interface software included with the instrument.
  • Page 30 Dakota Ultrasonics echo mode and echo-echo mode in conjunction when performing inspections on coated materials. Thru coating measurements require special high damped transducers. The most common transducers are the 3.5, 5, and 7.5MHz hi damped transducers. These transducers are suitable for use in both pulse-echo and echo-echo modes. This...
  • Page 31 PR-8V High Performance Thickness Gauge 5.3 Factory Setup Chart Name Comment 1 Gn/AGC Velocity STEEL BASIC ¼” 5MHZ 0.2330 in/uSec STEEL THRU PNT STD ¼ 5MHZ HD 0.2330 in/uSec STEEL THRU PNT EXT ½ 3MHZ HD 0.2330 in/uSec THRU-PAINT (RACING) ¼”...

  • Page 32: Chapter Six Making Measurements

    In this case the reference disk mounted to the PR-8V is not used. This is called two- point calibration and is described on page 37.
  • Page 33 6) Press the OK key to select the transducer and return to the menu screen, or ESC to cancel the material selection. Now that the proper transducer has been selected and connected to the PR-8V, the measurement mode must be chosen according to the type of application. Following...
  • Page 34 Dakota Ultrasonics Selected from a Setup Important Note: Stored setups will save all the parameters of the PR-8V. Therefore, if a transducer was selected in the previous section and a setup is now being recalled, the transducer saved in the setup will overwrite the transducer previously selected.
  • Page 35 PR-8V High Performance Thickness Gauge 6) Press the OK key to select the setup and return to the menu screen, or ESC to cancel the selection process. Press the MEAS key to return to the measurement screen. Alternatively, the measurement mode can be simply selected from the Hot Menu...
  • Page 36 If the PR-8V is not zeroed correctly, all of the measurements taken, may be in error by some fixed value. In order to perform a probe zero, the PR-8V must be in pulse- echo mode. If echo-echo mode was previously selected in the last section, skip this section and continue on to the next.
  • Page 37 8) Press the MEAS key to return to the measurement screen. 6.3 Material Calibration In order for the PR-8V to make accurate measurements, it must be set to the correct sound velocity of the material being measured. Different types of materials have different inherent sound velocities.
  • Page 38 - optimizing linearity over large ranges. The Two Point calibration allows for greater accuracy over small ranges by calculating the probe zero and velocity. The PR-8V provides four simple methods for setting the sound -velocity outlined below: Calibration to a known velocity 1) Press the MENU key once to activate the menu items tab.
  • Page 39 PR-8V High Performance Thickness Gauge Finally, press the MEAS key to return to the measurement screen and begin taking readings.
  • Page 40 Note: It’s always best to calibrate on the thickest location on the sample, rather than on the thinnest location, as the percentage error is much less with respect to the PR-8V’s resolution of +/- .001” (0.01mm).
  • Page 41 PR-8V High Performance Thickness Gauge 4) Press the ENTER key to display the Digits Edit Box. 5) Press the UP and DOWN arrow keys to scroll the highlighted value. 6) Press the LEFT and RIGHT arrow keys to scroll the digit locations.
  • Page 42 Dakota Ultrasonics 1) Using a set of calipers, physically measure two known thickness locations on the sample of material. Note: The two locations should represent the desired thickness range being measured. If the range is from .250” - 1.000”, then the two known locations should represent this range, or be slightly outside or inside of this range.
  • Page 43 PR-8V High Performance Thickness Gauge second known thickness location. Be sure that the reading is stable and the repeatability indicator, located in the top left corner of the display, is fully lit and stable. 10) Use the UP and DOWN arrow keys to highlight the TWO POINT calibration submenu item.
  • Page 44 Dakota Ultrasonics Built in Material Selection 1) Press the MENU key once to activate the menu items tab. Press the MENU key multiple times to tab right, and the ESC key multiple times to tab left, until the CAL menu is highlighted and displaying the submenu items.

  • Page 45: Chapter Seven Using The Digits & B-Scan Displays

    Note: In order to recall and use the new adjustments made to the PR-8V at a later time, the user must save the modified settings in one of the setup locations prior to powering off the unit. Refer page 79 for more information on setups.
  • Page 46 Dakota Ultrasonics 1) Press the MENU key once to activate the menu items tab. Press the MENU key multiple times to tab right, and the ESC key multiple times to tab left, until the DISP menu is highlighted and displaying the submenu items.
  • Page 47 A) Stability of Reading Indicator – Indicates the stability of the return echo on a scale of 1 to 6 – the solid bars displayed in the figure above indicate a repeatable signal. If the PR-8V is displaying a reading from memory, the repeatability indicator will be replaced by the text “MEM”.
  • Page 48 A) Stability of Reading Indicator – Indicates the stability of the echo signal on a scale of 1 to 6 – the solid bars displayed in the figure above indicate a repeatable signal. If the PR-8V is displaying a reading from memory, the repeatability indicator will be replaced by the text “MEM”.
  • Page 49 7.3 Adjusting the B-Scan Start (B-ST) & Depth (B-DEP) In order to use the B-Scan and Scan Bar features of the PR-8V effectively, the starting depth and overall depth must be setup correctly. This can be adjusted using the B-ST (start) and the B-DEP (depth) features of the PR-8V.
  • Page 50 Dakota Ultrasonics the B-ST and B-DEP to reasonable values that zoom in and optimize your graphic representations. Overall range (B-DEP) Once again, just to reiterate, B-DEP is the overall viewable thickness range being tested. This should be set to a valuable slightly larger then the expected maximum range being measured.
  • Page 51 PR-8V High Performance Thickness Gauge Press the OK key to return to the measurement screen, or ESC to cancel entering the B-DEP. The user can also access and adjust the B-DEP range from the tabbed menus. However, this method is a more tedious than making the adjustments using the Hot...
  • Page 52 Dakota Ultrasonics Adjusting the Overall Depth (B-DEP) using the Tabbed Menus 1) Press the MENU key once to activate the menu items tab. Press the MENU key multiple times to tab right, and the ESC key multiple times to tab left, until the DISP menu is highlighted and displaying the submenu items.
  • Page 53 PR-8V High Performance Thickness Gauge 9) Finally, press the MEAS key to return to the measurement screen and begin taking readings. Starting depth (B-ST) The starting B-ST, or starting depth, is the starting thickness value. Often times this value will simply be set to zero in order to start measuring at 0.000”. The only time this value will be set to something other than zero, is if the user needs to zoom in even closer.
  • Page 54 Dakota Ultrasonics 2) Press the UP, DOWN, LEFT, and RIGHT arrow keys to scroll the highlighted value. 3) Alternatively , press the ENTER key to display the Digits Edit Box. 4) Press the UP and DOWN arrow keys to scroll the highlighted value.
  • Page 55 7.4 Gain The gain, or amplification of the return echoes, can be adjusted in the PR-8V to accommodate a variety of applications. The setting of the gain is crucial in order to obtain valid readings during the measurement process. Too much gain may result in erroneous measurements, by detecting o n noise rather than the actual material back wall itself.
  • Page 56 PR-8V into a high gain setting. In any case, the selectable gain settings offer the user some additional options to resolve application issues.
  • Page 57 PR-8V High Performance Thickness Gauge 7) Press the OK key to return to the measurement screen, or ESC to cancel entering the GAIN. The user can also access and adjust the gain from the tabbed menus. However, this method is more tedious than making the adjustments using the Hot Menus. The...
  • Page 58 Dakota Ultrasonics 9) Finally, press the MEAS key to return to the measurement screen and begin taking readings.

  • Page 59: Chapter Eight Thru Paint Measurement Technique

    The PR-8V can also be configure for thru paint applications by selecting a factory setup stored in the list of setups in the PR-8V. The name of the setup for the racing industry is “THRU-PAINT (RACING)”. Refer to page 79 for information on recalling a setup.

  • Page 60: Chapter Nine Additional Features Of The Pr-8V

    ADDITIONAL FEATURES OF THE PR-8V 9.1 High Speed Scan The High Speed Scan feature of the PR-8V increases the overall sample rate from the standard 4 measurements a second to 32 measurements a second. This feature enables a user to make scanned passes over an arbitrary length of the test material, while still maintaining a reasonable representation of thickness over the scanned area or region.
  • Page 61 PR-8V High Performance Thickness Gauge 9.2 Alarm Mode The Alarm Mode feature of the PR-8V provides the user with a method of setting tolerances, or limits, for a particular application requirement. This feature may be used for a variety of applications to verify the material is within the manufacturer specifications.
  • Page 62 Dakota Ultrasonics 1) Press the MENU key once to activate the menu items tab. Press the MENU key multiple times to tab right, and the ESC key multiple times to tab left, until the UTIL menu is highlighted and displaying the submenu items.
  • Page 63 PR-8V High Performance Thickness Gauge If only one limit will be used, press the MEAS key to return to the measurement screen and begin taking readings. Otherwise, continue on to set the ALARM HI LIMIT. Setting the Alarm HI Limit 1) Assuming the ALARM STATUS is ON,use the UP and DOWN arrow keys to scroll through the sub menu items until ALARM HI LIMIT is highlighted.
  • Page 64 Multiple grids can be created and stored until the PR-8V’s memory is full. If the user attempts to store a grid in the PR-8V when the memory is full, the PR-8V will respond with an error message indicating that the memory is unable to store the new grid.
  • Page 65 PR-8V High Performance Thickness Gauge Use the UP and DOWN arrow keys to scroll through the sub menu items until MEM is highlighted. Use the LEFT and RIGHT arrow keys to scroll the format options. Once the format is displayed, press the MEAS key to return to measurement mode.
  • Page 66 Dakota Ultrasonics 3) Press the ENTER key to display the new Grid Edit Box. 4) Use the UP and DOWN arrow keys to scroll through the new Grid List Items until NAME is highlighted. 5) Press the ENTER key to activate the Alpha Edit Box.
  • Page 67 PR-8V High Performance Thickness Gauge 1) Use the UP and DOWN arrow keys to scroll through the new Grid List Items until NOTE is highlighted. 2) Press the ENTER key to activate the Alpha Edit Box. 3) Use the UP, DOWN, LEFT, & RIGHT arrow keys to highlight the appropriate alpha characters.
  • Page 68 Dakota Ultrasonics 7) Press the OK key to save the Grid Note and return to the Grid List Items menu, or ESC to cancel entering the Grid Note. Setting the Coordinates of the Grid Note: A grid is defined by using coordinates to define the Top Left and the Bottom Right corners of the grid.
  • Page 69 PR-8V High Performance Thickness Gauge 1) Use the UP and DOWN arrow keys to scroll through the new Grid List Items until TOP LEFT is highlighted. 2) Press the ENTER key to activate the Coordinate Edit Box. 3) Use the LEFT, & RIGHT arrow keys to scroll the Columns, and the UP, DOWN arrow keys to scroll the Rows.
  • Page 70 “NOT ENOUGH MEMORY“ will be displayed. Press the OK or ESC key to return to the Grid List Items menu. It may be necessary to free some memory in the PR-8V at this time. Refer to page 71 for more information on Deleting a Grid .
  • Page 71 PR-8V High Performance Thickness Gauge Selecting the Auto Increment Direction The Auto Increment feature gives the user the ability to specify which direction to advance the cursor after storing a reading. 5) Use the UP and DOWN arrow keys to scroll through the new Grid List Items until INCR.
  • Page 72 Dakota Ultrasonics Saving a Grid Once all the parameters are set, the user has the option of saving or canceling the new grid. 1) Use the UP and DOWN arrow keys to scroll through the new Grid List Items until CREATE NEW GRID? is highlighted.
  • Page 73 PR-8V High Performance Thickness Gauge 3) Press the OK key to save the New Grid, or the ESC key to cancel the New Grid setup and return to the DATA menu. 4) Press the MEAS key to return to the measurement screen and begin storing readings.
  • Page 74 10.5 Viewing stored readings It is sometimes necessary to go back and view the stored readings and waveforms using the PR-8V without a PC. The following procedures outline this process: Viewing Stored Readings & B-Scans...
  • Page 75 PR-8V High Performance Thickness Gauge Note: In the photos above, the MEM format is set to GRID. However, if the ENGINE format was selected, the COL would change to CYL#, and the ROW would be displayed as CLK#. 1) Press the MEAS key once to activate measure menu items. Press the MEAS key multiple times to move right and the ESC key multiple times to move left until the COL or ROW cell is highlighted.
  • Page 76 Dakota Ultrasonics 1) Press the MENU key once to activate the menu items tab. Press the MENU key multiple times to tab right and the ESC key multiple times to tab left until the DATA menu is highlighted and displaying the submenu items.
  • Page 77 PR-8V High Performance Thickness Gauge 1) Press the MENU key once to activate the menu items tab. Press the MENU key multiple times to tab right and the ESC key multiple times to tab left until the DATA menu is highlighted and displaying the submenu items.
  • Page 78 Dakota Ultrasonics Editing a Grid 1) Press the MENU key once to activate the menu items tab. Press the MENU key multiple times to tab right and the ESC key multiple times to tab left until the DATA menu is highlighted and displaying the submenu items.
  • Page 79 PR-8V High Performance Thickness Gauge 5) Press the ENTER key to activate the Alpha Edit box – Only used when editing the NOTE. 6) Use the UP, DOWN, LEFT, & RIGHT arrow keys to highlight the appropriate alpha characters. 7) Press the ENTER key to select a character and advance to the next field of the Comments.
  • Page 80 10.8 Changing the active grid (File) - Open The user may have transferred grid templates from a PC to the PR-8V, or setup grids using the PR-8V at an earlier time. The name of the currently active grid is always displayed at the bottom of the Hot Menu Items in measurement mode (refer to photo below).
  • Page 81 PR-8V High Performance Thickness Gauge 1) Press the MENU key once to activate the menu items tab. Press the MENU key multiple times to tab right and the ESC key multiple times to tab left until the DATA menu is highlighted and displaying the submenu items.
  • Page 82 Dakota Ultrasonics 6) Press the OK key to load the grid from memory. 7) Press the MEAS key to return to the measure screen.

  • Page 83: Chapter Eleven Setups - Create, Store, Edit, & Recall

    11.2 Opening a Setup The PR-8V is loaded with a number of setups from the factory. These setups can be opened, edited, and saved to any one of 64 setup locations. If a factory setup is written over, the user can simply reload the default factory setups at anytime using the utility software included with the PR-8V.
  • Page 84 Dakota Ultrasonics Opening a Setup 1) Press the MENU key once to activate the menu items tab. Press the MENU key multiple times to tab right and the ESC key multiple times to tab left until the SETUP menu is highlighted and displaying the submenu items.
  • Page 85 7) Press the MEAS key to return to the measure screen. 11.3 Saving a Setup Once the PR-8V parameters and features have be adjusted for an application, the user may elect to save these setting to a specific setup location for future use. This can potentially save time and reduce error between users.
  • Page 86 Dakota Ultrasonics 1) Press the MENU key once to activate the menu items tab. Press the MENU key multiple times to tab right and the ESC key multiple times to tab left until the SETUP menu is highlighted and displaying the submenu items.
  • Page 87 PR-8V High Performance Thickness Gauge When the parameter to edit is highlighted, press the ENTER key to activate the Alpha Edit Box. Use the UP, DOWN, LEFT, and RIGHT arrow keys to scroll through the characters, the ENTER key to select characters, and the CLR key to backspace through the characters, until the Name or Note fields have been edited.
  • Page 88 Save Setup function can also be considered an Edit Function. 11.4 Using the Default Setup The default setup feature was added to the PR-8V to use, as a last resort, if there are no setups stored in the gauge –factory or otherwise. The only time this might...
  • Page 89 PR-8V High Performance Thickness Gauge Important Note: Remember to perform a probe zero function prior to measuring. The default setup clears the probe zero value. Press the OK key to return to the measurement screen.

  • Page 90: Chapter Twelve Using The Utility Software

    You should have 40 megabytes of free disk space before attempting to install PR-8Vsonicview or PR-8Vview. PR-8Vsonicview or PR-8Vview requires an available communications port in order to transfer data to and from the PR-8V. PR-8Vsonicview or PR-8Vview supports COM1, COM2, COM3, and COM4. USB to Serial Converter Some newer laptop computers do not have standard serial ports.

  • Page 91: Appendix A - Velocity Table

    APPENDIX A - VELOCITY TABLE Material sound velocity sound velocity in/us Aluminum 0.2510 6375 Beryllium 0.5080 12903 Brass 0.1730 4394 Bronze 0.1390 3531 Cadmium 0.1090 2769 Columbium 0.1940 4928 Copper 0.1830 4648 Glass (plate) 0.2270 5766 Glycerine 0.0760 1930 Gold 0.1280 3251 Inconel...
  • Page 92 Dakota Ultrasonics 0.1310 3327 Titanium 0.2400 6096 Tungsten 0.2040 5182 Uranium 0.1330 3378 Water 0.0580 1473 Zinc 0.1660 4216 Zirconium 0.1830 4648...

  • Page 93: Appendix B - Setup Library

    APPENDIX B - SETUP LIBRARY Name Comment 1 Gn/AGC Velocity STEEL BASIC ¼” 5MHZ 0.2330 in/uSec STEEL THRU PNT STD ¼ 5MHZ HD 0.2330 in/uSec STEEL THRU PNT EXT ½ 3MHZ HD 0.2330 in/uSec THRU-PAINT (RACING) ¼” 5MHZ 0.2330 in/uSec CAST IRON (BASIC) ½"...
  • Page 94 MATERIAL SAFETY DATA SHEET N/A = not applicable or not available (To comply with 29 CFR 1910.1200) SECTION 1 – PRODUCT IDENTIFICATION NFPA Hazardous Materials Product Name: SOUNDSAFE® Identification System (est) Generic Name: Ultrasonic Couplant Health……………………0 Manufacturer: Sonotech, Inc. Flammability…………….0 774 Marine Dr., Bellingham, WA 98225 Reactivity………………..0 (360) 671-9121...
