Summary of Contents for Sonero X-AVT100

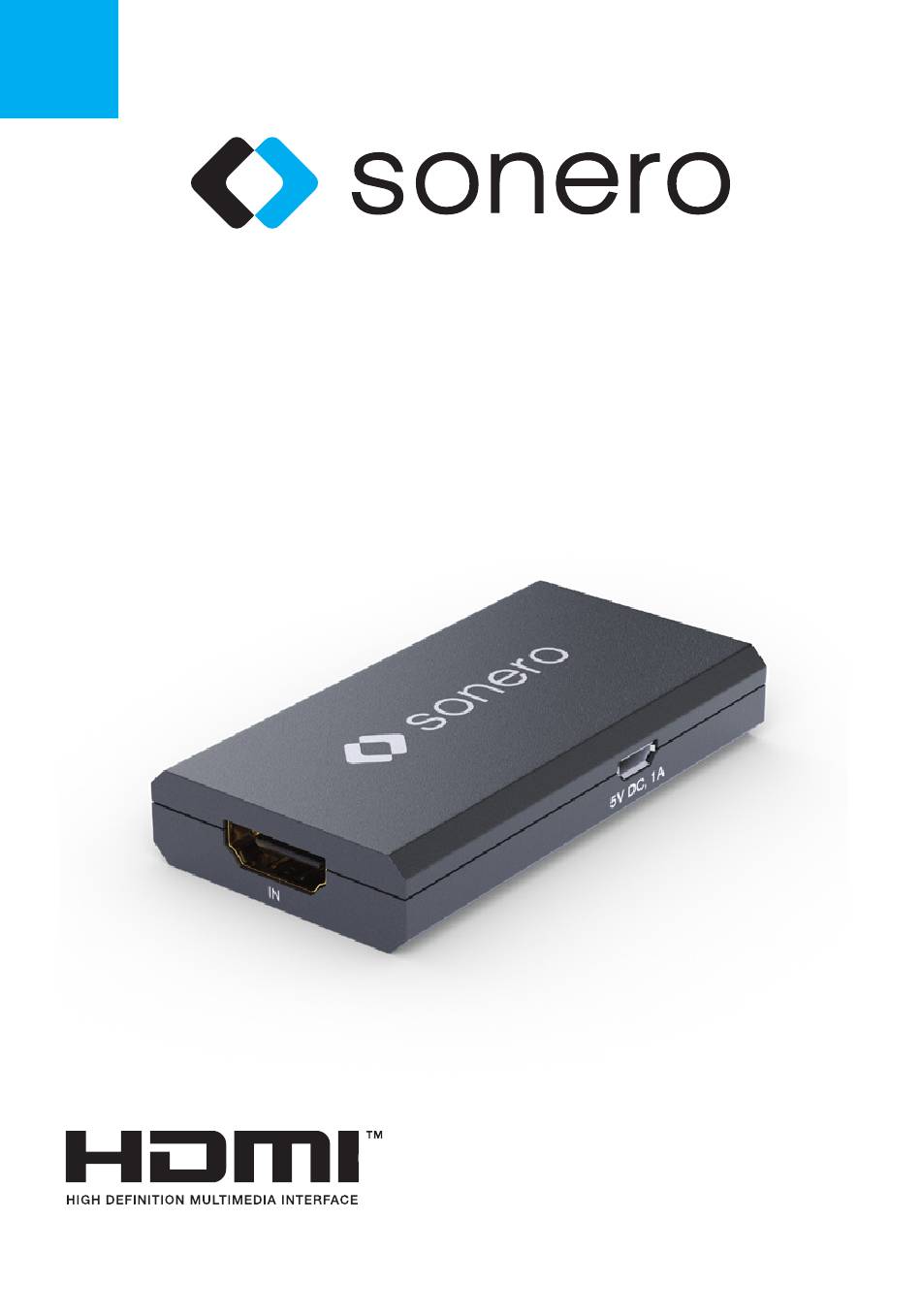

- Page 1 BIDIRECTIONAL HDCP CONVERTER INSTRUCTION MANUAL X-AVT100 Version: 2018-06-06...
-
Page 2: Table Of Contents
TABLE OF CONTENT Introduction Intended Use Safety Instruction Delivery Contents Features Specifications Connection Plan Interface Operation Maintenance Cleaning Warranty and Liability CE Conformity Disposel of the Device FCC compliance statement Disclaimer - 2 -... -
Page 3: Introduction

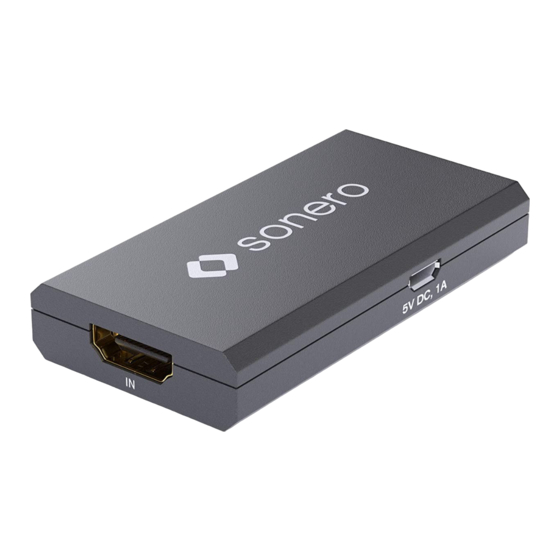

INTRODUCTION The Bidirectional HDCP Converter is the ideal solution to overcome problems relating to HDCP , specifically ones with a mix of old and new HDCP versions This small inline unit features a HDCP Engine that can upgrade from v1.4 to v2.2 or downgrade v2.2 to v1.4 depending on your requirements. -
Page 4: Safety Instruction
SAFETY INSTRUCTION Read the operating instructions carefully and especially observe the safety information. If you do not follow the safety instructions and information on proper handling in this manual, we assume no liability for any resulting personal injury or damage to property. Such cases will invalidate the warranty/guarantee. -
Page 5: Delivery Contents
DELIVERY CONTENTS 1x Bidirectional HDCP Converter 1x Micro USB Cable, Length: 0.80m 1x Instruction Manual FEATURES HDCP v2 2 to v1 4 Conversion HDCP v1 4 to v2 2 Conversion HDMI 2 0 18G pass-through up to 4k 60Hz 4:4:4 8bit Provides HDMI Jitter Cleaning on the signal path SPECIFICATIONS Product Size in mm: 70x37x12mm... -
Page 6: Connection Plan
CONNECTION PLAN HDMI IN Micro USB HDMI OUT - 6 -... -
Page 7: Interface
INTERFACE 5V DC, 1A PureLink GmbH MODEL NO.: X-AVT100 Von-Liebig-Str. 10 D-48432 Rheine CHARGE NO.: XXXX - 7 -... -
Page 8: Operation
OPERATION The Bidirectional HDCP Converter will convert either HDCP v1.4 to HDCP v2 2 or HDCP v2 2 to v1 4 If both devices have the same HDCP version then the unit will operate in a pass through mode. To use simply connect a HDMI cable from your source to the input and a HDMI cable from the output to the display A USB Micro-B port is provided if your source does not provide enough power. -
Page 9: Warranty And Liability
Do not use any aggressive cleaning agents, rubbing alcohol or other chemical solutions as they can cause damage to the housing or cause malfunctions To clean the product, use a soft, dry cloth Do not apply too much pressure to the housing as this may cause scratch marks You can easily remove dust using a soft bristled brush WARRANTY AND LIABILITY The manufacturer guarantees full statutory warranty terms on all new... -
Page 10: Ce Conformity
CE CONFORMITY PureLink GmbH hereby declares that this product X-AVT100 complies with Directive 2014/30/EU. The full text of the EU Declaration of Conformity is available at the following Internet address: www.purelink.de/ce/4251364709771_CE.pdf DISPOSEL OF THE DEVICE WEEE-Reg No : DE 93 847 290... - Page 11 Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules These limits are designed to provide reasonable protection against harmful interference in a residential installation This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
-
Page 12: Disclaimer
All rights reserved We reserve our right for misprints and changes to the device, packaging or user manual HDMI is a registered trademark of HDMI Licensing Administrator, Inc ® Sonero ® PureLink GmbH Von-Liebig-Straße 10 D-48432 Rheine info@purelink de www.purelink.de...
