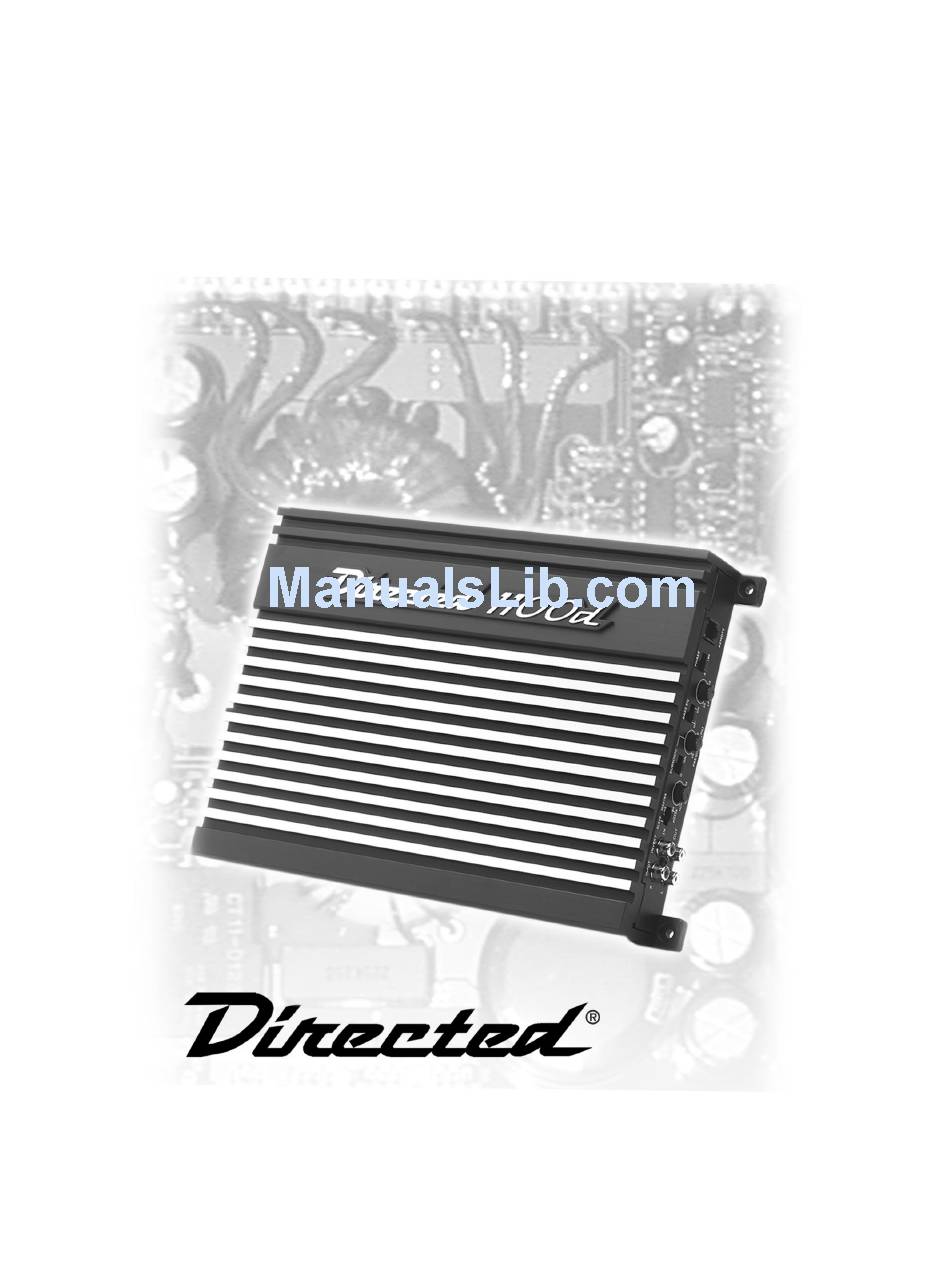

Page 1 OWNER’S MANUAL Models 600d/1100d...
Page 2 Your Directed Audio power amplifier comes with a two year limited warranty if it is installed by an authorized DEI dealer. Amplifiers not installed by an authorized Directed dealer are covered by a one year parts- and-labor limited warranty. Please save...
Page 3: Table Of Contents
TABLE OF CONTENTS Installation Guidelines ......Page 2 Amplifier Connections ......Page 4 Amplifier Controls .
Page 4: Installation Guidelines
INSTALLATION GUIDELINES 1. Please read the owner’s manual carefully before you install the amplifier. 2. Disconnect the battery ground terminal prior to making any elec- trical connections. 3. Check for any hazards or obstruc- tions such as gas tanks, fuel or brake lines, and wiring harnesses before mounting the amplifiers.
Page 5 INSTALLATION GUIDELINES (continued) is generated. For low impedance speaker applications or restricted ventilation installations, an external cooling fan may be advisable. 9. Your connections to the amplifier’s speaker and power terminals should be made with crimped spade lugs, and the battery and ground connections to the vehicle should be made with crimped ring terminals of the appropriate size...
Page 6: Amplifier Connections
AMPLIFIER CONNECTIONS Refer to Figure 1 for details. 1. GROUND TERMINAL - connect this terminal to the car chassis with a short heavy gauge wire, DO NOT CONNECT TO THE NEGATIVE TERMINAL OF THE CAR BATTERY or to factory chassis ground points already occu- pied by factory wires! Make sure your chassis connection is secure by removing any paint at the ground...
Page 7: Amplifier Controls
200 mV to 8 volts. 2. RCA INVERT IN JACK - use this jack to accept signal from another 600d/1100d when operating in synced slave mode. This jack also supplies an in-phase output when the unit is set to “Master”.
Page 8: Speaker Wiring Diagrams
SPEAKER WIRING DIAGRAMS Single subwoofer connection Speaker nominal impedance must be at least 1 ohm. Two subwoofer connection Parallel speaker nominal impedance must be at least 1 ohm. Amplifier parallels the speaker terminals internally. © 1999 Directed Electronics, Inc...
Page 9: Crossover Setting And Gain Adjustment
Refer to the additional instructions on pages - for gain and crossover settings in external synced mode. • Because the 600d/1100d are only suited for subwoofer applications, the low-pass crossover is active at all times. The crossover point is adjustable to allow more precise system operation.
Page 10: Synced Gain Operation
SYNCED GAIN OPERATION (control panel/inputs) Refer to Figure 3 for details. 1. Master/Slave switch - set switch on the first amp to Master/0 for most systems. Set switch to Master/180 to invert the phase of both the master and any synced amplifiers. Set the Master/Slave switch on all synced amplifiers to Slave.
Page 11 SYNCED GAIN OPERATION (wiring diagram) Refer to Figures 3 and 4 for details. 6. Remote sub level - connect a single remote sub level control to each amplifier using a telephone cable splitter as shown in Figure 3. 7. The master amplifier’s gain control (Figure 3) is used to set the overall sub amp gain.
Page 12: External Synced Bridged Operation
EXTERNAL SYNCED BRIDGED OPERATION(control panel/inputs) Refer to Figure 5 for details. 1. Master/Slave switch - set switch on the first amp to Master/0 for most systems. Set switch to Master/180 to invert the phase of both the master and any synced amplifiers.
Page 13 EXTERNAL SYNCED BRIDGED OPERATION (wiring diagram) Refer to Figures 5 and 6 for details. 6. Remote sub level - connect a single remote sub level control to each amplifier using a telephone cable splitter as shown in Figure 5. 7. The master amplifier’s gain control (Figure 5) is used to set the overall sub amp gain.
Page 14: Specifications
RMS continuous power driven into 4 ohms from 20 to 250 Hz @ 14.4 VDC in synced bridge mode (two 600d) RMS continuous power driven into 2 ohms from 20 to 250 Hz @ 14.4 VDC in synced bridge mode (two 1100d) Signal-to-Noise Ratio Frequency Response...
Page 15: Limited Two-Year Consumer Warranty
DEI dealer. During this two year period, there will be no charge for this replacement PROVIDED the unit is returned to DEI, shipping pre-paid. If the unit is installed by anyone other than an autho- rized DEI dealer, the warranty period will be...
Page 16 • POWER CAPACITORS • GOLD-PLATED POWER DISTRIBUTION AND FUSING BLOCKS • GOLD-PLATED POWER AND SPEAKER TERMINALS Always use a © 1999 Directed Electronics, Inc • Vista, CA 92083 • All Rights Reserved DEI is a proud member of G45014 9/99...
