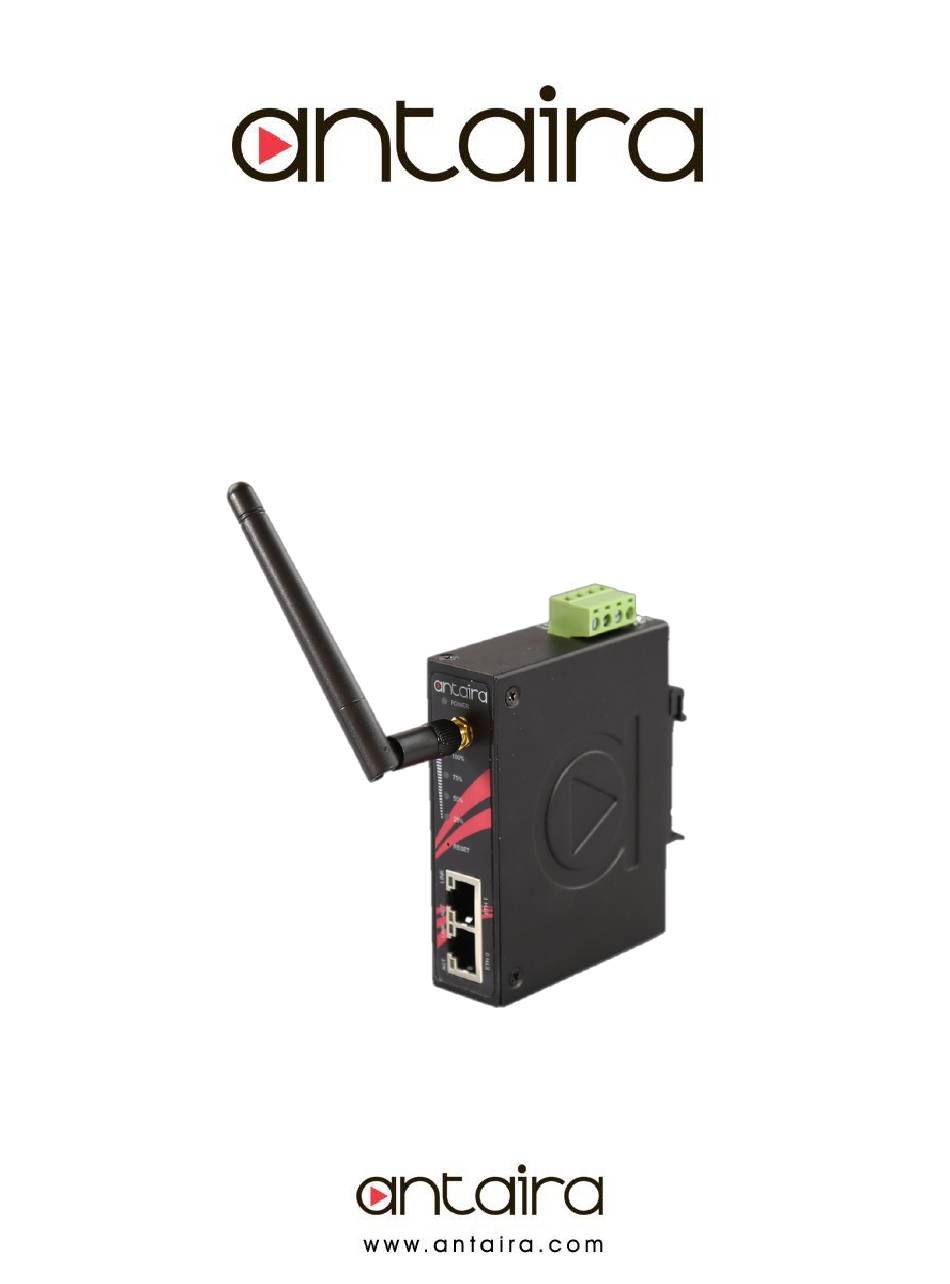

- Page 1 Industrial Wireless Access Point Hardware User's Manual – AMS-2111 AMS-2111 Series Industrial IEEE 802.11 b/g/n 2.4GHz Wireless AP/Client/Bridge/Repeater Version 1.0 (October 2018) User Manual...
- Page 2 Trademark Information Antaira is a registered trademark of Antaira Technologies, LLC., Microsoft Windows and the Windows logo are the trademarks of Microsoft Corp. All other brand and product names are trademarks or registered trademarks of their respective owners.
- Page 3 This is a Class-A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. Industrial Ethernet Wireless APs Hardware User Manual This manual supports the following models: • AMS-2111 • AMS-2111-T Please check our website (www.antaira.com) for any updated manual or contact us by e-mail (support@antaira.com).
-
Page 4: Table Of Contents
Industrial Wireless Access Point Hardware User's Manual – AMS-2111 Table of Contents 1. Overview ..............1 1.1 Key Features ............. 1 1.2 Package Contents ..........1 1.3 Safety Precaution ..........2 2. Hardware Description ..........3 2.1 Physical Dimensions ......... 3 2.2 Front Panel ............ -
Page 5: Overview
Based on IEEE 802.11 b/g/n, the access point supports high-speed data transmission of up to 150MBps. The AMS-2111 series is capable of operating in different modes, which makes it suitable for a wide variety of wireless applications including long-distance deployments. The unit also allows the user to position the wireless antenna in a better signal-broadcasting location for improved wireless coverage and signal strength or simply in a more convenient location. -
Page 6: Safety Precaution
Industrial Wireless Access Point Hardware User's Manual – AMS-2111 1.3 Safety Precaution Attention If the DC voltage is supplied by an external circuit, please use a protection device on the power supply input. Supply by UL Listed industrial use power. The industrial wireless AP’s (access point) hardware specs, ports, cabling information, and wiring installation will be described within this user manual. -
Page 7: Hardware Description
Industrial Wireless Access Point Hardware User's Manual – AMS-2111 2. Hardware Description 2.1 Physical Dimensions Figure 2.1, below, shows the physical dimensions of AMS-2111 series. (W x H x D) is 26mm x 95mm x 75mm Figure 2.1 Physical Dimensions... -
Page 8: Front Panel

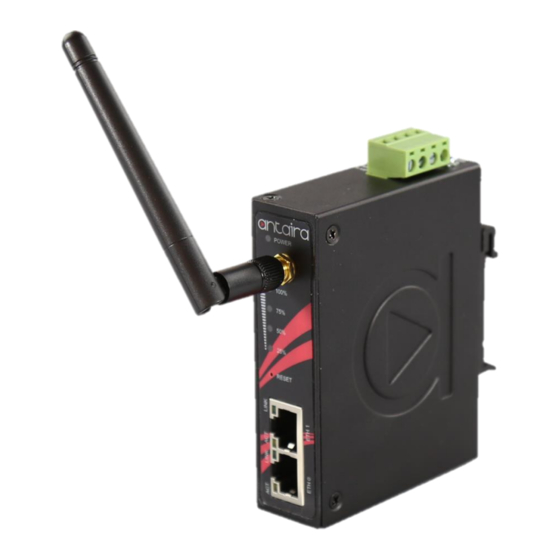

Industrial Wireless Access Point Hardware User's Manual – AMS-2111 2.2 Front Panel The front panel of the AMS-2111 series can be seen below (Figure 2.2). Grounding Screw (behind) 4-Pin Removal Terminal Block (Power Input) LED for Power SMA Antenna connector... -
Page 9: Led Indicators
Industrial Wireless Access Point Hardware User's Manual – AMS-2111 2.3 LED Indicators There are LED light indicators located on the front panel of the industrial wireless AP that displays the network, power, and wireless status. Each LED indicator has its own specific meaning, see below in Table 2.3. -
Page 10: Ethernet Ports
Industrial Wireless Access Point Hardware User's Manual – AMS-2111 2.4 Ethernet Ports ◼ RJ-45 Ports RJ-45 Ports (Auto MDI/MDIX): The RJ-45 port is auto-sensing for 10/100Base-Tx or 1000Base-Tx device connections. Auto MDI/MDIX means that the wireless AP can connect to another switch or workstation without changing the straight-through or crossover cabling. -
Page 11: Cabling
Industrial Wireless Access Point Hardware User's Manual – AMS-2111 2.6 Cabling ◼ Twisted-pair segments can be connected with an Unshielded Twisted Pair (UTP) or Shielded Twisted Pair (STP) cable. The cable between the equipment and the link partner (wireless AP, switch, hub, workstation, etc.) must be less than 100 meters (328 ft.) long. -
Page 12: Grounding Note
Industrial Wireless Access Point Hardware User's Manual – AMS-2111 2.8 Grounding Note Grounding and wire routing help limit the effects of noise due to electromagnetic interference (EMI). Run the ground connection from the ground screw to the grounding surface prior to connecting devices. The grounding screw symbol is shown blow in Figure 2.9. - Page 13 Industrial Wireless Access Point Hardware User's Manual – AMS-2111 Follow the steps below to learn how to hang the industrial wireless AP. 1. Use the screws to install the DIN-Rail bracket on the rear side of the industrial wireless AP. Caution: The torque for tightening the screws on the device is 3.5 in-lbs.
-
Page 14: Wall Mounting
Industrial Wireless Access Point Hardware User's Manual – AMS-2111 5. Check if the bracket is mounted tightly on the rail. 6. To remove the industrial wireless AP from the rail, do the opposite from the above steps. 3.2 Wall Mounting Follow the steps below to mount the industrial wireless AP using the wall mounting bracket as shown below in Figure 3.4. - Page 15 Industrial Wireless Access Point Hardware User's Manual – AMS-2111 Below, in Figure 3.5, are the dimensions of the wall mounting bracket. Figure 3.5 Wall Mounting Bracket Dimensions...
-
Page 16: Hardware Installation
Hardware User's Manual – AMS-2111 4. Hardware Installation 4.1 Installation Steps This section will explain how to install Antaira Technologies’ AMS-2111 series. Caution: 1. This device is intended for indoor use and at altitudes up to 2000 meters. 2. This device is intended to be installed in an industrial control enclosure and panel. - Page 17 • Clean the device with dry soft cloth Antaira Customer Service and Support (Antaira US Headquarter) + 844-268-2472 (Antaira Europe Office) + 48-22-862-88-81 (Antaira Asia Office) + 886-2-2218-9733 Please report any problems to Antaira: www.antaira.com support@antaira.com www.antaira.eu info@antaira.eu www.antaira.com.tw info@antaira.com.tw...
