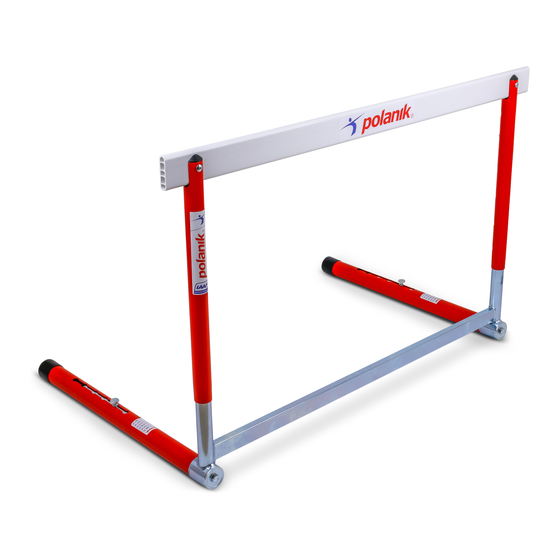

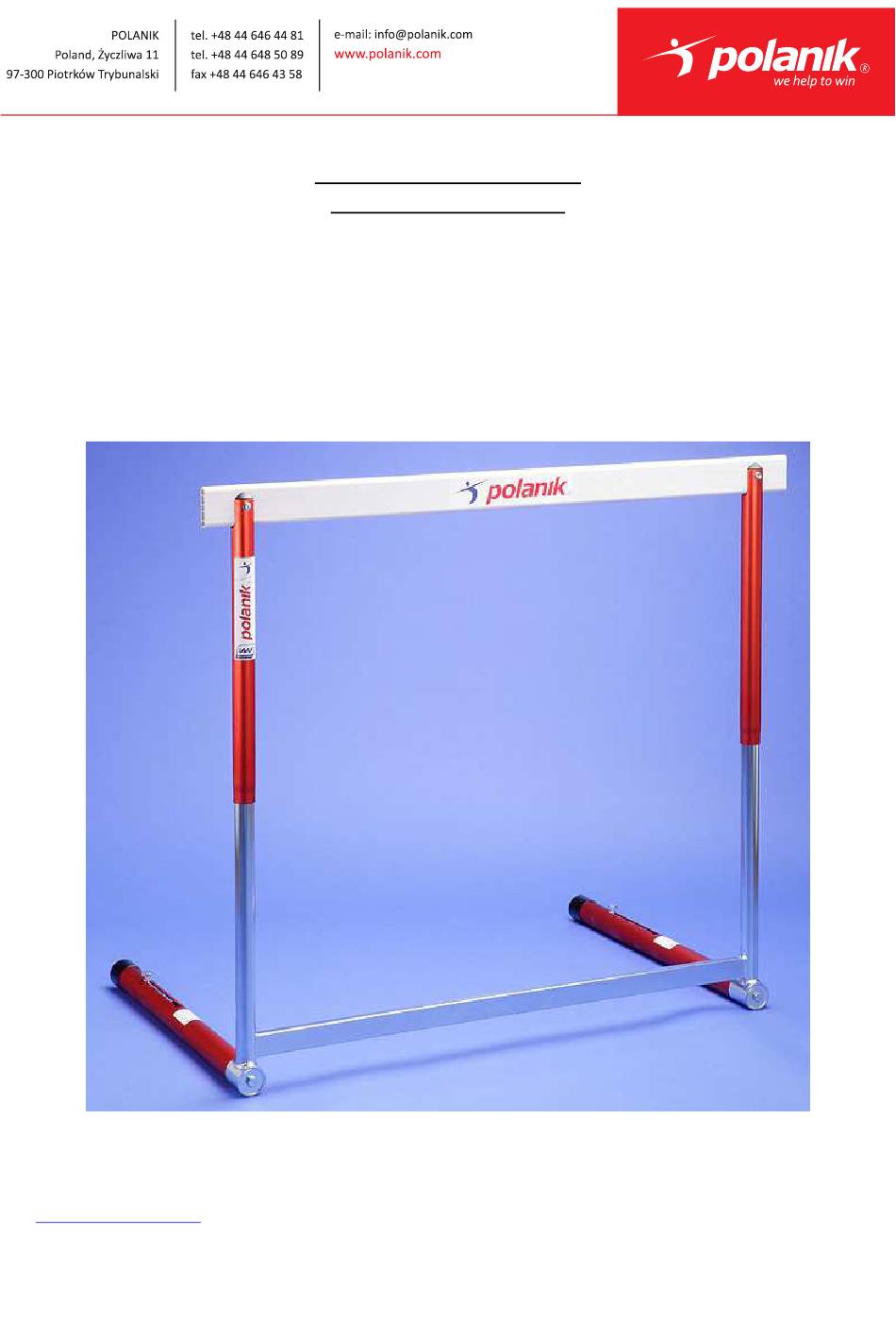

- Page 1 TECHNICAL SPECIFICATION INSTRUCTION MANUAL Competition steel-aluminium collapsible hurdle PP-171 PP-171/6a PP-171/6b PP-171/6c File: 2015-09-17 PRODUCT SUPPORT Pawel Ciechanowski p.ciechanowski@polanik.com...
- Page 2 • IAAF certificates (PP-171 and PP-171/6a only) PP-171 © 2015 Polanik Sp. z o. o. The producer reserves the right to introduce without warning changes in product constructions and colours. Tech. specification and instruction manual PP-171 PP-171/6a 6b 6c...
- Page 3 Heights [mm] 1000 1000 1067 1067 1067 1067 Weight [kg] *There may be differences in hue between the telescope tubes and the hurdle feet. Tech. specification and instruction manual PP-171 PP-171/6a 6b 6c 3 / 13...
- Page 4 25 pcs length Dim. [cm] width height Volume m 0,96 Gross weight [kg] frames with telescope tubes and top boards mounted box with hurdle feet box with foot screws Tech. specification and instruction manual PP-171 PP-171/6a 6b 6c 4 / 13...
- Page 5 (item 2) to the hurdle frame (item 1) by means of the foot screw (item 4) and the washer (item3), d) install the other foot in the same way. Tech. specification and instruction manual PP-171 PP-171/6a 6b 6c 5 / 13...
- Page 6 The main goal of the hurdle collapsible construction is to assure easy and cheap transport. Note that once you screw the feet down, the hurdle is practically non-dismountable. Therefore we do not recommend unscrewing the hurdle feet during idle periods. Removing the feet without proper tools can cause serious hurdle damages which Polanik shall not be liable for.
- Page 7 Tech. specification and instruction manual PP-171 PP-171/6a 6b 6c 7 / 13...
- Page 8 Before you begin the maintenance work, you should gather the following items: hurdle foot plastic plug for PP-171 (2 pcs for each hurdle) code: S-0008-001-00-00-05, grease (approx. 50g for each foot), wrench 19, hex key 5.
- Page 9 – they may fall out , and remove the bolt M6, Foot catch bolt Hurdle foot Spring Counterweight Foot plastic plug Bolt M6 g) take out the balls from their sockets, Tech. specification and instruction manual PP-171 PP-171/6a 6b 6c 9 / 13...
- Page 10 Tech. specification and instruction manual PP-171 PP-171/6a 6b 6c 10 / 13...
- Page 11 VII. IAAF Certificates Tech. specification and instruction manual PP-171 PP-171/6a 6b 6c 11 / 13...
- Page 12 Tech. specification and instruction manual PP-171 PP-171/6a 6b 6c 12 / 13...
- Page 13 VIII. Declaration 1) No. 2012-03-26 2) Issuer’s name: POLANIK Sp. z o. o. Issuer’s address: Zyczliwa 11, 97-300 Piotrkow Tryb. 3) Object of declaration: Description of goods Code Competition collapsible hurdle PP-171/6b Competition collapsible hurdle PP-171/6c 4) The object of declaration described above is in conformity with the requirements of the following documents:...
