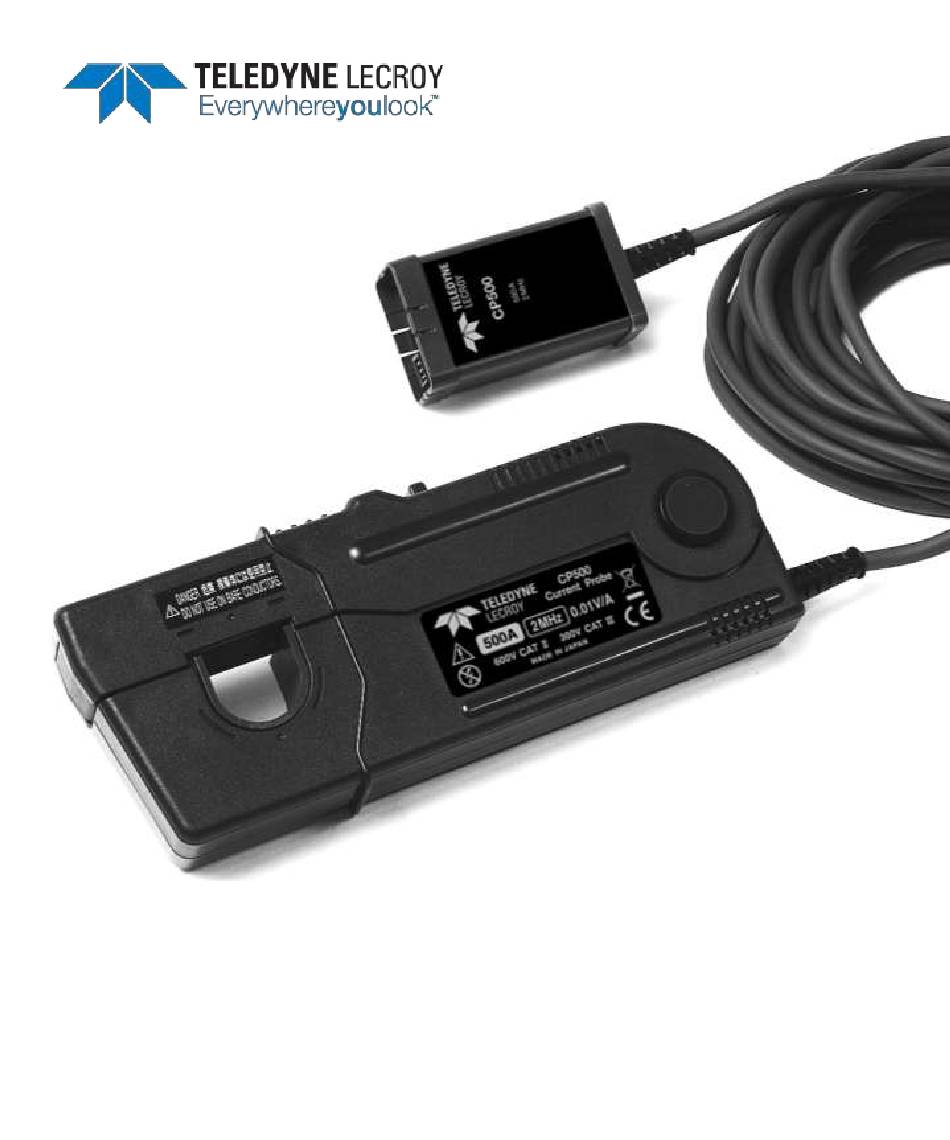

- Page 1 Instruction Manual CP500 Current Probe...
- Page 3 CP500 Current Probe Instruction Manual January 2013...
- Page 4 Spare parts, replacement parts and repairs are warranted for 90 days. In exercising its warranty, Teledyne Lecroy, at its option, will either repair or replace any assembly returned within its warranty period to the Customer Service Department or an authorized service center. However, this will be done only if the product is determined by Teledyne Lecroy’s examination to be defective due to workmanship or...
-
Page 5: Table Of Contents
Precautions ................................4 Connecting the Probe to the Test Instrument ......................4 Connecting the Probe to the Test Circuit ........................4 Operation with a Teledyne LeCroy Oscilloscope ...................... 5 Bandwidth Limit ................................. 5 AC Coupling ................................5 Auto Zero .................................. 5 Degauss Probe ................................. - Page 6 Environmental Compliance ............................. 21 End-Of-Life Handling ............................21 Restriction of Hazardous Substances (RoHS) ....................21 Contact Teledyne LeCroy ............................. 22 Appendix A ................................... 23 Performance Verification Test Record ........................23 Equipment Used ..............................23 CP500 Test Record ..............................23 922176-00 Rev A...
-
Page 7: Safety Instructions
Instruction Manual Safety Instructions This section contains instructions that must be observed to keep this oscilloscope accessory operating in a correct and safe condition. You are required to follow generally accepted safety procedures in addition to the precautions specified in this section. The overall safety of any system incorporating this accessory is the responsibility of the assembler of the system. -
Page 8: Operating Environment
To avoid short circuits and accidents that could result in injury or death, use the CP500 current probe only with conductors carrying 600 V (CAT II) or 300 V (CAT III) or less. ... -
Page 9: Overview
The probe can be used with a WaveRunner, WavePro, or LC series oscilloscope with firmware 4.3.0.0 or higher. With the ProBus interface, the CP500 becomes an integral part of the oscilloscope. The bandwidth limit, auto zero and degauss functions are all controlled from the oscilloscope’s graphical user interface. -
Page 10: Operation
1 MΩ and activate the probe control functions in the user interface. Connecting the Probe to the Test Circuit The CP500 has been designed with a movable split core, eliminating the need to break the conductor for the core to slip around the conductor. -
Page 11: Operation With A Teledyne Lecroy Oscilloscope
CP500 dialog. AC Coupling DC, Ground or AC coupling can be selected through the CP500 dialog. AC coupling occurs at the input of the oscilloscope and not at the probe input. When using the CP500 in the AC coupling mode and measuring AC signals with a DC component, care must be taken to assure that the dynamic range of the probe will not be exceeded. -
Page 12: Insertion Impedance
CP500 Current Probe An Auto Zero is automatically performed as part of the degauss cycle. NOTE: Never install or remove the probe on bare conductors which are energized. The transformer core and shield are grounded but not insulated and may contact the conductor when the locking lever is open. -
Page 13: Care And Maintenance
Instruction Manual Figure 2. Insertion Impedance B In a closed loop AC/DC current probe, the magnetizing inductance term drops out because the bucking coil prevents the core from being magnetized (Figure 2). In addition to the impedance resulting from probe insertion, any loop wire added to the conductor to gain access to the conductor will increase the total impedance of the conductor. -
Page 14: Service Strategy
CP500 Current Probe Service Strategy Defective probes must be returned to a Teledyne Lecroy service facility for diagnosis and exchange. A defective probe under warranty will be replaced with a factory refurbished probe. A probe that is not under warranty can be exchanged for a factory refurbished probe. A modest fee is charged for this service. -
Page 15: Returning A Defective Probe
5. Package the probe case in a cardboard shipping box with adequate padding to avoid damage in transit. 6. Mark the outside of the box with the shipping address given to you by the Teledyne Lecroy representative; be sure to add the following: •... -
Page 16: Performance Verification
CP500 Current Probe Performance Verification This procedure can be used to verify the warranted characteristics of the CP500 Current Probe. The recommended calibration interval for the model CP500 Current Probe is one year. The complete performance verification procedure should be performed as the first step of annual calibration. -
Page 17: Preliminary Procedure
1. Connect the CP500 to the channel 1 input of the oscilloscope and completely close the probe locking lever. 2. Turn the oscilloscope on and allow at least 30 minutes warmup time for the CP500 and test equipment before performing the Verification Procedure. -
Page 18: Check Lf Accuracy
CP500 Current Probe 7. Degauss the probe by touching DEGAUSS (on the CP500 dialog), then OK. 8. Verify that “Degaussing CP500 probe...” is displayed at the top of the screen and no error message remains displayed. Check LF Accuracy Figure 3. LF Accuracy Test set up. -
Page 19: Adjustment Procedure
Instruction Manual 7. Open the CP500 locking lever and position the probe input around the 500 Turn loop. Close and LOCK the locking lever. 8. Adjust the Function generator voltage until the voltage measured at the ’Current Sense’ terminals (DMM #2) reads 50 mV ±0.05 mV. (This corresponds to 500 A at the probe head). -
Page 20: Preliminary Procedure
2. Connect the CP500 compensation board to the channel 1 input of the oscilloscope through the ProBUS extension cable, and close and lock the probe jaws. 3. Turn the oscilloscope on and allow at least 30 minutes warmup time for the CP500 and test equipment before performing the Verification Procedure. -
Page 21: Adjust Lf Accuracy
6. With the CP500 removed from any signal and the lever returned to the LOCKED position, degauss the probe by touching DEGAUSS (on the CP500 dialog), then OK. 7. Open the CP500 jaws and position the probe input around the 500 Turn loop. Close and LOCK the lever. -
Page 22: Specifications
CP500 Current Probe 9. Adjust variable resistor VR202 on the PCB until the voltage measured on DMM #1 is as close to 10X the voltage measured on DMM #2. 10. Verify that the measured voltage is between 0.495 V and 0.505 V. -
Page 23: Typical Characteristics
Instruction Manual Typical Characteristics Typical characteristics describe parameters which do not have guaranteed performance; however are representative of the average performance from a sample of several probes. Tests for typical characteristics are not provided in the Performance Verification procedure. Sensitivity* 200 mA/div* to 200 A/div. -
Page 24: Physical Characteristics
CP500 Current Probe Physical Characteristics Dimensions Probe Length 176 mm (6.9 inch) Width 27 mm (1.1 inch) Height 69 mm (2.7 inch) Dimensions Compensation Box Length 65 mm (2.6 inch) Width 39 mm (1.5 inch) Height 24 mm (0.9 inch) Weight 650 g (22.9 oz.) -
Page 25: Graphs
Instruction Manual Graphs Figure 5. Maximum input current vs. frequency. Figure 6. Insertion impedance vs. frequency. 922176-00 Rev A... -
Page 26: Certifications
CP500 Current Probe Certifications This section contains the instrument’s Electromagnetic Compatibility (EMC), Safety and Environmental certifications. EMC Compliance EC Declaration of Conformity - EMC The probe meets intent of EC Directive 2004/108/EC for Electromagnetic Compatibility. Compliance was demonstrated to the following specifications as listed in the Official Journal of the European... -
Page 27: Safety Compliance
Many countries prohibit the disposal of waste electronic equipment in standard waste receptacles. For more information about proper disposal and recycling of your Teledyne LeCroy product, please visit teledynelecroy.com/recycle. Restriction of Hazardous Substances (RoHS) This instrument has been classified as Industrial Monitoring and Control Equipment, and is outside the scope of the 2011/65/EU RoHS Directive until 22 July 2017 (per Article 4, Paragraph 3). -
Page 28: Contact Teledyne Lecroy
Ph: 800-909-7112 / 408-653-1260 customersupport@teledynelecroy.com psgsupport@teledynelecroy.com European Headquarters Singapore, Oscillosocpes Teledyne LeCroy SA Teledyne LeCroy Singapore Pte Ltd. 4, Rue Moïse Marcinhes Blk 750C Chai Chee Road #02-08 Case postale 341 Technopark @ Chai Chee 1217 Meyrin 1 Singapore 469003... -
Page 29: Performance Verification Test Record
Performance Verification Test Record Photocopy this page and record the results of measurements made during the performance verification of the CP500 Current Probe on the copy. File the completed record as required by applicable internal quality procedures. The sections in the test record correspond to the parameters tested in the performance verification procedure. - Page 30 CP500 Current Probe 922176-00 Rev A...
